UV irradiation equipment (HGUV-365-59-150-400-AC)
Large-format UV parallel light source, customizable size and irradiation intensity according to customer needs, single light source or mixed light source, and can also exist in a modular or independent system form, providing supporting detection functions (such as platform positioning, light intensity, reflectivity, temperature, exposure time, etc.) and rich software functions (such as switching between different operating system levels, as well as remote and local control), suitable for different customer needs.
Save to Favorites
Overview

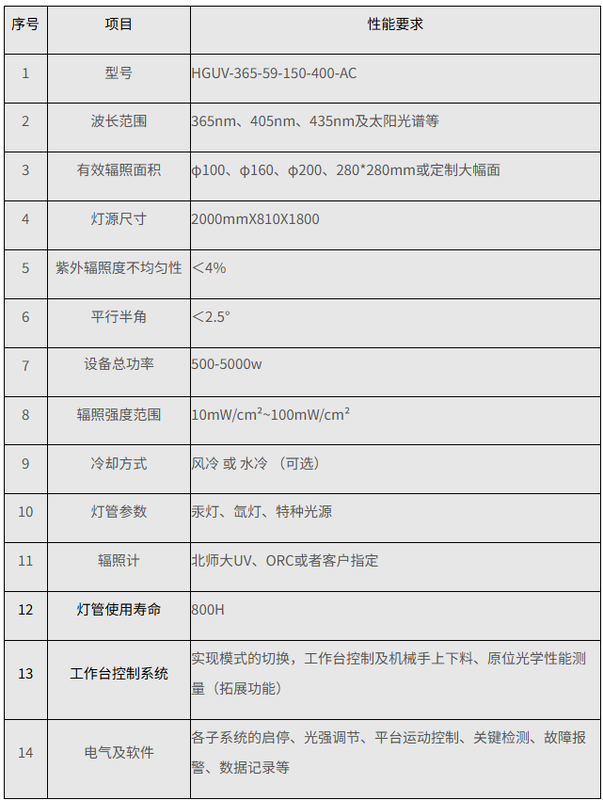

Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 365 nm, 405 nm, 435 nm and solar spectrum, etc. |
| Effective irradiation area [or custom large format] | φ100 mm, φ160 mm, φ200 mm, 280 mm *280 mm or custom large format |
| Light source size | 2000 mm × 810 mm × 1800 mm |
| UV irradiance non-uniformity | <4 % |
| collimation half-angle | <2.5 ° |
| Total equipment power | 500-5000W |
| Irradiation intensity range | 10 mW/cm²~100 mW/cm² |
| Cooling method [Optional] | Air-cooled or water-cooled (optional) |
| Lamp parameters | Mercury lamp, xenon lamp, special light source |
| Radiometer [or customer specified] | BNU UV, ORC or customer specified |
| Lamp tube service life | 800H |
| Workbench control system [Extended function] | Realizes mode switching, workbench control and manipulator loading/unloading, in-situ optical performance measurement (extended function) |
| Electrical and software | Start/stop of each subsystem, light intensity adjustment, platform motion control, key detection, fault alarm, data recording, etc. |
