Solar simulator (NJSS-365-100-200-AC)

Solar simulator (NJSS-365-100-200-AC)

Supplier
Wave-optics
Part Number
NJSS-365-100-200-AC
Category
Solar Systems
Origin
China

The basic principle of a solar simulator is to use artificial light sources to simulate solar radiation, in order to overcome the shortcomings of solar radiation being affected by time and weather and the total irradiance being non-adjustable. The light source of the solar simulator consists of one or two long-arc xenon lamps, and also includes components such as power supply and control circuits, and a computer.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The basic principle of a solar simulator is to use artificial light sources to simulate solar radiation, in order to overcome the shortcomings of solar radiation being affected by time and weather and the total irradiance being non-adjustable. The light source of the solar simulator consists of one or two long-arc xenon lamps, and also includes components such as power supply and control circuits, and a computer.

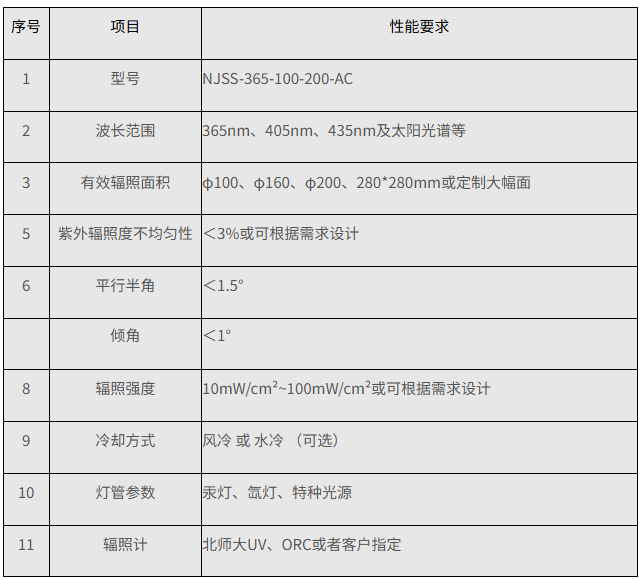

Specifications

ParameterValue
Wavelength Range365 nm, 405 nm, 435 nm and solar spectrum, etc.
Effective irradiation area [or custom large format]φ100 mm, φ160 mm, φ200 mm, 280 mm *280 mm or custom large format
UV irradiance non-uniformity [or can be designed according to requirements]<3 % or can be designed according to requirements
collimation half-angle<1.5 °
tilt angle<1 °
Irradiation intensity [or can be designed according to requirements]10 mW/cm²~100 mW/cm² or can be designed according to requirements
Cooling method [Optional]Air cooling or water cooling (optional)
Lamp parametersMercury lamp, xenon lamp, special light source
Radiometer [or customer specified]BNU UV, ORC or customer specified

Applications

Widely used in aerospace, photovoltaics, agriculture and other fields. Because of their good irradiance uniformity over a large area, such simulators can better adapt to the testing of large-size modules. According to user requirements, the power can be adjusted as a multiple of solar light intensity to accelerate aging test efficiency, and they are used for photovoltaic detection of material aging and calibration of optoelectronic devices.
