RCD20-AI120-LF100R RCD20 series fixed-mount code reader
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS |
| Housing Style | Square Type |
| Detection distance | 100~200mm |
| Field of view | Horizontal: 37°; Vertical: 28° |
| Focal Length | 5.5mm |
| Focusing method | Fixed focal length |
| Frame rate | 120fps |
| Illumination system | Non-polarized uniform light |
| Light source | Non-polarized red light |
| Imaging color | Monochrome |
| Barcode types | 1D codes: Code 39/Code 93/Code 128/EAN-8/EAN-13/Interleaved 2 of 5/UPC; 2D codes: QR code/DataMatrix |
| Shutter | Global |
| Aimer | 2 green LED dots |
| Indicator light | 2 green light dots indicate the center area of the code scanning position; 3 status LEDs and a buzzer |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1/3.7" |
| Exposure time | 80μs~30000μs |
| Gain | 0~16dB |
| Operating voltage | 24V DC |
| Power consumption | 2W |
| Output Mode | 1 isolated IO input, 1 isolated IO output (NPN and PNP configurable) |
| Communication Protocol | USB HID, RS232 |
| Communication Interface | USB2.0，RS232 |
| Operating Temperature | -10℃~50℃（No Freezing） |
| Storage Temperature | -20℃~70℃ (non-freezing) |
| Working Humidity | 5%~95% RH (no condensation) |
| Storage humidity | 5%~95% RH (no condensation) |
| Protection Rating | IP65 |
| Connection Method | Cable type |

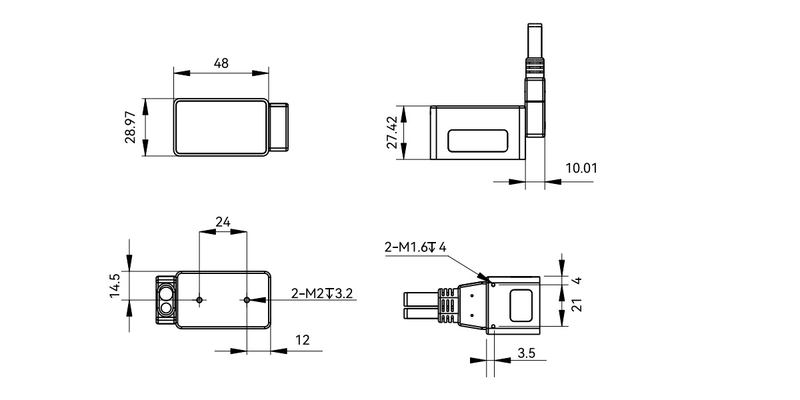

| Dimensions | 48 mm × 29 mm × 28 mm |
| Weight | Approx. 115g |
Datasheet
