Real-time Oscilloscope ADP7000 Series (ADP7254)
The ADP7000 series digital real-time oscilloscope is designed with innovative technology and can provide excellent measurement capabilities. Working in combination with a domestically-produced 8-bit ADC and a low-noise front end, it can provide excellent performance and outstanding signal integrity over a frequency range up to 2.5GHz. Built-in real-time digital filtering further improves noise performance. The computing platform uses a high-performance X86 architecture host running the Win10 operating system, equipped with a high-reliability solid-state drive for fast startup, and a 15.6-inch capacitive touchscreen that supports multi-touch, providing good human-machine interaction performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Input Channels | 4 analog channels |
| Bandwidth (-3dB) [-3dB；50Ω/1MΩ] | 2.5 GHz(50 Ω),1.0 GHz(50 Ω),600 MHz(1 MΩ) |
| Vertical Resolution | 8 bit |
| Typical rise/fall time (10%~90%) | 190 ps(ADP7254) |
| Input impedance | 50 Ω±3.5 %,1 MΩ±1 %(22±3 pF) |

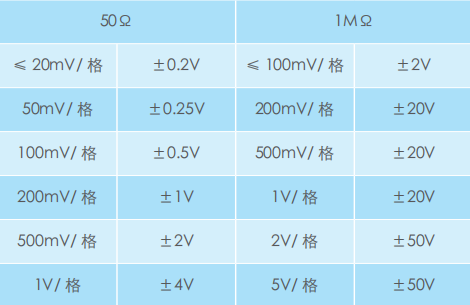

| Input sensitivity [50Ω/1MΩ] | 1 mV/div ~1 V/div (50 Ω), 1 mV/div ~5 V/div (1 MΩ) |
| Input coupling [＞ 10Hz] | 50 Ω DC, 1 MΩ DC/AC (>10 Hz) |
| Bandwidth limit filter | 20 MHz、200 MHz、1 GHz |
| DC gain accuracy (Fs) [Full scale] | 2 % of ±Fs (full scale) |
| DC offset accuracy | 0.1div±2 mV±1.5 % offset range |
| Maximum input voltage [50Ω/1MΩ] | ±5 V(50 Ω),±160 V(1 MΩ) |
| Dynamic range | ±4 divisions from screen center |
| Resolution | 100 ps |
| Horizontal position range | 0 s to ±500 s, continuously adjustable |
| Timebase accuracy | ±(0.3 ppm initial value +0.2 ppm/year aging rate) |
| Sampling rate [Single channel; Dual channel; Four channel] | 10 GSa/s (Single channel), 5 GSa/s (Dual channel), 2.5 GSa/s (Four channel) |
| Memory depth [Single channel; Dual channel; Four channel] | 4 Gpts (Single channel), 2 Gpts (Dual channel), 1 Gpts (Four channel) |
| Waveform interpolation filter | sin(x)/x interpolation |

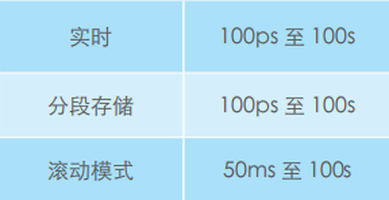

| Acquisition mode | Real-time sampling, peak detection, averaging mode, roll mode, segmented memory |
| Trigger Source | All analog channels, EXT, EXT/5, AC Line |
| Maximum edge trigger frequency | 2.5 GHz(ADP7254) |
| Trigger level range | ±4 divisions from screen center (External trigger input: ±10 V, maximum input 10 Vpp) |
| Trigger holdoff time | 20 ns to 10 s |
| Trigger modes | Auto trigger, Normal trigger, Single trigger, Force trigger |
| Maximum capture rate | 2,500,000 waveforms/second |
| Trigger jitter time [RMS] | 1.3psRMS |
| Trigger type | Edge, Pulse width, Glitch, Slope, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Bus trigger |
