650 nm APD 200 m light-sensitization LCC3 general/high gain
Save to Favorites

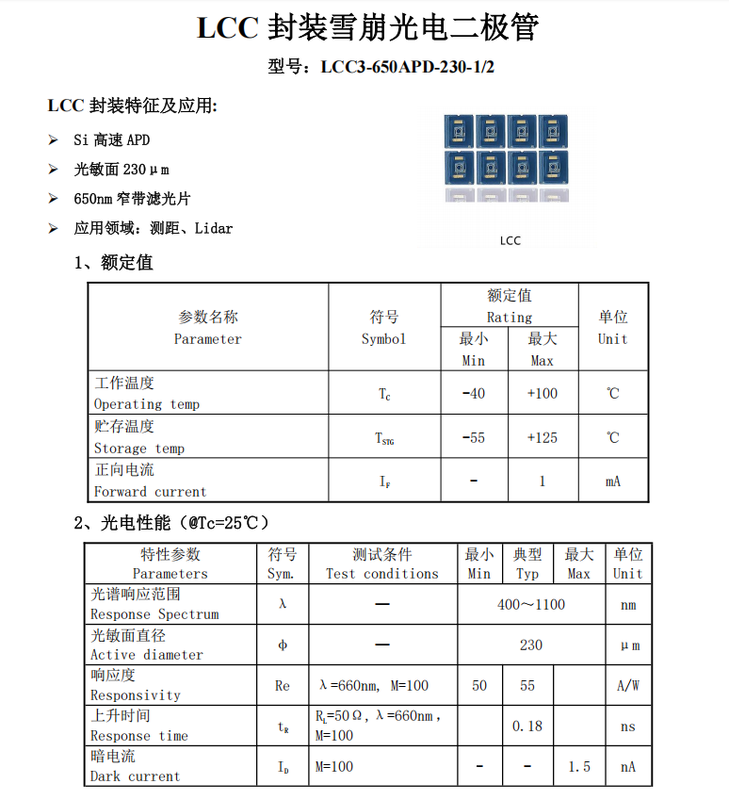

Specifications
| Parameter | Value |
|---|---|
| Wavelength | 600nm-699nm |
| Working temperature | min: Te -40; max: +100 |
| It's on its way | max: 1mA |

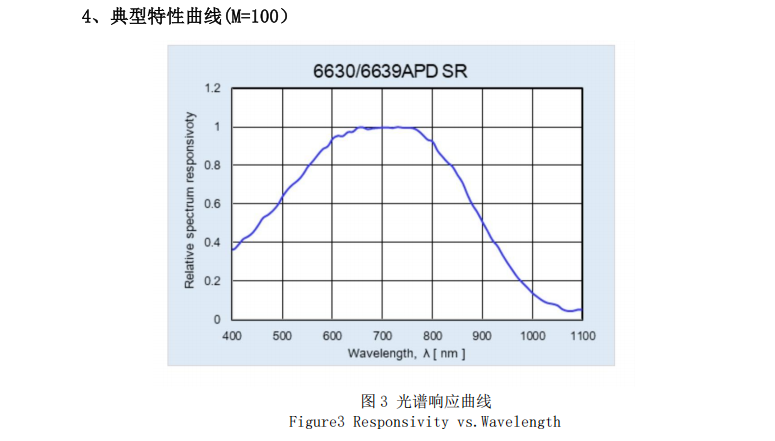

| spectral response range | typep: 400 ~ 1100; condition: enternm |
| Light-sensitized diameter | typ: 230; condition: ¢ |
| Dark current | max: 1.5; condition: M=100 |
Datasheet
