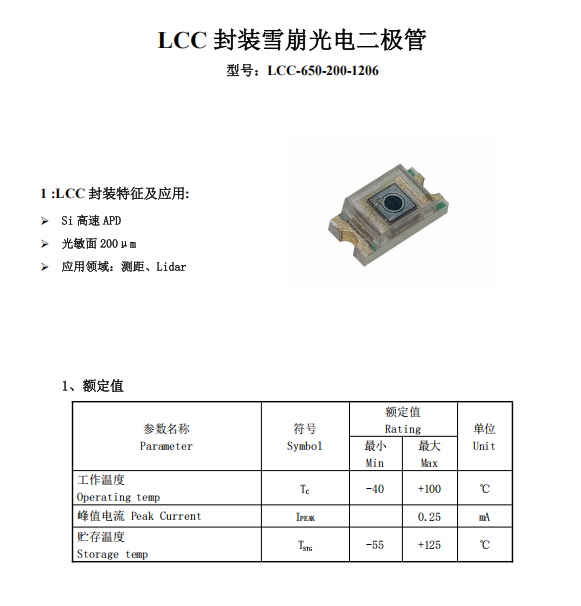

650 nm APD 1206 avalanche light diode, distance detector SMD sealed
Save to Favorites

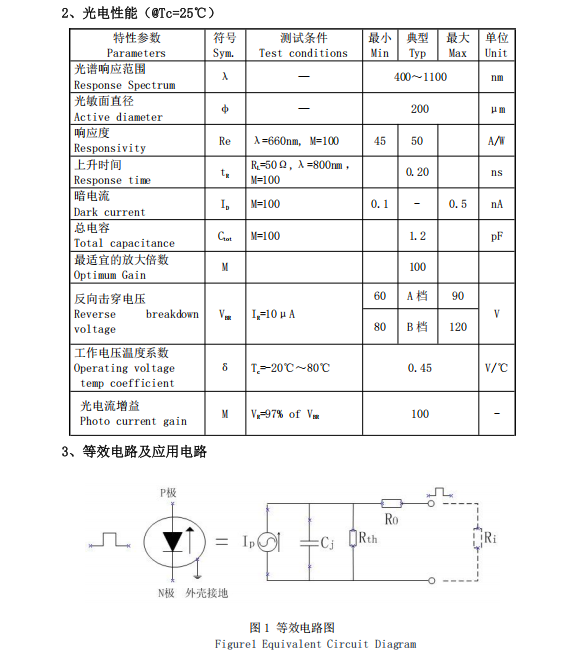

Specifications
| Parameter | Value |
|---|---|
| Wavelength | 600nm-699nm |
| spectral response range | typep: 400 to 1100; condition |
| Light-sensitized diameter | typep: 200; condition: Medium - |

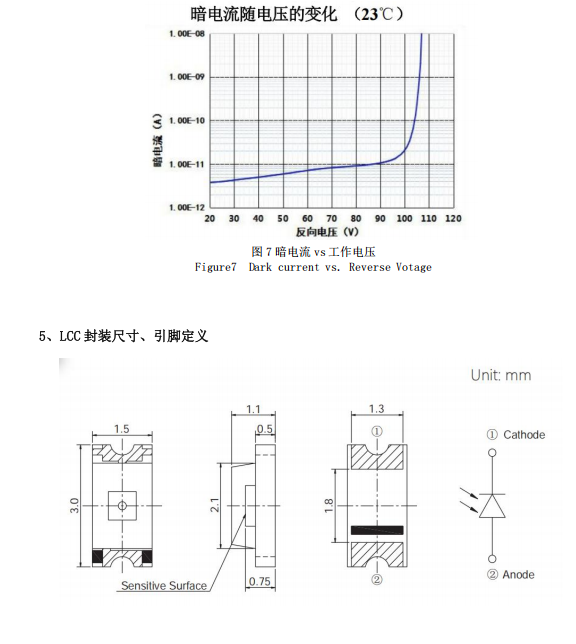

| Dark current | min: 0.1; max: 0.5; condition: I W=100 |

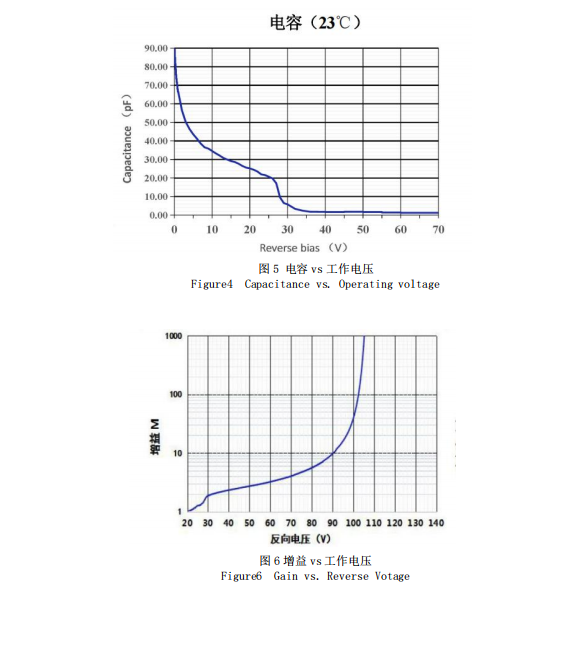

| Total capacity | typ: 1.2; condition: Clar W=100 |
| The most appropriate magnification factor | typ: 100; condition: M |
| Reverse shock through voltage | typep: 60A; max:90 |
| Optical current gain | typ: 100 |
| Extreme | min: Ro; min: ORth; condition: Ip Cj |
Datasheet
