30G PCIe pick-up card AD-3000
A high-speed AD30,000 PCIe data acquisition card carries a 30GSps 6bit high-speed ADC; a high-speed stock of data sampling, dispatch, and signal processing panels matching the FPGA and 4Gbyte DDR3 memory of Stratix; a high-speed PCI interface; features that are robust, platform-based and simple to use; and suitable for systems with high-speed collection needs and a large amount of data retrieval. AVRMCU is connected to the FPGA via external bus; operates a more complex control algorithm 6bit hig
Save to Favorites
Overview

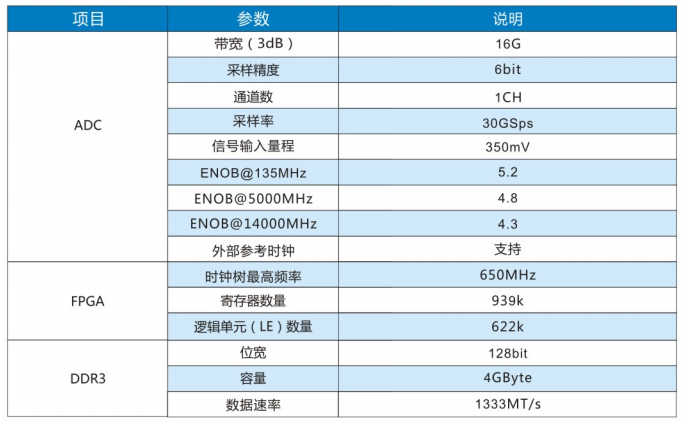

Specifications
| Parameter | Value |
|---|---|
| bandwidth | 16G |
| Sample precision | 6bitbit |
| Channels | 1CH |
| Sample Rate | 30GSps |
| Signal input range | 350mV |
| External reference clock | Support |
| Highest frequency of clock tree | 650MHz |
| Number of senders | 939k |
| Number of logical units | 622k |
| Bit width | 128bitbit |
| Capacity | 4GByte |
| Data rate | 1333MT/s |
Datasheet
