100G dryer evaluation panel package
Transimpedance Amplifiers

100G dryer evaluation panel package

Supplier
Ovlink
Category
Transimpedance Amplifiers
Origin
China

The 100 Gbps-complex receiver assesser panel package; works in the C-band; can be used for the decomposition and detection of QPSK / PM-QPSK / 4QAM; 16QAM; 64QAM light signals. The entire evaluation panel was divided into the main power supply control panel and the high-speed radio frequency signal fan outlet. The main control component consists of PD bias control; TIA gain control; AGC to switch to MGC; output band adjustment, etc.; and radio frequency converters primarily achieve 4-way high-sp

Specification Snapshot
Electricity voltage
min: Vpd 4.75; typ: 5; max: 5.25
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The 100 Gbps-complex receiver assesser panel package; works in the C-band; can be used for the decomposition and detection of QPSK / PM-QPSK / 4QAM; 16QAM; 64QAM light signals. The entire evaluation panel was divided into the main power supply control panel and the high-speed radio frequency signal fan outlet. The main control component consists of PD bias control; TIA gain control; AGC to switch to MGC; output band adjustment, etc.; and radio frequency converters primarily achieve 4-way high-speed IQ simulators. It is well suited for use by R & D units engaged in 100G-rate-related communications. Single power source 12V integrated IRR assembly kit GPPO high-speed output of AGC mode and MGC control mode is optional Porter rate; 32GBaud (max) output signal plaque; 900mV (max) PKD peak polycee output; 0-900mV supports NEO, Finisar, Fujitsu, etc

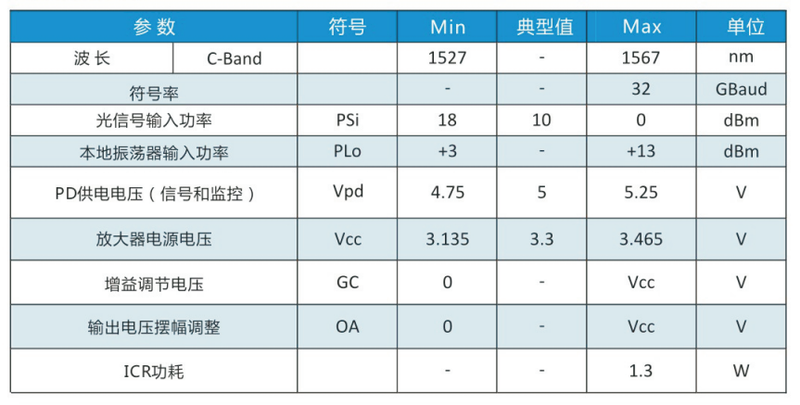

Specifications

ParameterValue
Wavelengthmin: 1527; max: 1567
Symbolratemax: 32
Light Signal Input Powermin: PSi 18; typ: 10; max: 0
Local oscillator input powermin: PLo +3; max: +13
Electricity voltagemin: Vpd 4.75; typ: 5; max: 5.25
Amplifier power voltagemin: Vcc 3.135; typ: 3.3; max: 3.465

Key Features

• Single power supply 12V power supply • Integrated IRR kit • GPPO high-speed output • AGC mode and MGC control model are optional • Porter rate; 32GBaud (max) • output signal plaque; 900 mV (max) • PKD peak piping output voltage; 0-900 mV • support products such as NEO, Finisar, Fujitsu

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Ov
Ovlink
View Supplier →
Wuhan OVLink Interconnection Technology Co., Ltd. (abbreviated as "OVLink") is located in Future Science City, East Lake National Independent Innovation Demonstration Zone, Wuhan, China. With a registered capital of 10 million RMB, it was founded in 2013 by a technical team from Huazhong University of Science and Technology. The company is an enterprise of Optics Valley "3551 Talents", a gazelle enterprise, a specialized and innovative enterprise in Hubei Province, and a national high-tech enterprise. Through continuous technological innovation, the company provides cost-effective test instruments and services for optical communication and optical sensing users. Its products cover high-speed optical module testing, high-speed coherent optical communication, fiber grating processing and testing, semiconductor laser control and light sources, distributed optical fiber sensing components and systems, etc. It not only provides cost-effective test instruments, but also provides module-level and system-level customized development services.
