Pulse laser driver module
OPLD series is a narrow pulse controller designed for switch-type semiconductor light amplifiers (SOA) and pulse lasers; internal integration TEC temperature control; the use of an extra-tTL electro-level trigger mode; features such as high-growth time; good stability; and the replacement of light / acoustic modulator in a fibre-optic sensor system by co-resist devices. Pulse width 10 ~ 800 ns. Pulse current maximum supports 3.2A to provide standard butterfly clippings; easy to operate
Save to Favorites
Overview

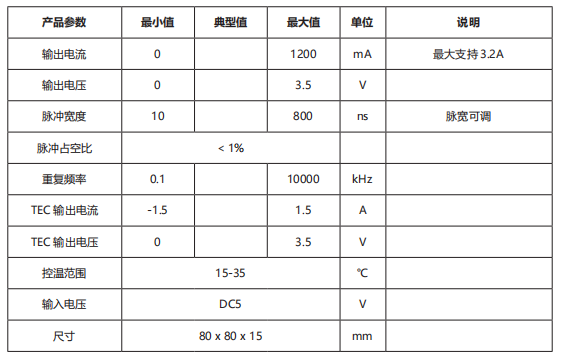

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Pulse ratio | < 1% |
| Output current | -1.5; 1.5; A |
| Temperature range | 15-35; ℃ |
| Enter voltage | DC5; V |
Datasheet
