Desktop QCL laser controller OQLD series
The OQLD series is a controller for quantum cascade lasers; supports the quasi-continuous wave (QCW) working mode and internal simulations. Provides accurate and stable currents; controls through front-board buttons and the visualization of LCD monitors. Very suitable for medium high power semiconductor laser applications. Support internal simulation output, support high-power quantum cascade lasers (QCL). Support continuous (CW) or quasi-continuous (QCW) mode operations
Save to Favorites
Overview

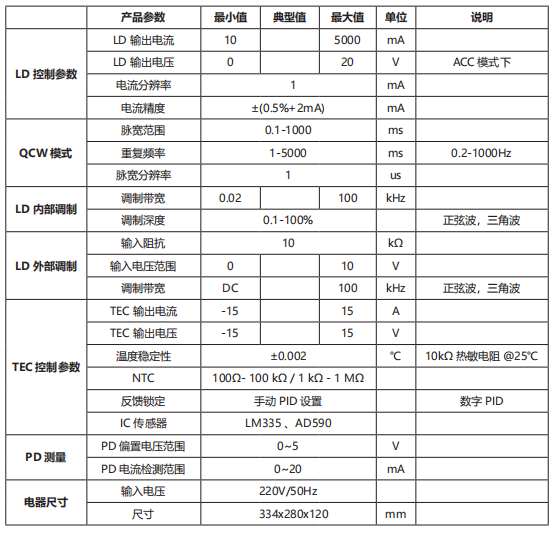

Specifications
| Parameter | Value |
|---|---|
| Control parameters | LD output current; 10; 5000; MA; TEC output currents; -15; 15; A |
| Mode | Pulse ranges; 0.1-1000; ms |
| Internal Modem | Bandwidthing; 0.02; 100; kHz |
| External Modem | input resistance;10; k |
| Measurement | PD bias voltage range; 0~5; V |
| Electrical size | input voltage; 220V/50Hz |
Datasheet
