C C++ L band ASE broadband light source
The fibre-optic ASE broadband light source uses spectral flat technology; it also has high output power; it covers C/L/C++ bands; it is suitable for applications such as fibre-optic sensing. Communications interfaces and onboarding software are available; light-source monitoring is facilitated. Power is stable, spectrum is flat, power is adjustable
Save to Favorites
Overview

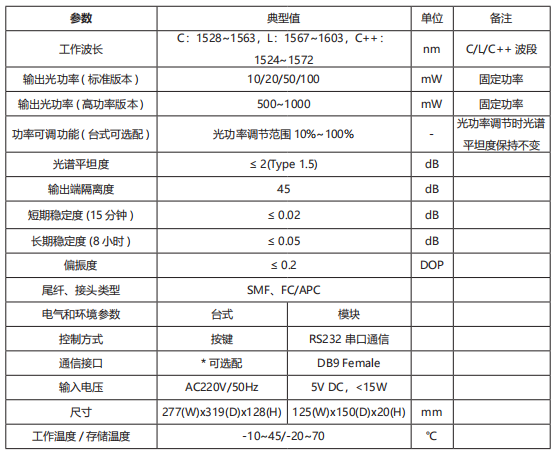

Specifications
| Parameter | Value |
|---|---|
| Work wavelength | typ: 1524~1572 |
| Output light power | typep: 10/20/50/100; condition: fixed power; typep: 500 ~1000; condition: fixed powermW |
| Power adjustable function | typ: Photopower reconciliation range 10% - 100% |
| Spectra Flatness | typ: ≤ 20ype 1.5）dB |
| Short-term stability | typ: ≤0.02dB |
| Long-term stability | typ: ≤005dB |
| Distortion | typ: ≤02 |
| End-fibre interface type | typ: SMF.FC/APC |
| Electrical and environmental parameters | typep: desktop block |
| Control Mode | typep: key RS232 serial traffic |
| Communications by mouth | typ: Optional DB9 Female |
| Enter voltage | typ: AC220V/50Hz SV DC, <15W |
| Working temperature storage temperature | typ: -10~45/-20~70 |
Applications
Datasheet
