C+L band ASE broadband light source
The fibre-optic ASE broadband light source module uses spectral flat technology; it also has high output power; it covers C+L bands; it is suitable for fibre-optic sensing, etc. RS232 interfaces and uploading software are available; light source module state monitoring is easy. Power is stable, spectra is flat, remotely monitored
Save to Favorites
Overview

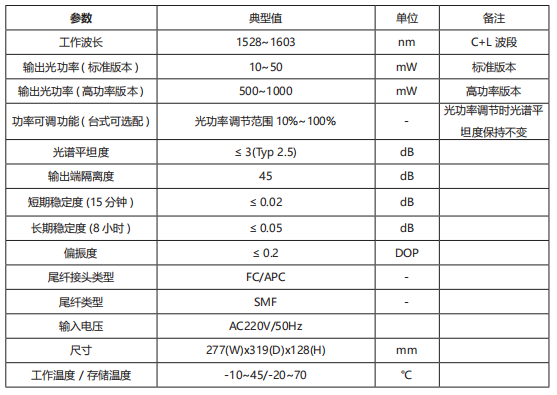

Specifications
| Parameter | Value |
|---|---|
| Work wavelength | typep: 1528 ~ 1603; condition: C+L bandnm |
| Output light power | typep: 10~50; condition: standard version; typep: 500 ~ 1000; condition: high powermW |
| Power adjustable function | typ: Photopower reconciliation range 10% ~ 100% |
| Spectra Flatness | typ: ≤3（IyP 2.5）dB |
| Output Validity | typ: 45dB |
| Short-term stability | typ: ≤0.02dB |
| Long-term stability | typ: ≤0.05dB |
| Distortion | typ: ≤02 |
| Osteoporosis | typ: FC/APC |
| Enter voltage | typ: AC220V/50Hz |
| Working temperature storage temperature | typ: -10~45/-20~70 |
Applications
Datasheet
