ASE broadband light source in 2000nm band
The 2000nm wave segment ASE wide-band light source uses short wavelength heat pump pips mixed with fibre-optic; single-module fibre-optic output power can be as high as 1,000 mW; spectrum coverage 1920-2020nm; suitable for laser organisms, spectrometry, etc. Spectra flat, medium infrared band, high stabilization output
Save to Favorites
Overview

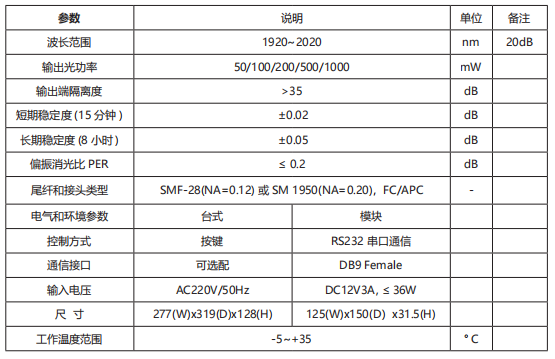

Specifications
| Parameter | Value |
|---|---|
| Output light power | 50/100/200/500/1000mW |
| Output end distance | >35dB |
| Short-term stability | ‡0.02dB |
| Long-term stability | +0.05dB |
| Distortion of light | ≤ 0.2dB |
| Fossil and docking type | SMF-28(NA=0.12) or SM 1950(NA=0.20), FC/APC |
| Electrical and environmental parameters | Desktop Module |
| Control Mode | Key RS232 serial traffic |
| Hydraulic voltage | AC220V/50Hz DC12V3A, ≤36W |
Applications
