1250-1650 nm broadband light source
A highly integrated desktop hyperbroadband light source; semiconductor lasers with high-quality butterfly-type seals; control systems based on advanced microprocessors; circuit control combined with high-precision ATC and ACC (APC); ensuring high performance spectroscopy efficiency and power stability; highly suitable for experimental scientific research and production testing. At the same time, the light source can select a specific bandwidth and a multiband broadband mix. High power spectrum d
Save to Favorites
Overview

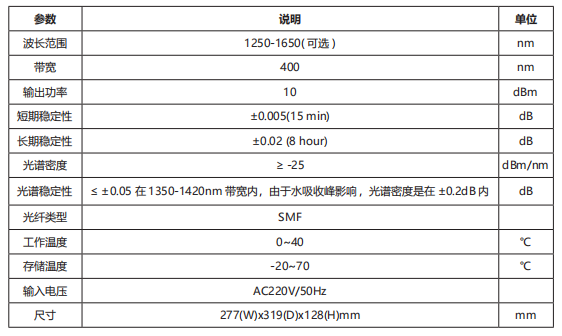

Specifications
| Parameter | Value |
|---|---|
| Move Power | 10dBm |
| Long-term stability | ‡0.02 （8 hour）dB |
| Light density | lv-25dBm/nm |
| Spectrum stability | spectral density within 1350-1420nm bandwidth is 0.2dB due to water absorption peaks |
| Fibre type | SMF |
| Enter voltage | AC220V/50HZ |
Applications
Datasheet
