Full fibre-optic filtration filter

Scanning Accuracy: 1 nm Maximum Polarization Transmittance: ≥40% Out-of-Band Rejection: ≥OD3

The Liquid Crystal Tunable Filter (LCTF) independently developed by Zhongda is a spectroscopic device based on dynamic wavelength selection technology based on the optical properties of liquid crystal. It can quickly adjust the wavelength of transmitted light through electronic control to achieve spectral splitting functions. This product can be connected to a computer through a USB interface, and the required wavelength and other parameters can be input on the supporting software operation interface to achieve flexible narrow-band filtering of incident light. In addition, it has adaptive temperature compensation capabilities. The calibration database can also be used to correct spectral drift caused by changes in field of view angle to meet the needs of larger field of view imaging. It can be combined with imaging lenses and image sensors (CMOS/InGaAs, etc. ) to form a compact hyperspectral imaging system. Therefore, this product is mainly used in scientific research, supplemented by other industries, to help photoelectric imaging equipment achieve intelligent spectroscopy

Wavelength Range: 1250-1650 nm Insertion Loss (IL) [Loss does not include connectors; connectors require an additional 0.2dB]: <8 dB Response Time: ≤5 ms

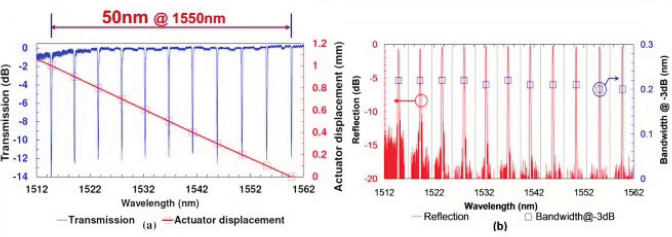

The 1250~1650nm Full-Band Tunable Optical Filter is a passive optical device based on tunable photonic technology (such as thermal tuning, electrical tuning, or mechanical tuning), capable of achieving continuous or discrete wavelength selection over the wide wavelength range from 1250nm to 1650nm. Its core function is to screen out the target wavelength or band from broadband optical signals by dynamically adjusting the filtering characteristics, while suppressing other wavelength components.

Wavelength Range: 1530—1570 nm or 1270 nm—1330 nm Tunable Wavelength Resolution: 0.1 nm Tunable Isolation Resolution: 0.1 dB

SOI chip-based tunable optical filter array. This product is based on a silicon-based thermally tuned microring structure. The center wavelength and isolation of the optical filter are tunable, achieving monolithic integration of multi-channel optical filters. Through special design, polarization-independent characteristics are achieved, with optoelectronic packaging and digital driving.

Pump Laser Wavelength: 915 975 or customized Passband Bandwidth: +15 nm Insertion Loss [Type]: 0.3 dB

The 915nm, 976nm, 980nm single-mode pump protectors are mainly used to block the wavelength back-reflected light from laser diodes to fiber lasers. This product can withstand 1~20W power and features high isolation and low insertion loss; the passband bandwidth, cutoff bandwidth, and power are customizable.
