Uband Fibre amplifier
U-band fibre-optic amplifiers are photo-power amplifiers products that are dedicated to fibre-optic lasers or fibre-optic communication systems; they have the advantage of high gain and low noise. Desktops, racks or modular seals can be made available according to client needs; parameters are accepted for customization. Work wavelength range; 1690-1750 nm increase flat low NF
Save to Favorites
Overview

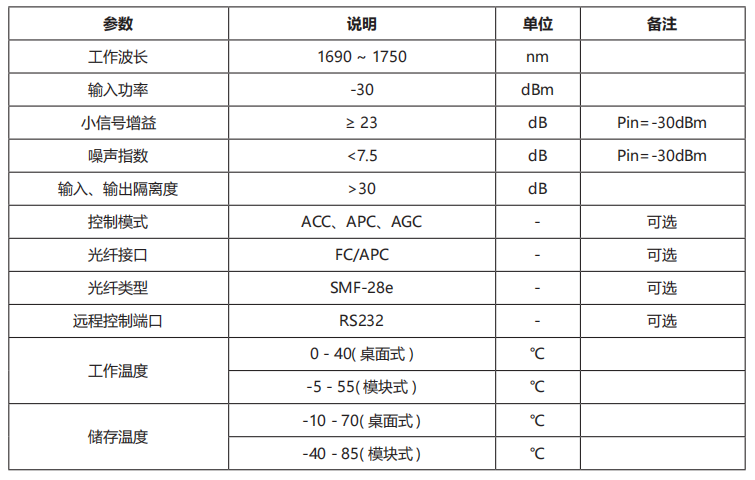

Specifications
| Parameter | Value |
|---|---|
| Work wavelength | 1690 ~ 1750nm |
| Enter Power | -30dBm |
| Small signal gain | ≥23; condition: Pin=-30dBm |
| Voice index | <7.5; condition: Pin=-30dBm |
| Control Mode | ACC, APC.AGC; condition: optional |
| Fibre interface | FC/APC; condition: optional |
| Fibre type | SMF-28e; condition: optional |
| Remote Control Port | RS232; condition: optional |
| Desktop formula | 0-40 (desktop); -10-70 (desktop)℃ |
| Module | -5-55 (modular); 40-85 (modular)℃ |
Applications
