O+E Band Mixed Fibre amplifier
O+E-band fibre-optic amplifiers are a broadband photo power amplifier product; they are widely used in fibre-optic communications; and have the advantage of high gain and low noise. Desktops, racks or modular seals can be made available according to client needs; parameters are accepted for customization. Work wavelength range; 1345-1460 nm high gain low NF
Save to Favorites
Overview
Specifications

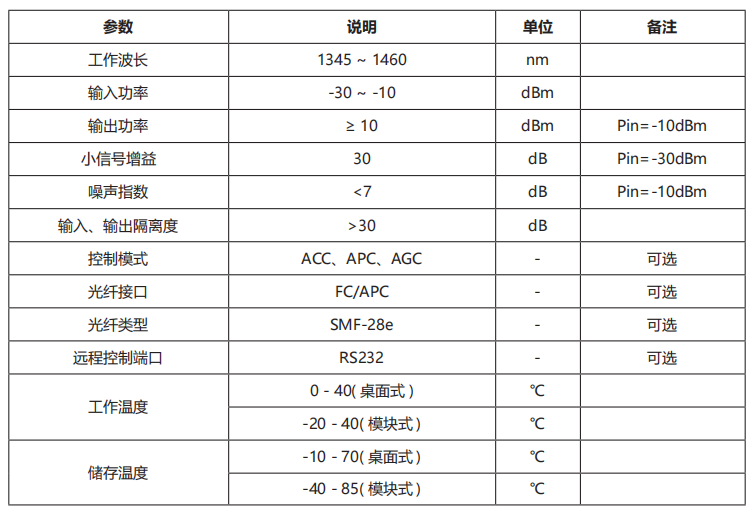

| Parameter | Value |
|---|---|
| Work wavelength | 1345 ~ 1460nm |
| Enter Power | -30~-10dBm |
| Output Power | ≥10; condition: Pin=-10dBm |
| Small Signal Benefits | 30; condition: Pin=-30dBm |
| Noise Index | <7; condition: Pin=-10dBm |
| Control Mode | ACC.APC.AGC; condition: optional |
| Fibre interface | FC/APC; condition: optional |
| Fibre type | SMF-28e; condition: optional |
| Remote Control Port | RS232; condition: optional |
| Desktop formula | 0-40 (desktop); -10-70 (desktop)℃ |
| Module | 20-40 (modular); 40-85 (modular)℃ |
Applications
Datasheet
