E-band Blended fibre-optic amplifier
E-band Fibre amplifier is an enrichment medium with muscular fibres; has high gain and low noise properties; supports multi-control modes and remote interfaces; can provide desktops, racks or modular seals according to the needs of the client; and accepts parameters. Work wavelength range; 1425-1465nm high gain low NF
Save to Favorites
Overview

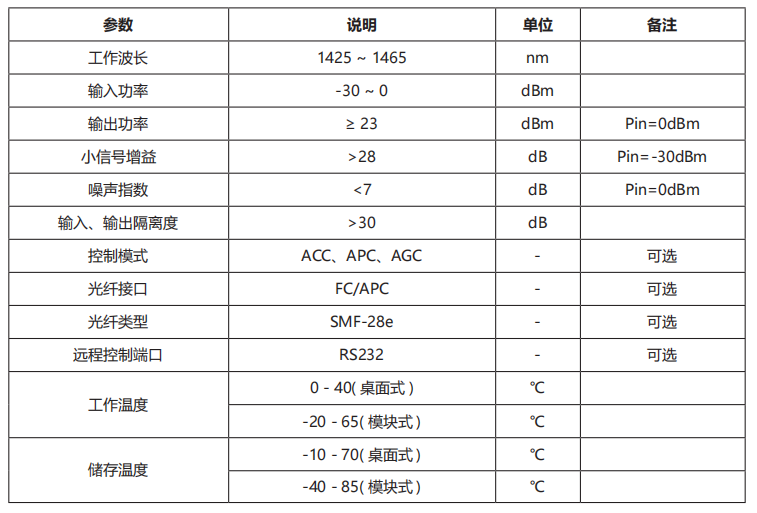

Specifications
| Parameter | Value |
|---|---|
| Work wavelength | 1425 ~ 1465nm |
| Enter Power | -30~0dBm |
| Output Power | ≥23; condition: Pin=0dBm |
| Small signal gain | >28; condition: Pin=-30dBm |
| Control Mode | ACC, APC. AGC; condition: optional |
| Fibre interface | FC/APC; condition: optional |
| Fibre type | SMF-28e; condition: optional |
| Remote Control Port | RS232; condition: optional |
| Desktop formula | 0-40 (desktop)℃ |
| Module | 20-65 (modular)° |
| Desktop formula | -10-70 (desktop)° |
| Module | 40-85 (modular)℃ |
Applications
