C+L band mixed fibre-optic amplifier
The C+L waved fibre-optic amplifier is a hyperbroadband power fibre-optic emitter; it is widely used for various applications, including free space communications, related beam integration and detection systems. High power, low NF, etc. Desktops, racks or modular seals can be provided according to the needs of the client; parameters are accepted for customization. Work wavelength range; 1524-1627nm high output power low NF adjustable power control
Save to Favorites
Overview

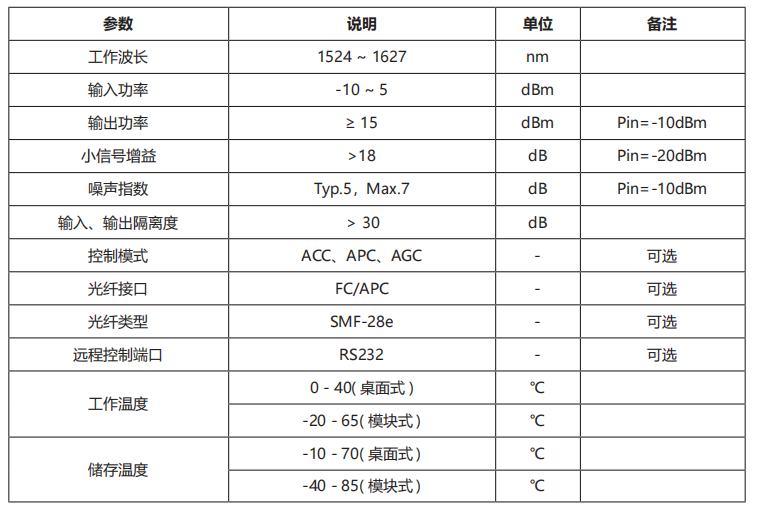

Specifications
| Parameter | Value |
|---|---|
| Work wavelength | 1524~1627nm |
| Enter Power | -10~5dBm |
| Output Power | ≥v15; condition: Pin=-10dBm |
| Small signal gain | >18; condition: Pin=-20dBm |
| Voice index | Typ.5, Max.7; condition: Pin=-10dBm |
| Control Mode | ACC, APC, AGC; condition: optional |
| Fibre interface | FC/APC; condition: optional |
| Fibre type | SMF-28e; condition: optional |
| Remote Control Port | RS232; condition: optional |
| Desktop formula | 0-40 (desktop)℃ |
| Module | 20-65 (modular) |
| Desktop formula | -10-70 (desktop)° |
| Module | 40-85 (modular)℃ |
