Cband Blended fibre-optic amplifier
C-band fibre-optic amplifiers are a broadband photo power amplifier product; they are widely applied to fibre-optic communications; they have the advantage of high gain and low noise. Desktops, racks or modular seals can be provided according to the needs of the client; parameters are accepted for customization. Work wavelength range; 1524-1572nm high gain low NF
Save to Favorites
Overview
Specifications

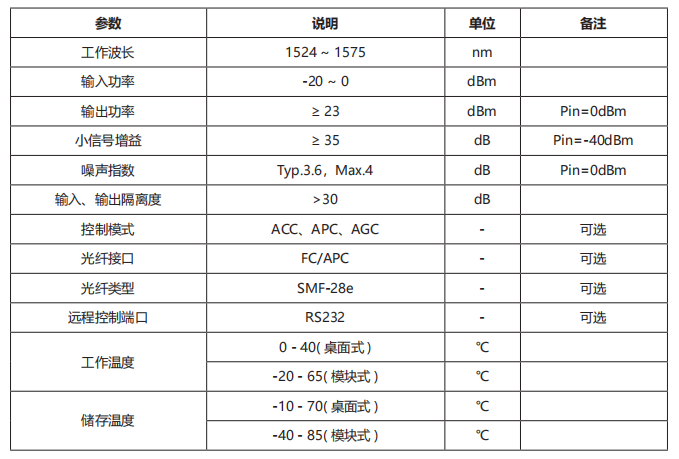

| Parameter | Value |
|---|---|
| Work wavelength | 1524~1575nm |
| Enter Power | -20~0dBm |
| Output Power | ≥23; condition: Pin=0dBm |
| Small signal gain | iv35; condition: Pin=-40dBm |
| Control Mode | ACC.AP, AGC; condition: optional |
| Fibre interface | FC/APC; condition: optional |
| Fibre type | SMF-28e; condition: optional |
| Remote Control Port | RS232; condition: optional |
| Desktop formula | 0-40 (desktop)℃ |
| Module | 20-65 (modular); 40-85 (modular)℃ |
| East | 10-70 (East)℃ |
Applications
Datasheet
Supplier Information
Related Products
-
C++-L++-band-blended fibre-optic amplifier
Fiber Optic Amplifiers
Ovlink
Optical indicators: units;typical values; comments Enter Power: dBm; < 22.5; maximal output power Gain factor: dB; 15~20/18~24/22~31
The C++/L++ waved fibre-optic amplifier EDFA is a product series of photopower amplifiers specially designed for fibre-optic lasers or fibre-optic communication systems; works with wavelength coverage of 1524-1572nm / 1575.16 ~1626.45nm; and has high multiplier and low noise advantages. Override C++/L++ bands High gain factor High output power
-
Inphenix semiconductor light amplifier SOA
Fiber Optic Amplifiers
Ovlink
The semiconductor light amplifier (SOA) in Inphenix's is the key device for light high-speed switches, light wavelength conversion, photoregeneration, light wavelength selection, light front magnification and power enhancement. Our SOA product covers two bands, 1310 and 1550 nm
-
Combination fibre-optic amplifier
Fiber Optic Amplifiers
Ovlink
Optical indicators: units;typical values; comments Enter Power: dBm; -6~+3; 50nm@10; dB Saturation output power: dBm; 15/17/20/23/25/26; @3dBm input
Application profiles; Mixed fibre-optic amplifiers (EDFA) are a product series of photo-power amplifiers dedicated to fibre-optic lasers or fibre-optic communication systems; semiconductor lasers pump plume fibre-optics into signal light. It has the advantage of efficient energy conversion, high gain and low noise. Desktop EDFA allows for experimental operations; users can regulate pump currents through front panels; thus changing amplifiers ' gain and output power. A small-sized modular EDFA is also provided for system integration; uplink software controls or serial command controls are supported. Product type; C-band single-band mixed fibre-optic small signal amplifier C-band single-band combined fibre-optic power amplifier C-band increased flatly C-band increased flatly PV amplifier, pulsed PV amplifier
-
C+L band mixed fibre-optic amplifier
Fiber Optic Amplifiers
Ovlink
Work wavelength: 1524~1627nm Enter Power: -10~5dBm Output Power: ≥v15; condition: Pin=-10dBm
The C+L waved fibre-optic amplifier is a hyperbroadband power fibre-optic emitter; it is widely used for various applications, including free space communications, related beam integration and detection systems. High power, low NF, etc. Desktops, racks or modular seals can be provided according to the needs of the client; parameters are accepted for customization. Work wavelength range; 1524-1627nm high output power low NF adjustable power control
