Four roads by locator
The ORT-50 four roads by locator is a continuously distributed fibre-optic vibration sensor system; it uses optical-time reflector technology and the Rilly dispersive effect to continuously measure vibrations along the fibre; achieves accurate decomposition and rapid positioning of intrusion vibration signals; can significantly increase the efficiency of cable verification; uses an APP through cloud-end control equipment; can reduce human and time-time costs of cable maintenance; compared to tra
Save to Favorites
Overview

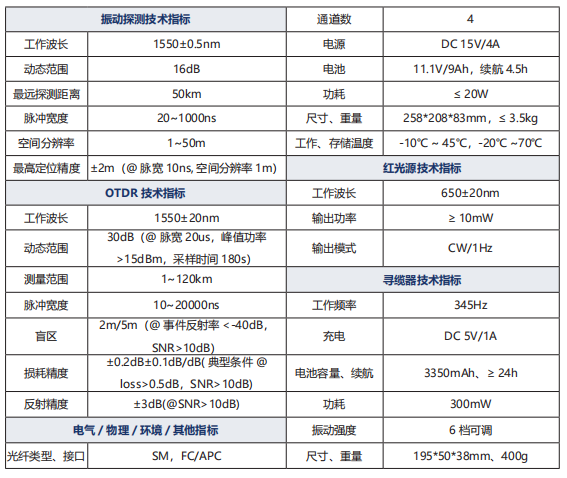

Specifications
| Parameter | Value |
|---|---|
| Vibration detection technology indicators | Number of channels; 4 |
| Work wavelength | 1550 ± 0.5 nm; power supply; DC 15V/4A; 1550±20nm;output power; ≥10mW |
| Maximum detection distance | 50km; Utility; ≤20W |
| Space Resolution | 1~50m;work, storage temperature; -10°C ~ 45°C, 20°C ~70°C |
| Maximum position accuracy | ±2m (@g 10ns, spatial resolution 1m); Red Light Technical Indicators |
| Technical indicators | working wavelength; 650 ± 20 nm |
| Blind | 2m/5m (@incident reflectivity <-40dB, SNR>10dB); Charge; DC 5V/1A |
| Loss accuracy | (b) Battery capacity, renewal |
| Reflect precision | ±3dB (@SNR>10dB); Utility; 300mW |
| Other indicators of the electrical physical environment | Vibration intensity; shiftable 6 |
| Fibre type, interface | SM, FC/APC; size, weight; 1955038mm, 400g |
