Optical-frequency reflector OFDR
The PVR-1000 is a high-precision distribution fibre-optic plug-in detection system; diagnostics and measurements that can be used for fibre-optic networks and fibre-optic devices; and loss and reflection points for precise measurement of the area fibre-optic links. Second-scale measurements; quick-output measurements; mm-level positioning; accurate identification of various reflection events; high-accuracy loss measurements; accurate output of loss of reflection events; high-accuracy plug measur
Save to Favorites
Overview
Specifications

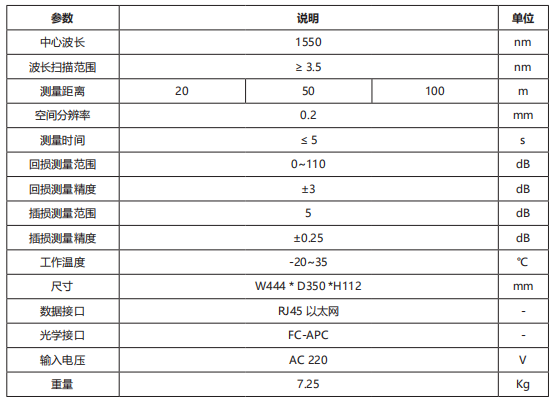

| Parameter | Value |
|---|---|
| Central wavelength | 1550nm |
| Wavelength scanning range | ≥3.5nm |
| Measure Distance | 50m |
| Space Resolution | 0.2mm |
| Quantum of loss | 0~110dB |
| Loss measurement precision | ‡3dB |
| Battle scale | 5dB |
| Battle damage measurements | ‡025dB |
| Enter voltage | AC 220V |
Applications
Datasheet
Supplier Information
Related Products
-
OLTS-L Series Long-Travel Linear Motion Stage OLTS-150L
Fiber Test & Measurement
Oeabt
Specifications: 352.5 mm × 100 mm × 40.5 mm Total travel: 146mm Weight: 1896.8g
This long-travel, high-precision linear stage requires an O'motion controller. (1) A high-performance two-phase stepper with microstepping gives nanometer pulse resolution. O'motion provides stepless speeds of 0.78mm/s-6.25mm/s and adjustable jog distances of 0.01-0.5mm. Jog, slow-run and Hall stepless-speed modes support precise forward/backward feed. (2) USB serial and ASCII O'motion commands support Windows, Linux, MacOS and Android. Windows host examples and complete protocol documentation facilitate secondary development. (3) Threaded and locating-pin holes allow flexible fixture installation; the USB/ASCII interface supports those operating systems. (4) Adapter plates and right-angle brackets combine stages into XY, XZ or XYZ.
-
Hnhctx HY-8300 Active Optical-Cable Detector
Fiber Test & Measurement
Hnhctx
1. Detects the route and burial depth of underground optical/electrical cables. With a signal applied to cable conductors, effective detection distance is >25 kilometers at burial depths ≤1.5 meters and >10 kilometers at depths ≤2.5 meters, with horizontal position error ≤5 centimeters. 2. Detects the route and depth of underground metal pipelines, including oil, steam and water pipes. A signal applied to the pipeline or cable lead sheath gives an effective range >1000 meters. In the absence of strong magnetic interference, effective detection depth is 3 meters within a distance of 200 meters and 2.5 meters within 600 meters. 3. With a measuring probe, or grounding probe, it locates insulation faults to ground in underground plastic-jacketed optical/electrical cables. It can find leakage faults with resistance <0.5 megohms within 15 kilometers.
-
Imported Japanese Yokogawa OTDR Optical Time-Domain Reflectometer
Fiber Test & Measurement
Hnhctx
The AQ7280 series is a high-performance instrument for fiber distance/loss measurement and fault location. As field installation and maintenance demand greater reliability and ease of use, YOKOGAWA developed this new OTDR series to provide field technicians with fast, precise and convenient measurements. Safe and reliable: A rugged housing withstands harsh field conditions. A mature operating system ensures stable, responsive measurements, and protection software resists virus attacks. Easy operation: Combined multitouch and hard-key controls with new software enable automatic measurement and easy result review. Fast startup, multitasking and wireless reports improve efficiency. Multitasking: While measuring one fiber by OTDR, users can inspect another fiber's optical power and connector end face. Dual controls allow tapping, swiping, zooming and pressing on an 8.4-inch high-resolution capacitive multitouch display, or any preferred hard-key combination. Startup takes no more than 10 seconds; new high-speed hardware and efficient software ready AQ7280 within seconds. Smart Mapper: One button measures with multiple pulse widths; intelligent algorithms identify and describe line events in an icon view. User thresholds give pass/fail decisions; trace views support additional manual analysis. Available with /SMP. Multifiber measurement: A database view guides sequential tracking of multiple fibers and groups each fiber's OTDR trace, power and end-face image. Pass/fail results simplify characterization. Wireless connectivity: WindowsTM devices and wireless routers enable remote OTDR control. FlashAiTM transfers measurements to WindowsTM devices. Email/file-transfer software conveniently sends results/reports. Eagle-eye function: High sampling resolution over long distances reduces distance-offset error and precisely locates breaks, accelerating repair. Battery endurance: AQ7280 lithium batteries provide 15 hours under Telcordia conditions, or up to 10 hours with the laser continuously on. Modular design: 9 OTDR modules span single-/multimode, low to ultrahigh dynamic range, and 2 to 4 wavelengths. Users can configure power meters, light sources, visible sources and end-face probes. Connector quality: High-performance LightelTM probes visualize surfaces for scratches/contamination with magnification, inspection and comprehensive securing, reducing 90% of fiber/cable problems. PDF reports: Built-in postprocessing generates OTDR PDFs with flexible templates; wireless networking transmits them promptly. Intermittent outage monitoring: Cold-weather bending or loose connections can interrupt networks intermittently. Periodic monitoring and advanced analysis identify these events. Scheduled OTDR measurements monitor selected fibers over user-defined cycles/intervals, compare results with reference traces, analyze differences, and record the time and distance of losses exceeding user thresholds. Available with /MNT. Macrobend detection: One button acquires multiple-wavelength traces on the same fiber. Advanced analysis identifies bends when losses at the same event differ across wavelengths beyond the user threshold, immediately locating them. Fault locator: Intelligent algorithms adapt to point-to-point or PON topology to identify breaks, showing clear distance information with trace views for detail. PON optimization: Selected AQ7280 modules characterize PONs through splitters up to 1×128. PON mode helps beginners/experts configure measurements from topology information. Short event dead zones and high sampling resolution detect near-end connectors at about 0.5m, under 20 inches. The AQ7283F's built-in optical cutoff filter and dedicated port allow live PON measurement/maintenance. Multilingual display supports Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish and Turkish, among others. Options: Optical and low-optical-power meters display absolute/relative source power for transmitter/network testing and save reference results. Calibration/selectable wavelengths support single-/multimode fibers and CW/modulated light. Normal and low-power options differ in specifications/functions and apply with selected OTDR units. Stable source: Selected units provide stable CW light with a power meter for precise point-to-point attenuation, plus 270Hz/1kHz/2kHz modulation for fiber identification/continuity checks. Visible source: Continuous/modulated red laser light checks patch cords, launch fibers and short links, making breaks and bends visibly identifiable.
-
1310nm&1550nm FP and APD OTDR Module OTDR-3-5-X-X-X-XX-XX
Fiber Test & Measurement
O-send
Absolute Maximum Ratings - Storage Temperature: -40°C~+100°C Absolute Maximum Ratings - Operating temperature: -10°C~+50°C Absolute Maximum Ratings - Reverse Voltage: 2V
The 1310nm&1550nm FP and APD OTDR module is mainly used to manufacture OTDR test tools, with customization available.
-
850nm&1310nm FP and APD OTDR Kit OTDR-3-8-1-X-X-XX-XXX-X
Fiber Test & Measurement
O-send
Absolute maximum ratings - Storage temperature: -40°C~+100°C Absolute maximum ratings - Operating temperature: -10°C~+50°C Absolute maximum ratings - Reverse voltage: 2V
The 850nm&1310nm FP and APD OTDR kit is mainly used in OTDR manufacturing. Customization and custom production are available.
