Cable Censusr
The BH800 cable surveyer, in addition to its excellent cable detection function, has integrated the full OTDR function, which can be used to measure fibre-optic decay, co-depletion, fibre-optic failure points and understanding the distribution of loss along fibre-optic lengths. The equipment is a sophisticated instrument for the accurate identification of fibre-optic cables; it has such advantages as light, interface-friendly, simple practical and non-harmful cables. Integrated red light source
Save to Favorites
Overview
Specifications

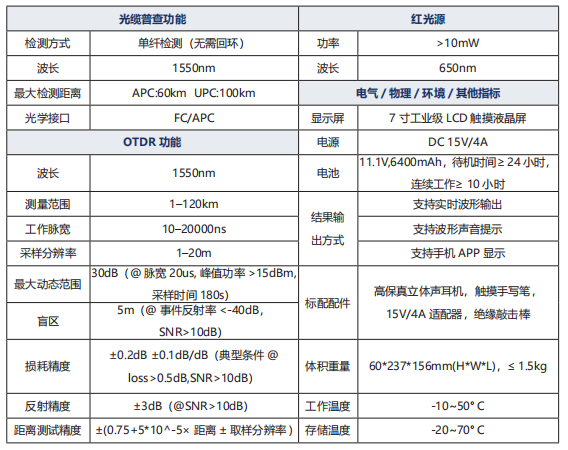

| Parameter | Value |
|---|---|
| Technical parameter cable census function | Red Light |
| Test Method | Single fibre detection (no loops required); power; >10mW |
| Wavelength | 1550 nm; wavelength; 650 nm; 1550 nm; batteries; 11.1 V 6400 mAh, 24 hours stand-by, 10 hours continuous work |
| Maximum detection distance | APC: 60 km UPC: 100 km; electrical/physical/environmental/other indicators |
| OTDR function | power;DC 15V/4A |
| Work Pulse | 10–20000ns; supporting wave sound tips |
| Sample Resolution | 1-20m; supporting APP display |
| Maximum dynamic range | 30dB(@pulse width 20us, peak power > 15dBm, sampling time 180s) |
| Blind | 5m (@incident reflectivity <-40dB, SNR>10dB) |
| Loss accuracy | ±0.2dB ±0.1dB/dB (typical condition@loss>0.5dB, SNR>10dB); volume weight; 60237156mm (HWL), ≤1.5kg |
| Reflect precision | ±3dB(@SNR>10dB); working temperature -10~50°C |
| Distance Test Precision | ± (0.75 + 510 ^-5-range ± resolution); Storage temperature; -20 ~70 °C |
