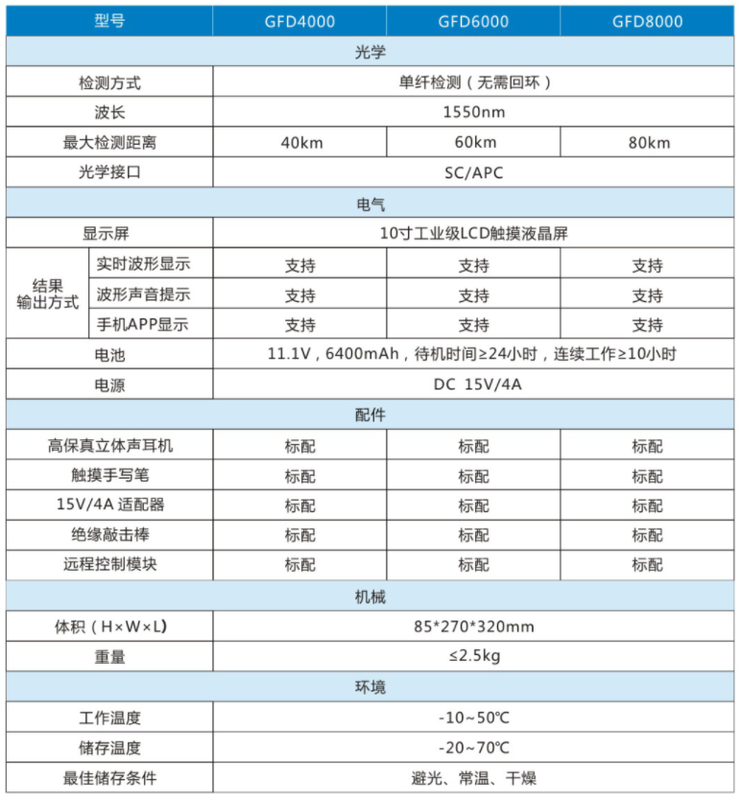

GFD optic cable tester
The GFD series of optical breaker testers (optic surveyors, cables, cable surveyors); the optical light effect of fibre-optics; the conversion of the vibrating signal of the cable into visual and audio signals through the interferolysis of light; and the accurate identification and identification of target cables laid in human wells, tunnels, pipes and poles. The equipment has the advantages of being interfaced, simple and practical, finding precision, and not damaging cables. Automatic slot rec
