DVS modem module
The FPM series is an integrated distributed fibre-optic vibrating sensoring module; a highly integrated DVD module developed autonomously for light valley interconnection; integrated DVDs and OTDR; and self-carried batteries; an innovative engineering application product; performance stability, safety, reliability and integration; and widely used for exterior detoxification, invasion-proof monitoring. Integrated DVS and OTDR self-contained lithium batteries; up to 4.5 hours of continuous flight
Save to Favorites
Overview

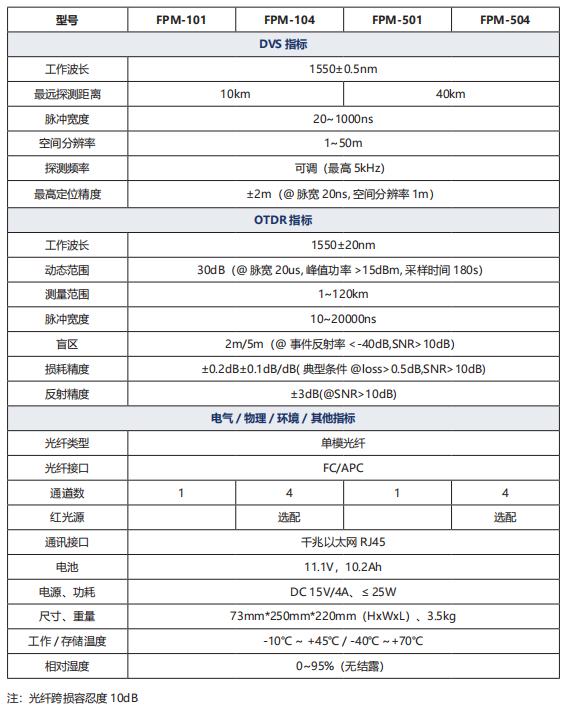

Specifications
| Parameter | Value |
|---|---|
| Work wavelength | 1550±0.5nm; 1550±20nm |
| Maximum detection distance | 10km; 40km |
| Space Resolution | 1~50m |
| Detection frequency | Alignable (up to 5 kHz) |
| Maximum position accuracy | ±2m (@pulse width 20ns, spatial resolution 1m) |
| Blind | 2m/5m (@incident reflectivity <-40dB, SNR>10dB) |
| Loss accuracy | ±0.2dB±0.1dB/dB (typical conditions@loss>0.5dB, SNR>10dB) |
| Reflect precision | ±3dB(@SNR>10dB) |
| Fibre type | Monomodular fibre |
| Fibre interface | FC/APC |
| Channels | 1; 4; 1; 4 |
| Red Light | matching; matching |
| Communications interface | G.E.N.R.J.45 |
| Battery | 11.1V, 10.2Ah |
| Power, power | DC 15V/4A、≤25W |
| Working storage temperature | -10℃~ +45℃/ -40℃~+70℃ |
