Multi-channel multi-modular light decayer
The DVOA-300X series multi-channel multi-mode modular decayers employ high-quality devices with precise calibration protocols; are capable of continuous decomposition of light signals; have a maximum decomposition of up to 40 dB; it can meet simulations of equipment and system wear and tear by the manufacturer of systems and devices; equipment calibration; the need for power metering linear measurements; and have very low penetration depletion and high repetition of decay. Up to 8 channels with
Save to Favorites
Overview

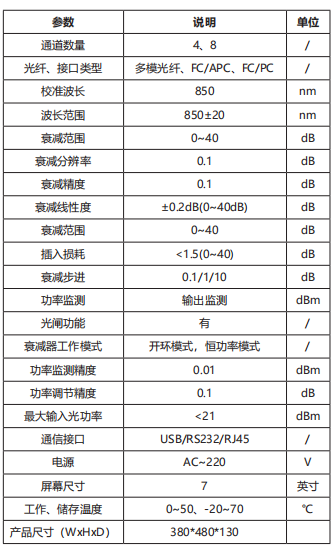

Specifications
| Parameter | Value |
|---|---|
| Number of channels | 4.8 |
| Fibres, interface type | Multi-module fibre, FC/APC, FC/PC |
| Calibration wavelength | 850nm |
| Declining range | 0~40dB |
| Declining distinction | 0.1dB |
| Decoration | 0.1dB |
| Declining linearity | 0.2dB（0~40dB） |
| Insert Loss | <1.5（0~40）dB |
| Decline progress | 0.1/1/10dB |
| Inspector Kwok | Output Monitoring |
| Lightgate function | Yeah |
| Work mode of the decayer | Open mode, constant power mode |
| Power monitoring accuracy | 0.01dBm |
| Power Adjustment Precision | 0.1dB |
| Maximum input power | <21dBm |
| Screen Size | 7 |
| Work, storage temperature | 0~50.-20~70° |
| Product size | 380480130 |
