1550 nm high power mono-frequency continuous fibre-optic laser
The laser uses the MOPA technology system; takes full advantage of the technological advantages of fibre-optic laser noise suppression and pre-magnification; obtains a high power output while maintaining the maximum beam mass, the high oscillation distillation ratio, the high optical noise ratio; and is the ideal light source for successive Doppler laser wind radars. Typical applications are on-board wind radars, short-range dry wind radars. Nationally manufactured equipment Human eye safety wav
Save to Favorites
Overview
Specifications

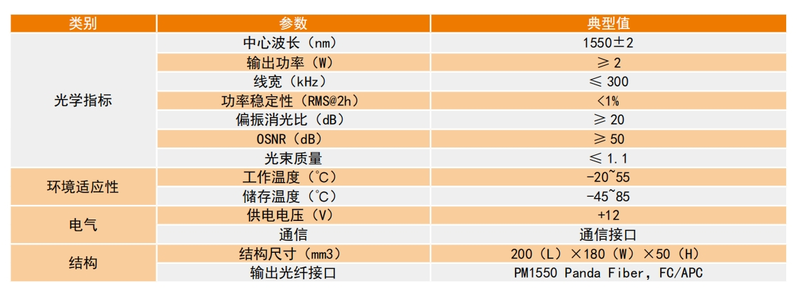

| Parameter | Value |
|---|---|
| Central wavelength | typ: 1550 2nm |
| Width | typ: ≤ 300kHz |
| Optical indicator power stability@2h | typ: ＜1% |
| Distortion of light | typ: ≥20dB |
| Working temperature | typ: -20~55℃ |
| Environmentally adaptable storage temperature | typ: -45~85℃ |
| Electricity voltage | typ: +12V |
| Structure Dimensions | typ: 200 （L） ×180（W）×50（H） |
| Output fibre interface | typ: PM1550 Panda Fiber, FC/APC |
Applications
