T02 human eye safety laser launch antenna
The T02 series of human eye safety laser-launching antennas; an integrated laser module consisting of a passive Q-ray glass laser with a launching antenna and a photovoltaic detector (PD) developed by almonds with their own luminous light; and specialized applications in laser ranging, laser remote sensing and laser radar. The module produces 1535 nm human eye safety wavelength lasers; provides laser synchronous signals; has small size, small dispersive angles, wide temperature work, etc
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Launch antenna pass rate | >90% |
| Repeat frequency | 10Hz |
| Energy stability | 3% |
| Photogram Size | 5mm |
| All over the corner | ≤0.8mrad |
| Beam Mode | TEM00 |
| @PD typ | 3V |
| Weight | 11g |
| Wavelength | 1535nm |
| Laser single pulse energy | 100; 200μJ |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
1064nm YAG Beam Expander JG-BEX-1064-1.2
Beam Expander
Jgzoe
Zoom in: 1.2 Enter beam: 10 Output beam: 20
The amplifier is an optical system consisting of two or more components;
-

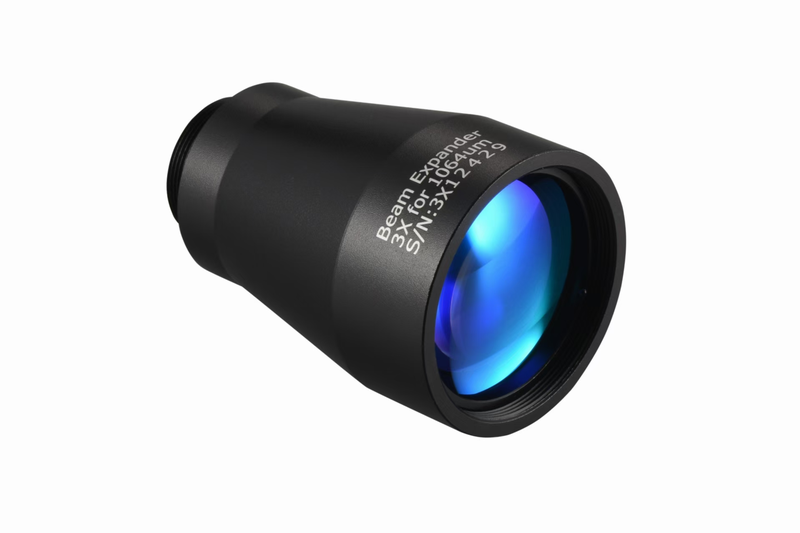

1064nm YAG Beam Expander JG-BEX-1064-1.5
Beam Expander
Jgzoe
Zoom in: 1.5 Enter beam: 10 Output beam: 20
The amplifier is an optical system consisting of two or more components;
-
zoom Beam Expander JG-BEX-1064-2-10Q
Beam Expander
Jgzoe
Zoom in: 2 Enter beam: 24 Output beam: 30
Zoom amplifier is a high-performance optical imaging component designed to meet various imaging needs.
-

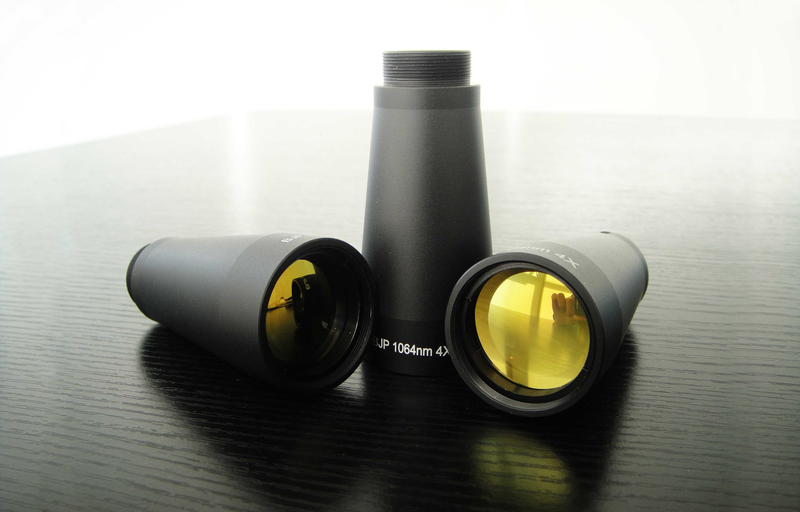

The amplifier mirror
