Lens Assembly Centration Instrument
The lens group centration instruments include two models: the LensCT-AF (with air-bearing rotary stage) and the LensCT-DAF (dual-optical-path centration measuring instrument), consisting of a cold light source, photoelectric collimating tube (including CCD), translation rail and its control box, high-precision air-bearing rotary stage, 4-axis adjustable measurement stage, lens groups and test software. Resolution 0.1um, measurement accuracy 0.5μm, measurement range (focal length) ±3~±450mm, measurement aperture <200mm.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| LensCT-AF - Product Name | Lens group centering instrument (with air-bearing rotary stage) |
| LensCT-AF - Model | LensCT-AF |
| LensCT-AF - Main Components | (1) Cold light source (with fiber tube): 220V/150W; (2) photoelectric collimator (including CCD); (3) translation rail and its control box; (4) high-precision air-bearing rotary stage; (5) 4-axis adjustable measuring stage; (6) lens set: F50/100/200/300/500, etc.; (7) test software, etc. |
| LensCT-AF - Resolution | 0.1um |
| LensCT-AF - Measurement Accuracy | 0.5μm |
| LensCT-AF - Measurement Range (Focal Length, Expandable) | ±3 ~ ±450 |
| LensCT-AF - Measurement Aperture (Expandable on Request) | <200mm |
| LensCT-AF - Equipment Dimensions | 62x40x135 |
| LensCT-AF - Equipment Weight | ~60 |
| LensCT-DAF - Product Name | Dual optical path centration measurement instrument |
| LensCT-DAF - Model | LensCT-DAF |
| LensCT-DAF - Main Components | (1) Cold light source (with fiber tube): 220V/150W; (2) photoelectric collimator (including CCD and mount); (3) dual-axis translation rail and its control box; (4) high-precision air-bearing rotary stage; (5) 4-axis adjustable measuring stage; (6) lens set: F50/100/200/300/500, etc.; (7) test software, etc. |
| LensCT-DAF - Resolution | 0.1um |
| LensCT-DAF - Measurement Accuracy | 0.5μm |
| LensCT-DAF - Measurement Range (Focal Length, Expandable) | ±3 ~ ±450 |
| LensCT-DAF - Measurement Aperture (Expandable on Request) | <200mm |
| LensCT-DAF - Equipment Dimensions | 62x50x170 |
| LensCT-DAF - Equipment Weight | ~130 |
Applications
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
3D /IR Optical Lens
High-Performance Lenses
Metalenx
As the receiving end of the MetaToFTM series;
-

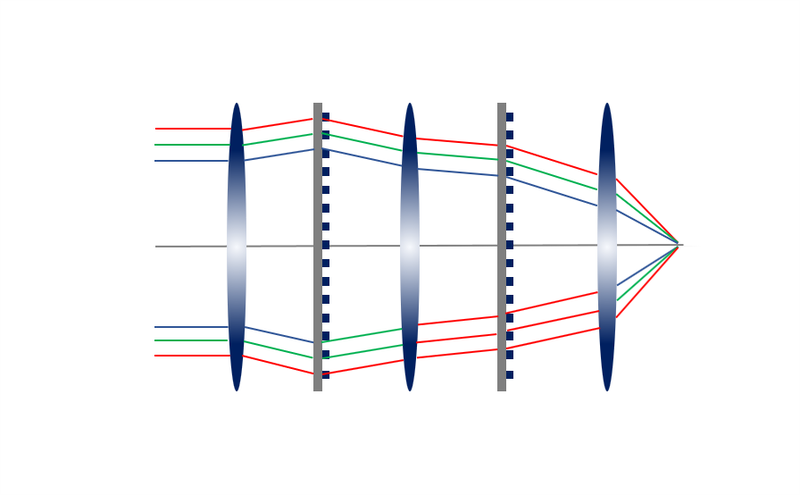

Hybridmeta® mobile-phone lens
High-Performance Lenses
Metalenx
Based on phototracies transfer techniques;
-

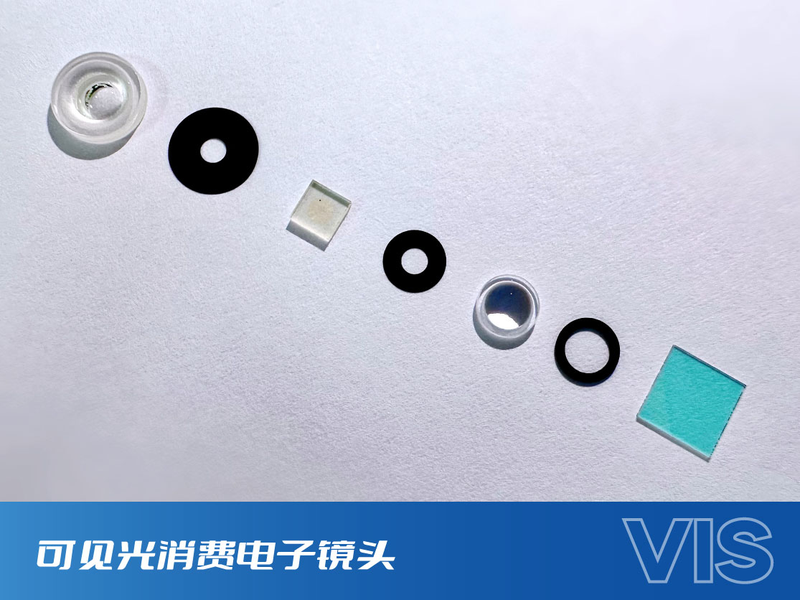

Optical Lens
High-Performance Lenses
Metalenx
Visible photoclipse hybrid systems in consumer electronics;
-

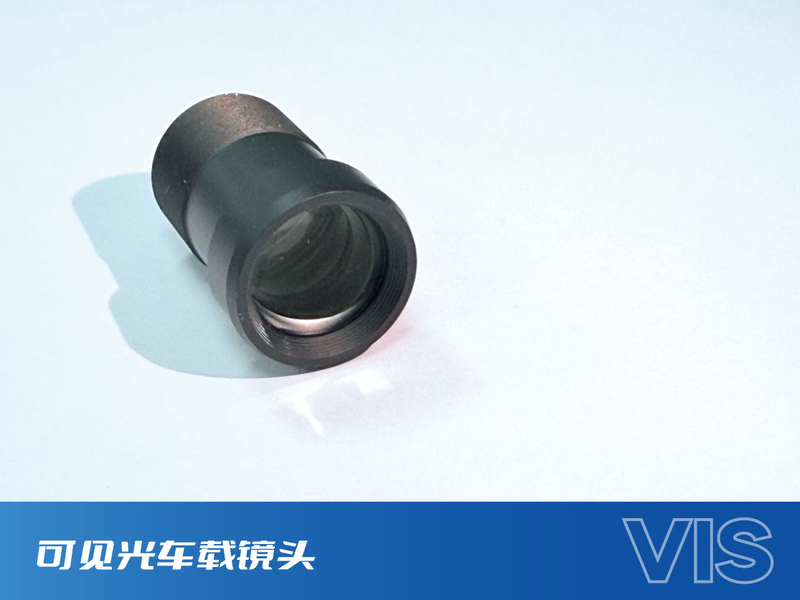

automotive lens
