Large Format T1210L
T1210L high-sensitivity Type-II Superlattice (T2SL) LW megapixel
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Array Specification Resolution | 1280*1024 |
| Pixel Pitch | 10μmx10μm |
| Spectral Response Range | 7.5μm~9.5μm |
| Output Channel and Pixel Output Rate | 8 channels, max output rate per channel 20MHz |
| Frame Rate | 50Hz/60Hz, max ≥100Hz at full frame |
| NETD | F2:28mk |
| Effective Pixel Rate | ≥99.5% |
| Responsivity Non-uniformity | ≤10% |
| F-Number (F#) | F2, F4; other F-numbers customizable |
| FPA Operating Temperature | 70K~80K |
| Cooler Options | Q405/C308 |
| Cooler Type | Rotary integral Stirling cryocooler |
| Steady State Power/Peak Power | ≤7.5W/≤17W |
| Power Supply Cooler Voltage | 12V/24V DC |
| Weight | ≤600g |
| Dimensions | 145*57*80 |
Applications
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
T6ML
Optical Detectors
Qinfrared
Array Specification Resolution: 320x256 Pixel Pitch: 30μmx30μm Spectral Response Range: MWIR 3μm~5μm / 3.7μm~4.8μm; LWIR 7.5μm~9.5μm
T3ML/T6ML high-sensitivity Type-II Superlattice (T2SL) MW/LW dual-color MW and LW infrared imaging, meeting target detection needs in complex backgrounds
-
Large Format T1010M/T2KM-8 (1K/2K)
Optical Detectors
Qinfrared
Array Specification Resolution: 1024*768 Pixel Pitch: 10μm×10μm Spectral Response Range: 3μm~5μm/3.7μm~4.8μm
T1010M/T2KM-8 high-sensitivity Type-II Superlattice (T2SL) MW
-
Large Format T1010M/T2KM-8 (1K/2K)
Optical Detectors
Qinfrared
Array Specification Resolution: 2048*2048 Pixel Pitch: 10μm×10μm Spectral Response Range: 3μm~5μm/3.7μm~4.8μm
T1010M/T2KM-8 high-sensitivity Type-II Superlattice (T2SL) MW
-

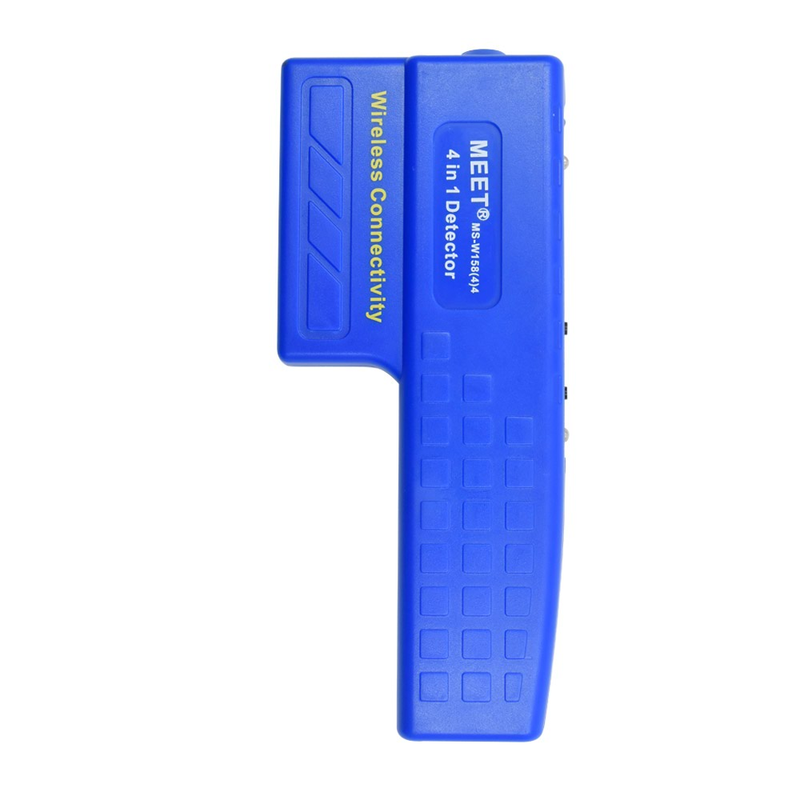

metal detector
