Chromaticity and Luminance Measurement Conoscope
Chromaticity and Luminance Measurement Conoscope The picture uniformity and color accuracy of AR/VR glasses are key dimensions for measuring product quality. A conoscope is a precision optical instrument specially designed to measure the angle-resolved luminance and chromaticity of near-eye display systems, capable of capturing the output characteristics of displays and optical waveguides at different viewing angles. The conoscope designed by Zizaichuanshang Optics combines an ultra-wide-angle fisheye objective (±60° field of view) with a precision beamsplitting system and a high-speed CMOS sensor, acquiring the luminance, chromaticity and contrast distribution data at all angles across the entire eyebox in a single shot. Our conoscope features high dynamic range (HDR) imaging capability, precisely measuring the full range from dark-field light leakage to peak brightness; a built-in standard color calibration database ensures chromaticity accuracy ΔE<0.5. The device can output luminance uniformity cloud maps, color gamut coverage maps and luminance attenuation curves at specific viewing angles, helping engineers quickly locate problems such as edge color shift, local vignetting or light leakage. It is suitable for optical parameter calibration during R&D and functional sampling tests on mass production lines.
Save to Favorites
Overview
Applications
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
AR structure
AR/VR
Sz-dule
Dimensions: 3020mm
Dimensions;
-
16X VR
AR/VR
Fshsgs
Entrance Pupil Diameter: 7mm Zoom in multiple: 16X Objective Diameter: 19mm
Super-high-resolution image lens, high-resolution, low malformation
-
The new Roban-Waveguide series flight-second laser light-screech system
AR/VR
Jc-ultrafast
Light: Flight seconds laser amplifier (1030 nm/515 nm, 1-200 kHz) Process materials: Transparent hard materials such as stone glass and lithium acrylic acid Axis repeat location precision: ±50 nm; ±100 nm
The Royal-Waveguide series of flight-second direct-writing systems are equipped with a high-frequency flight-second laser amplifier (optional formulation) and a high-precision high-trading air locator straight-line power transfer platform; the flight-second laser can focus on the direct light wave guide and its arrays within transparent materials. Applications for integrated optical and quantum optical applications at universities and research institutes
-
Flight-second laser-light-guided directness system
AR/VR
Jc-ultrafast
Light: Flight seconds laser amplifier (1030 nm/515 nm, 1-200 kHz) Process materials: Transparent hard materials such as stone glass and lithium acrylic acid Axis repeat location precision: ±50 nm; ±100 nm
The Royal-Waveguide series of flight-second direct-writing systems are equipped with a high-frequency flight-second laser amplifier (optional formulation) and a high-precision high-trading air locator straight-line power transfer platform; the flight-second laser can focus on the direct light wave guide and its arrays within transparent materials. Applications for integrated optical and quantum optical applications at universities and research institutes
-

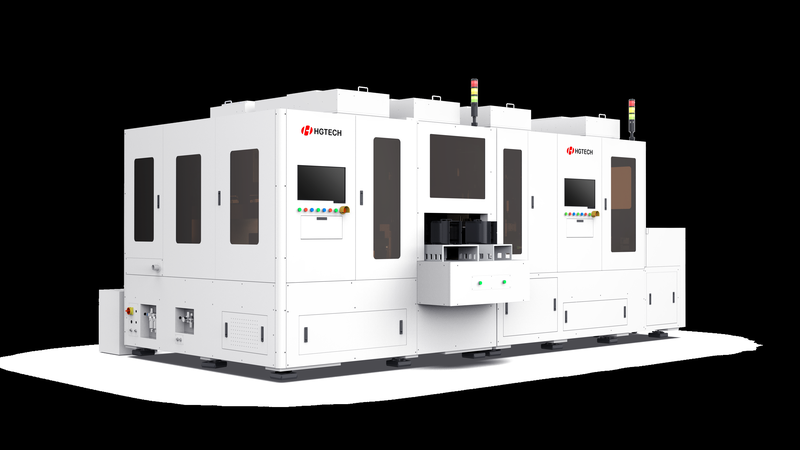

AR-Ray Waves high-to-penetrating glass laser processing smart line
AR/VR
Hglaser
Average output power: 10W Pulse width: ＜10ps Repeat frequency: 400‑2000KHz
Demand for processing of AR glasses; introduction of the world ' s first light-wave-guided crystal-line laser-processed smart line; laser-coded/reading equipment for 8 ~12inch glass-close, cutting to full autoprocessing
