Endoscope Zoom Adapter
Endoscope zoom adapter. The endoscope zoom adapter connects the endoscope eyepiece to an HD camera to achieve continuous adjustment of the intraoperative field of view and image magnification without replacing mirrors of different viewing directions or magnifications. Our zoom adapter uses a floating lens structure of 5 groups and 8 elements with a zoom ratio of up to 1.5x to 4x, continuously magnifying local lesions while keeping the image plane clear, helping doctors observe microvessels and tissue atypia. The lens body integrates dual modes of motorized focusing and a manual zoom ring for easy operation, and supports standardized adaptation to the eyepiece interfaces of mainstream brands (Storz, Olympus, Wolf, etc.). Key optical specifications: transmittance >90% (full band), distortion <2%, and the focusing travel does not change the original endoscope working distance. The inner wall of the lens is treated with multiple stray-light suppression to eliminate internal reflections. In addition, the adapter outputs a C-mount or other standard camera interface and can connect to 4K ultra-HD camera systems for surgical live streaming and recording of fine structures. This product multiplies the functionality of endoscope equipment and is the top choice for upgrading minimally invasive operating rooms in general surgery, urology, and neurosurgery.
Save to Favorites
Overview
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
Medical Endoscope Lens
Borescopes
Sz-dule
Features;
-
WSEE15 Wireless Endoscope
Borescopes
Greatideatech
Resolution: 2M pixel CCOS camera Transmission distance: > 5m
-

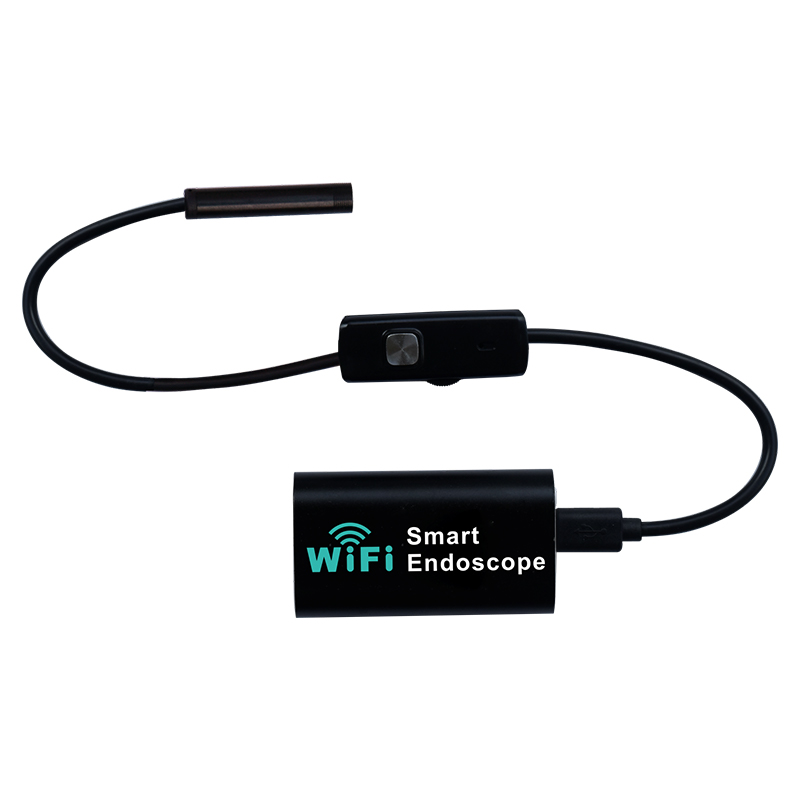

WSEE20 Wireless Endoscope
