Z-Axis Vertical Lift Stage
The SWI-DV series high-precision vertical lift stages achieve long-travel, precise vertical motion at the lowest possible profile height. Three different models offer different travel and load capacities, and each model has multiple configurations, making the SWI-DV series the ideal choice for all high-performance vertical motion applications. ■ Exceptional fast positioning capability Unlike conventional vertical lift stages driven by AC/DC servo motors, the SWI_DV series vertical lift stages use coreless segmented torque motors with a specified preloaded precision ground ball screw drive. Coreless segmented torque motors offer high moment of inertia, excellent acceleration performance, fast dynamic response and high control resolution; combined with a crossed-roller sliding-friction bearing system, they achieve extremely smooth motion and outstanding high dynamic response. A specially developed electromagnetic brake provides excellent power-off protection. ■ Long-travel vertical lift motion in a low profile Unlike other types of vertical motion stages, the SWI-DV uses coreless segmented torque motors with precision ground ball screws, combined with a crossed-roller sliding-friction bearing system, achieving extremely smooth motion and outstanding high dynamic response. The mechanism directly drives the moving carriage, achieving long travel while maintaining minimum height. The design that minimizes working point height further reduces Abbe error, thereby helping improve overall system accuracy. ■ Outstanding dynamic performance The SWI_DV series vertical lift stages use SP-grade crossed-roller guideways and precision ground ball screws, providing excellent geometric performance and outstanding minimum incremental motion. Compared with other products using rolling-friction bearing systems, the application of coreless segmented torque motors with millisecond-level control response provides outstanding dynamic response while maintaining minimum incremental step of better than 30 nm and positioning stability. This makes the SWI_DV series vertical lift stages the ideal choice for many high-precision motion applications, such as vertical positioning of sensors and cameras, optical focusing and optical interferometry. ■ Flexible system design The SWI-DV series can be seamlessly integrated into multi-axis motion platforms, motion systems and equipment. It can be mounted directly on the SWI-SL and SWI-LM series stages developed by BHC, and is available with optional work surfaces on which various rotary tables or other process equipment can be integrated for rapid system setup and development.
Save to Favorites
Overview
Specifications

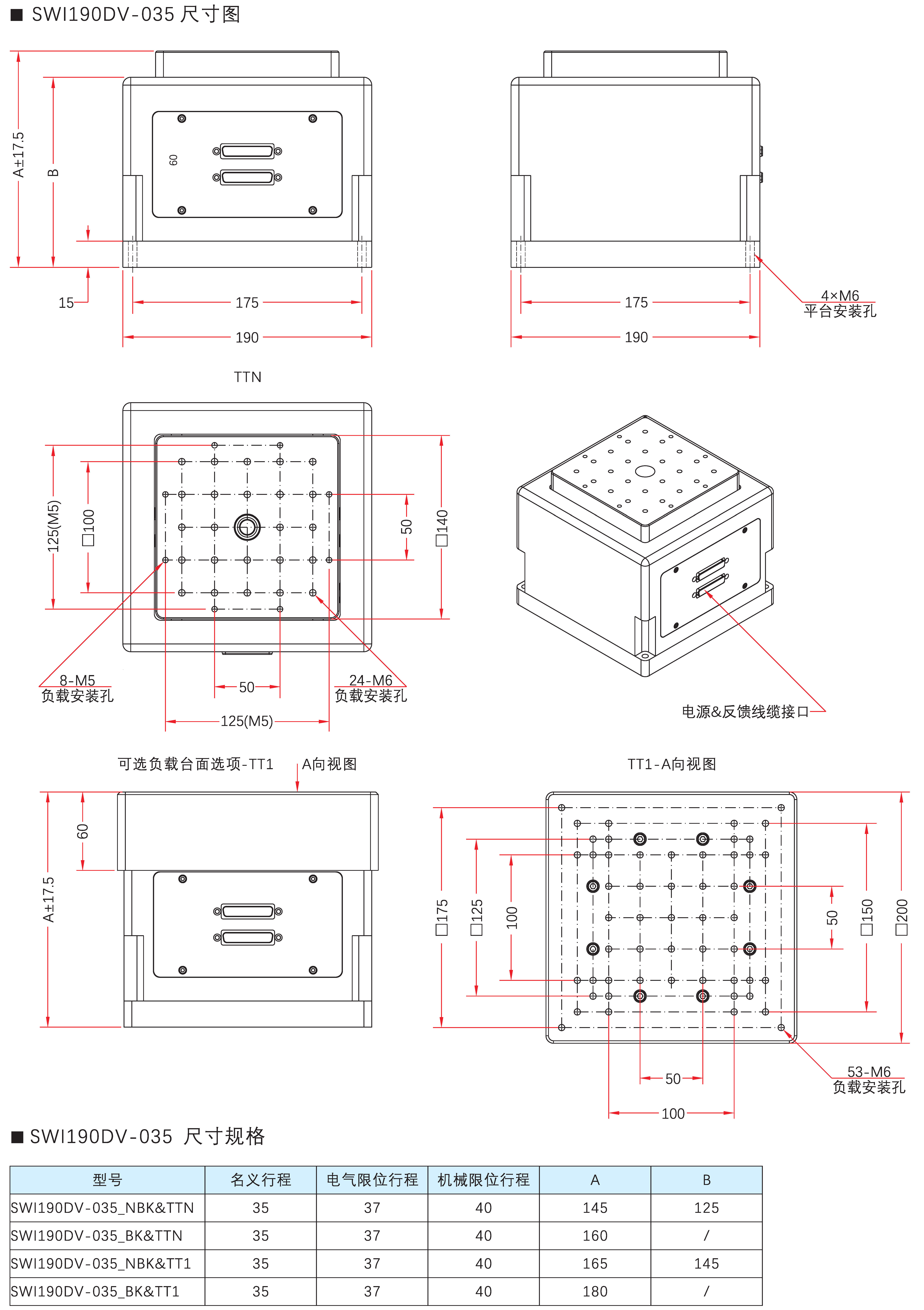

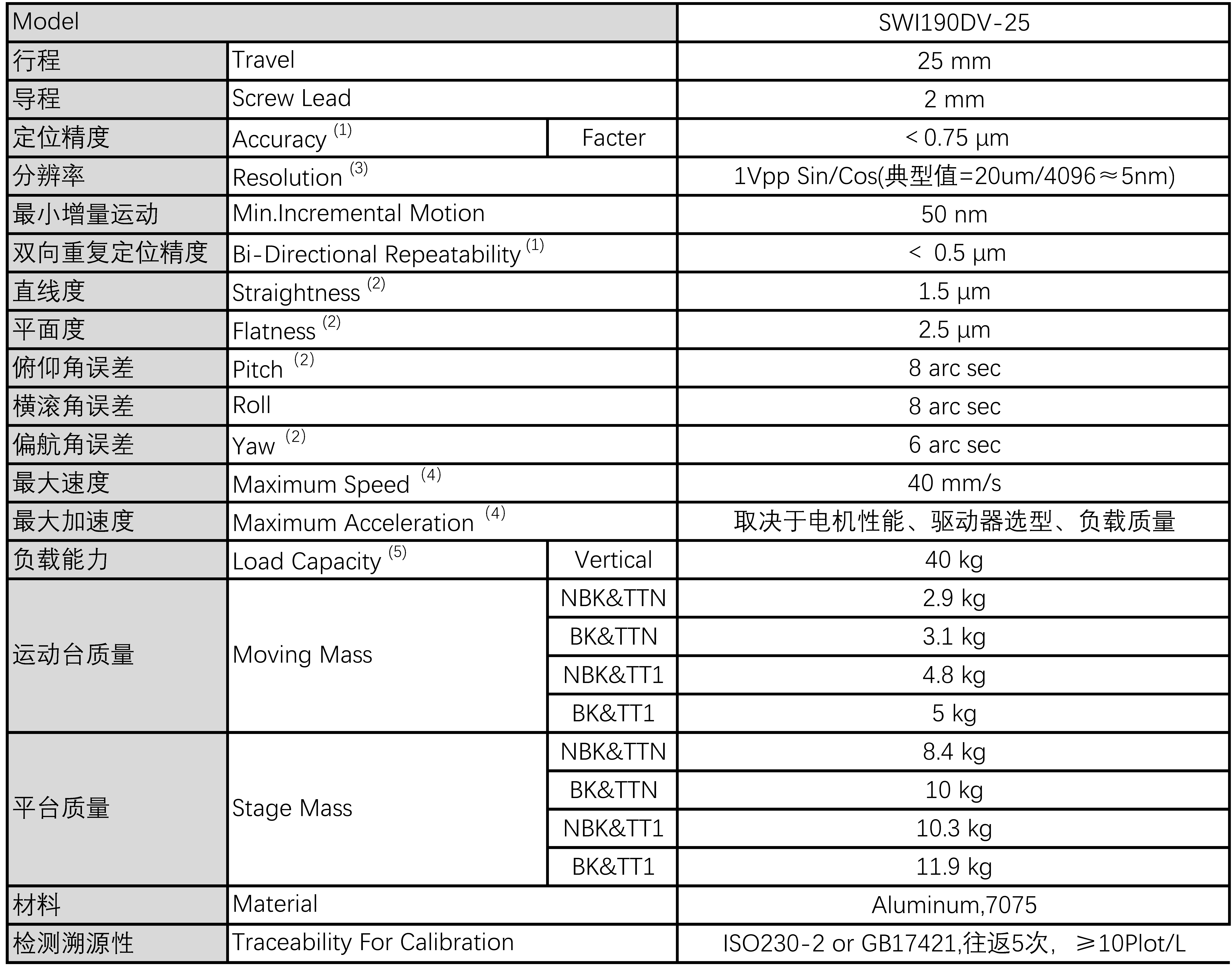

| Parameter | Value |
|---|---|
| Traceability For Calibration | ISO230-2 or GB17421,往返5次,≥10Plot/L |
Key Features
Datasheet
Supplier Information
Related Products
-
IS10P-H3
Sensors
Opssz
Repeat Precision: ±(0.3% +1)℃( 1)
Innovative short wave cryogenic infrared thermometers Temperature measurements suitable for light objects;
-
SERF Atomic Magnetometer System
Sensors
Qtlaser
Channels: 1-512 Dynamic measurement range: ±3.0nT Average sensitivity: 10fT/Hz1^1/2
The SERF atomic magnetometer uses alkali metal atoms (Rb-87) for the outer electron spin-off properties; pumps lasers; and produces alkali metal atoms for irradiation. Under the influence of a weak external magnetic field; atoms of alkaline metal moving in Ramal; changes in the absorption of detectable lasers; thus achieving high sensitivity magnetic field measurements
-
Distributional acoustic sensor system DAS
Sensors
Ovlink
Channels: 1/2; amplifiable Detection frequency: 0-100kHz Response band: 0.01Hz-50kHz; 50kHz@1km
The MS-DAS system is a distributed acoustic sensor product with world leaders. The product uses autonomously designed micro-structured fibres, which are continuously distributed backwards; optical time-resilient sensing techniques based on photo-connected detection; and capable of continuously recording acoustic signal transmissions and acoustic spatial distribution along long-range fibres. The system is minimally detectable in response to Quadaana; response bands cover subacoustic to ultrasound bands; distributive measurements that can be applied to seismic waves, microvibration and microresponses; and applications in areas such as resource exploration, seismic monitoring, pipe safety and perimeter security have great potential. The distributed acoustic sensor system has desktop-based DAS-2000 III and rack-based DAS2100-R product types. Microstructure disassembly enhancement; ultra-high-input noise-compatible detection technology; ultra-high sensitivity self-referenced phase decomposition; comot noise inhibition multi-area hybrid reuse; broadband detection integrated design; simple deployment installation
-
Distributional acoustic sensor system MS-DAS 2100-R
Sensors
Ovlink
Channels: 1/2; amplifiable Detection frequency: 0-100kHz Response band: 0.01Hz-50kHz; 50kHz@1km
The MS-DAS 2100-R system is a distributed acoustic sensor product with a world leader. The product uses autonomously designed micro-structured fibres that are continuously distributed back and back; light-time reflection sensor technology based on photo-symmetric detection; and capable of continuously recording acoustic signal transmission and acoustic spatial distribution along long-range fibres. The system is minimally detectable for the transformation of the Quadaana response; the response band covers the infrasound to ultrasound bands; distributed measurements that can be applied to seismic waves, microvibration and microresponses; and the potential for application in areas such as resource exploration, seismic monitoring, pipe safety, perimeter security, etc. Microstructure disassembly enhancement; ultra-high-input noise-compatible detection technology; ultra-high sensitivity self-referenced phase decomposition; comot noise inhibition multi-area hybrid reuse; broadband detection integrated design; simple deployment installation
-
Distributional acoustic sensor system MS-DAS 3000
Sensors
Ovlink
Channels: 1 Detection frequency: 0-100kHz Response band: 0.001-50kHz
MS-DAS 3000 is a new generation of distributed acoustic sensor systems based on pulse compression techniques; breaking through traditional DAS technology bottlenecks; and reshaping long distance high-precision fibre-optic sensor standards. The system is based on innovative pulse compression modem techniques; synchronized hyperspatial resolution and corrosive transformation detection sensitivity; successfully eliminating the cumulative decay of conventional DAS; a single end decomposition distance exceeding 100 km; and significantly reducing the deployment cost of the ultra-long range monitoring scene. The system can be widely applied to scenarios such as seismic wave imaging, the monitoring of oil and gas deposits dynamics, the location of leaks in urban pipelines, the monitoring of sea cables, and the security of borders against passive detection. Fibre-optic nerve; all-weather distributed “heart” capability in key areas such as energy exploration, urban lifeline monitoring, geo-disaster early warning; and intelligent protection of industrial infrastructure. Super-sensitivity, hyper-spatial resolution, ultra-long-range detection, ultra-low-frequency response, symmetry, noise isolation
