Z-Axis Positioning Stage
The SWI-SV series high-precision vertical lift stages achieve long-travel, precise vertical motion at the lowest possible profile height. Four different models offer different travel and load capacities, and each model has multiple configurations, making the SWI-SV series the ideal choice for all high-performance vertical motion applications. The SWI_SV series vertical lift stages use SP-grade crossed-roller guideways and precision ground ball screws, providing excellent geometric performance and outstanding minimum incremental motion, with minimum incremental step and positioning stability better than 30 nm. The high-precision 5-phase stepper motor with a specified preloaded precision ground screw drive, combined with a directly coupled feedback system, completely avoids the position jitter errors caused by the PID closed-loop control of conventional AC/DC servo drives; thanks to its pulse-command-type 5-phase stepper motor, the stage remains almost perfectly stationary after fast positioning. The SWI-SV uses a mechanism that directly drives the moving carriage, achieving long travel while maintaining minimum height; the design that minimizes working point height further reduces Abbe error and helps improve overall system accuracy. The SWI-SV series can be seamlessly integrated into multi-axis motion platforms, motion systems and equipment. It can be mounted directly on the SWI-SL and SWI-LM series stages developed by BHC, and is available with optional work surfaces on which various rotary tables or other process equipment can be integrated for rapid system setup and development.
Save to Favorites
Overview

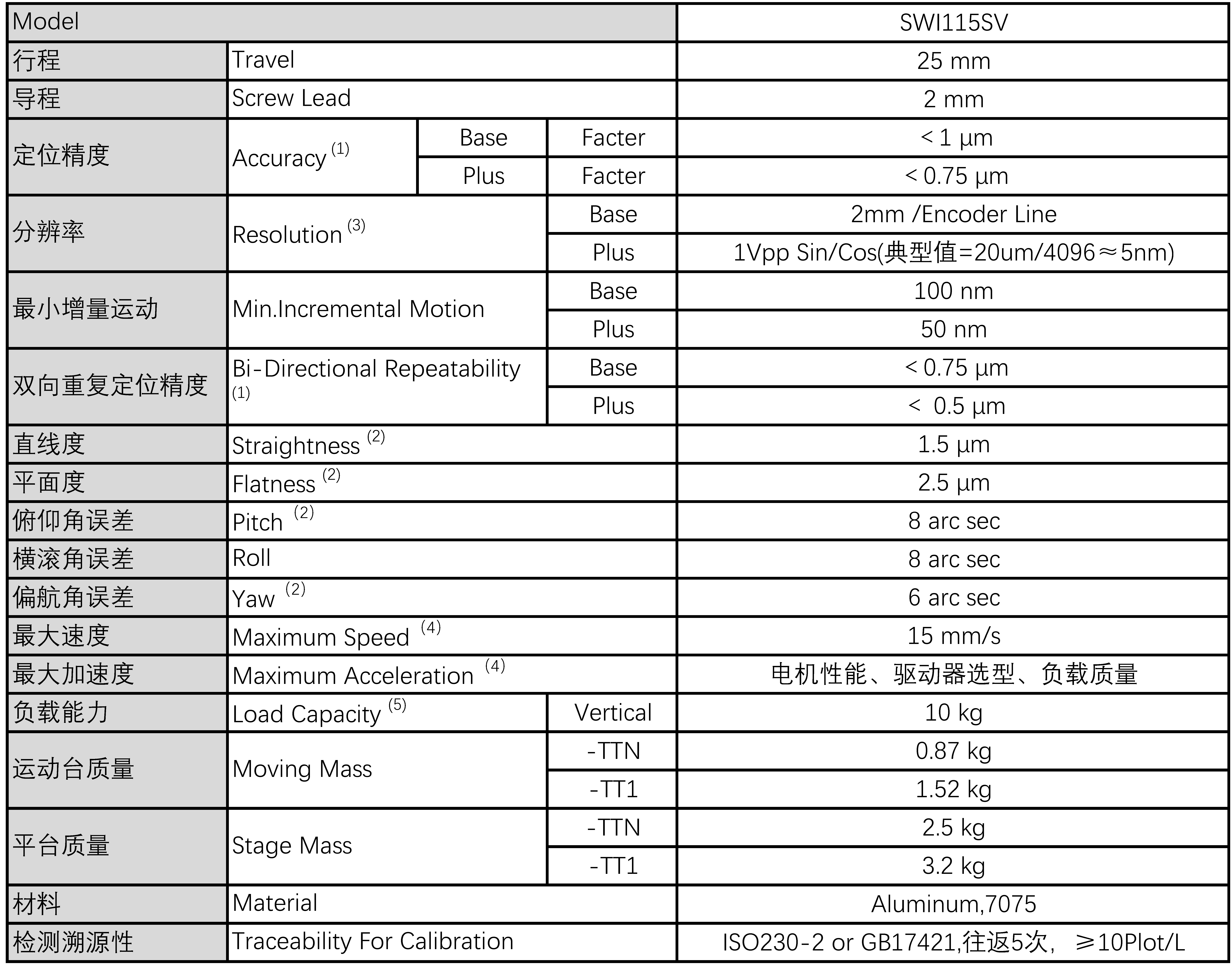

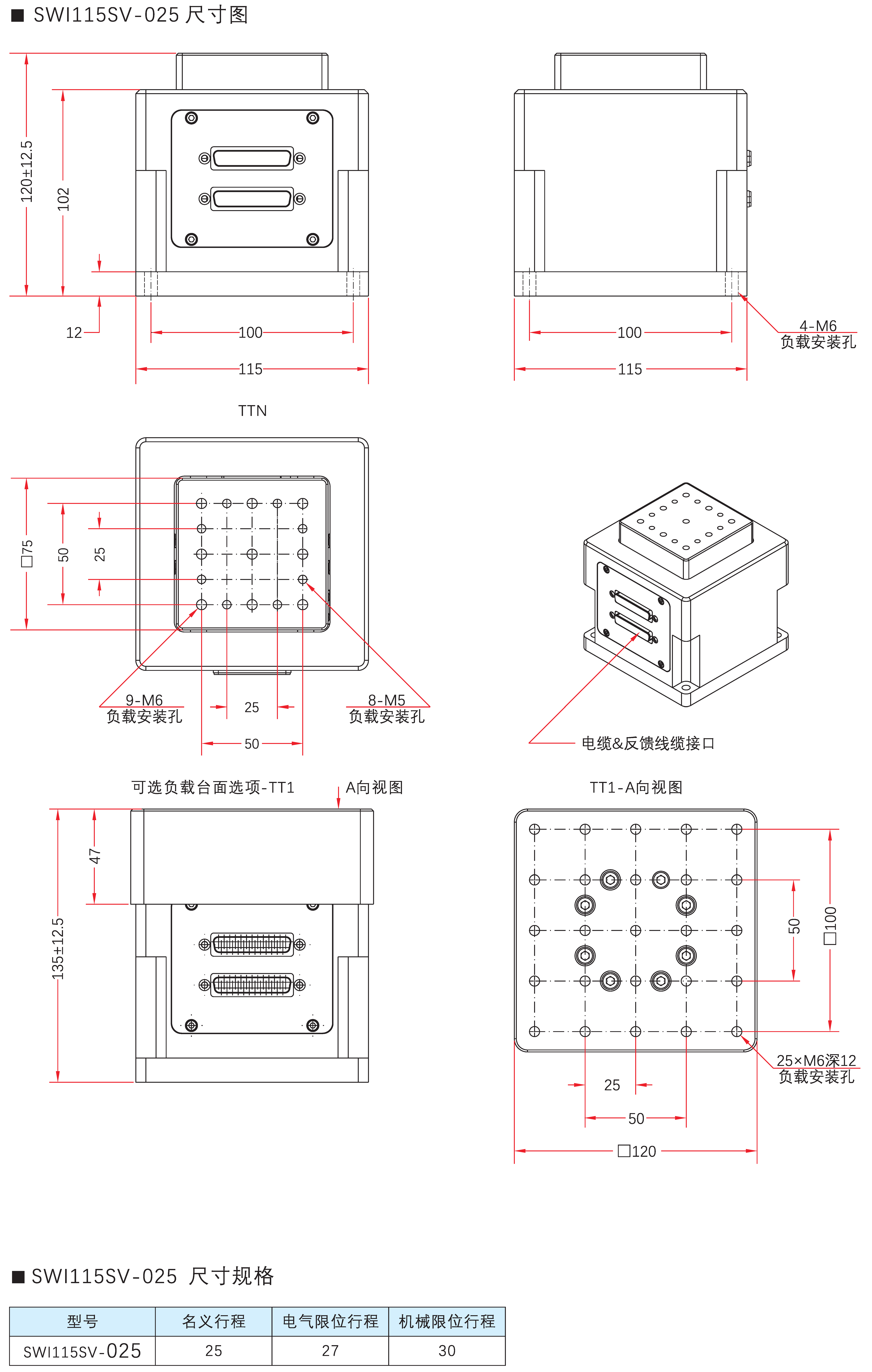

Specifications
| Parameter | Value |
|---|---|
| Travel | 25mm |
| Screw Lead | 2mm |
| Accuracy | <1μm (Base, Factory) |
| Accuracy | <0.75μm (Plus, Factory) |
| Min. Incremental Motion | 100 nm (Base) |
| Min. Incremental Motion | 50 nm (Plus) |
| Bi-Directional Repeatability | <0.75μm (Base) |
| Bi-Directional Repeatability | <0.5μm (Plus) |
| Straightness | 1.5μm |
| Flatness | 2.5μm |
| Roll | 8 arc secarc sec |
| Yaw | 6 arc secarc sec |
| Maximum Speed | 15 mm/s |
| Load Capacity | 10kg (Vertical) |
| Moving Mass | 0.87 kg (-TTN) |
| Moving Mass | 1.52 kg (-TT1) |
| Stage Mass | 2.5 kg (-TTN) |
| Stage Mass | 3.2 kg (-TT1) |
| Traceability For Calibration | ISO230-2 or GB17421,往返5次,≥10Plot/L |
