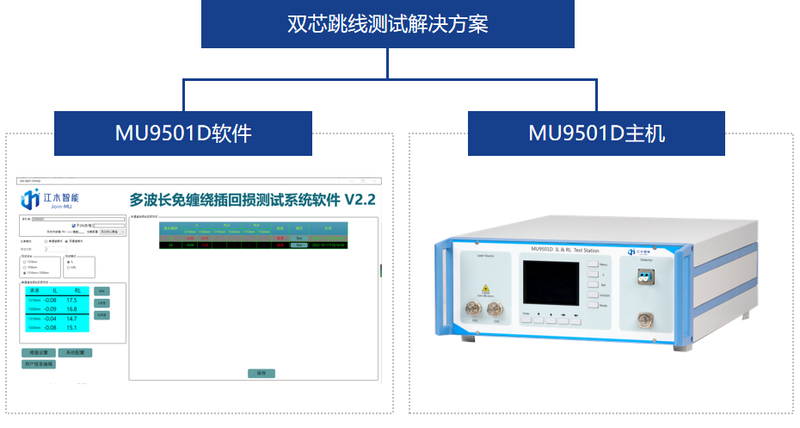

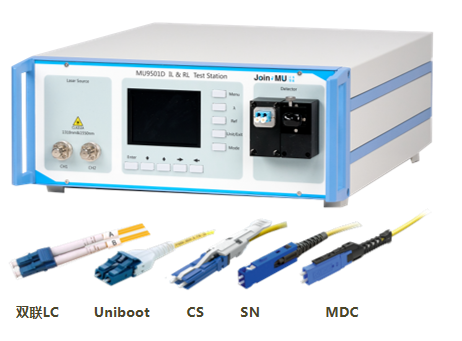

MU9501D Dual-Fiber Tangle-Free Insertion / Return Loss and Polarity Tester
MU9501D Series & Tester Join-MU Module Product, Device
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector | InGaAs |
| Detector | ( LC ) |
| Detector | 2mm/ (MT/MPO/FC/SC/LC/ST ) |
| Power | 850-1700nm |
| Dynamic Range | +20~-55dBm( ) |
| Dynamic Range | +5~-80dBm(2mm) +20~-55dBm( ) |
| Display | 3.5 TFT |
| Wavelength | 1310&1550 850&130nm |
| Light Source | +0.01dB/15min +0.05dB/8hour |
| Startup Stabilization Time | 15min |
| Wavelength | 1310&1550 850&1300nm |
| Return Loss Test Range | +12~80dB +12~55dB |
| model | single mode |
| model | multimode |
| linearity | ±0.04(+5~-55dBm(2mm)/+20~-35dBm(integrating sphere)) |
| total uncertainty | ±0.08(-55~-65dBm(2mm)/-35~-45dBm(integrating sphere))/+3%(-5~-55dBm(2mm)/+20~-35dBm(integrating sphere)) |
| Support fiber types | Single mode fiber & multimode fiber |
| unit of measurement | dBm/dB |
| Insertion loss repeatability | +0.01dB/15min |
| Polarity determination | Cross & Thru |
| polarity identification | support |
| Other interfaces | Expandable RS485 interface device cascading |
| Return loss test accuracy | +1dB(+12~60dB(SM)) 1dB+12~45dB(MM)) |
| Standard wire length | 2~30m |
| Cable under test | 2m (end APC) 3m (end UPC) |
| Cable under test | 1000m |
