MAP900-MSOP Multi-Channel Analyzer PER 50dB

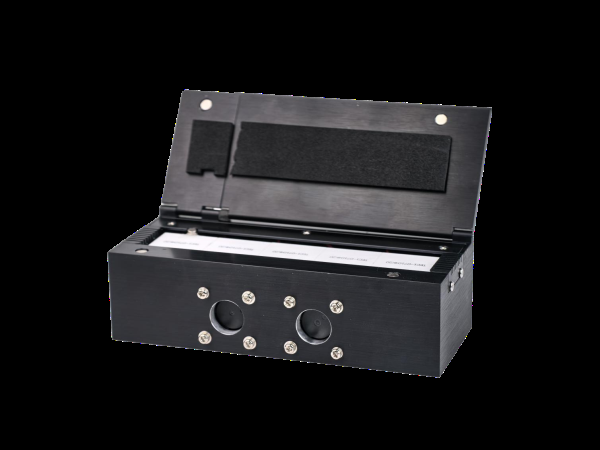

MAP900-MSOP Multi-Channel Analyzer High-Power Polarization-Maintaining Light Source Coupling Application Product, CPO Application, ELSFP Module Coupling. Equipment Module, 8 Module
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Band | 1270~1350nm |
| Band | 1510~1590nm |
| Dynamic Range | 0~50dB |
| Power | -5~+26dBm |
| Power | 0.25dB |
| Power Wavelength | 1270~1590nm |
| Operating Temperature | 0~40°C |
| Storage Temperature | -20~60°C |
| Weight | <10kg |
| Dimensions | 450300100 mm |
| Optical interface | FC/UPC |
| Optical interface | FC/APC |
| Uncertainty | 0.5dB (PER=0~30dB) / 1dB(PER=30~50dB) |
| Polarization angle test uncertainty | ±(0.1+4% angle) |
| power supply | 100~240V AC,50~60Hz |
