MF2-1470H-15C-40022

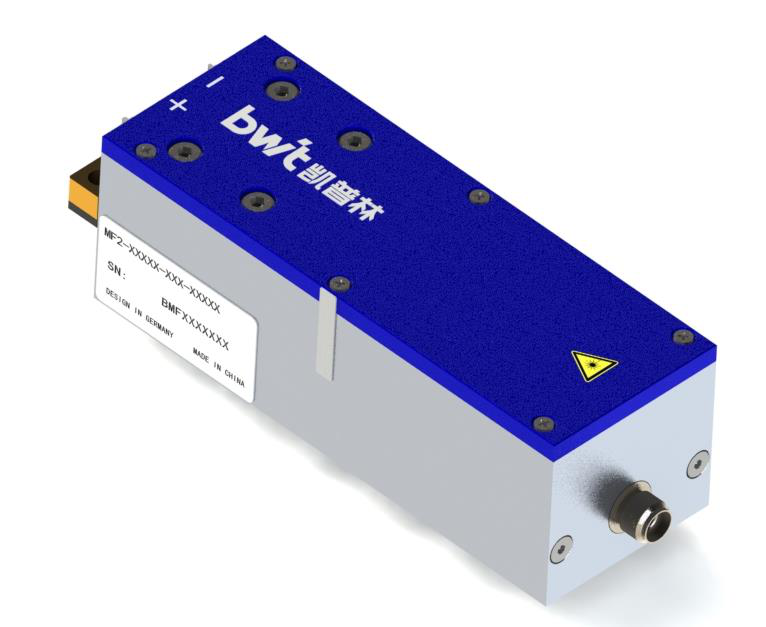

The MF2-1470H-15C-40022 is a conduction-cooled single-bar fiber-coupled laser diode module developed by BWT. It delivers 15W CW output power at a center wavelength of 1470nm through a detachable 400μm 0.22NA fiber with an HP-SMA905 connector and free-standing fiber tips. Featuring high power, high brightness, a sealed and insulated housing, the module supports optional accessories including a red pilot beam, photodiode (PD) power monitoring, fiber temperature sensor, housing temperature sensor and fiber interlock monitoring, making it a reliable and integration-friendly laser source for medical and scientific research applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CW Continuous Output Power | 15W |
| Spectral Width (FWHM) | <15nm |
| Temperature Wavelength Drift Coefficient | ~0.58nm/°C |
| Current Wavelength Drift Coefficient | ~0.45nm/A |
| Electro-optical Conversion Efficiency | >18% |
| Threshold Current | <11A |
| Fiber Core Diameter | ≥400μm |
| Fiber Connector | HP-SMA905 with Free Standing Fiber Tips |
| ESD | 500V |
| Baseplate Operating Temperature | 20-30°C |

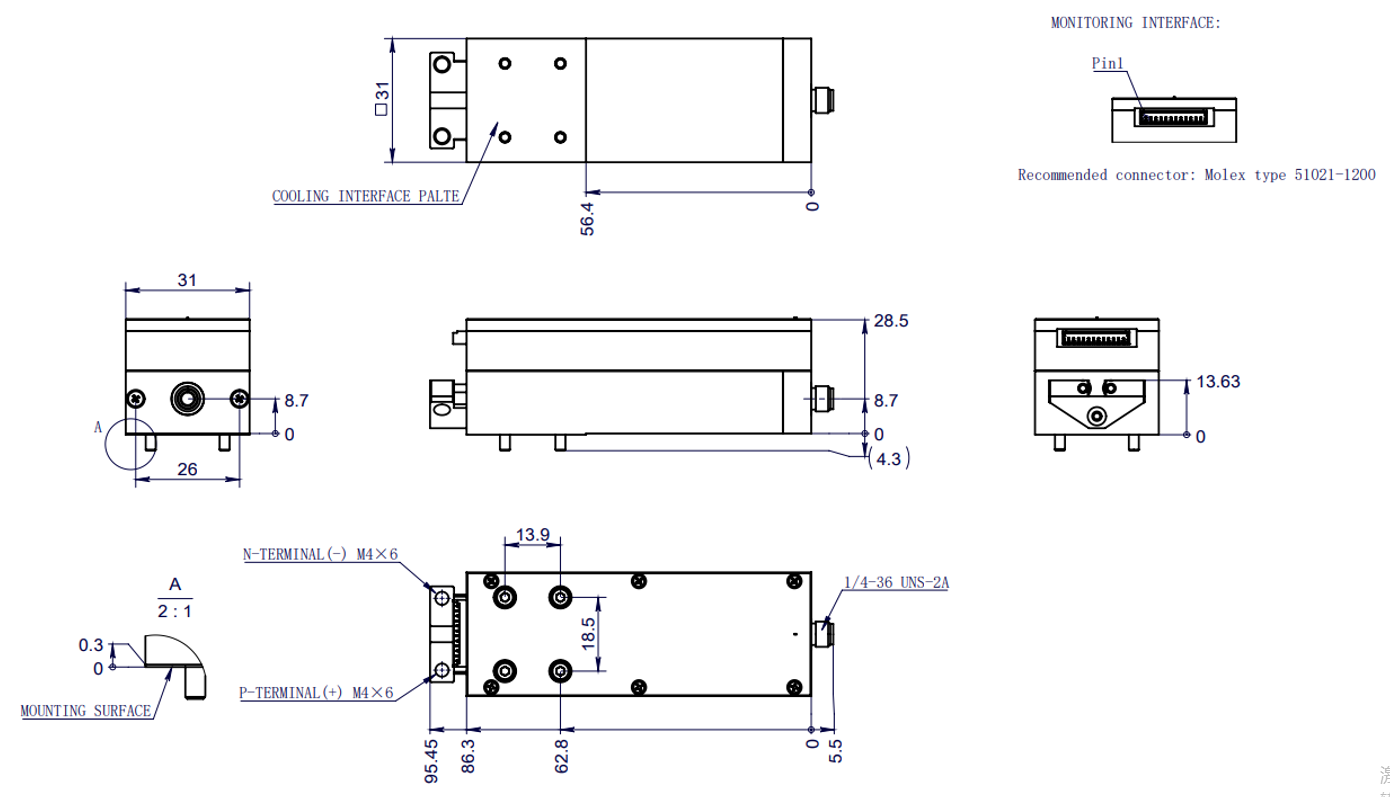

| Dimensions (L×W×H) | 95.45×31×28.5mm |
| NTC Laser Diode Thermistor (Pin 2/3) | 10kΩ, Epcos B57861S0103F040 |
| Monitoring Photo Diode (Pin 4/5) | 630nm~1060nm: Lightsensing LSSPD-1.2; 1200nm~1600nm: Lightsensing LSIPD-L0.3 |
| NTC Fiber Thermistor (Pin 6/7) | 10kΩ, Epcos B57861S0103F040 |
| Fiber Sensor (Pin 8/9) | 2×micro switch: 10μA 2VDC to 50mA 12VDC (Resistive load) |
| Pilot Intensity Control (Pin 10) | available upon request |
| Pilot Laser Supply (Pin 11) | +5V; 650nm (635nm and other wavelengths upon request) |
| Pilot Laser GND (Pin 12) | Inom <50mA, Unom 3V~5V |
