DS3-51512-LD

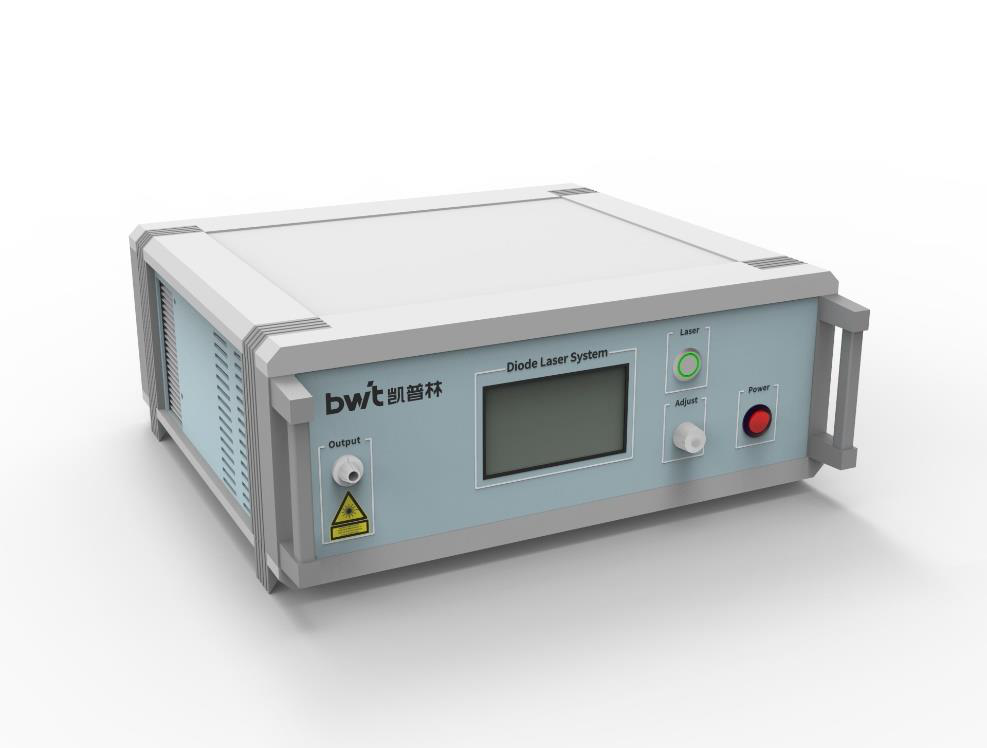

The BWT DS3-51512-LD is a DS3 series fiber-coupled semiconductor laser subsystem delivering 50W output at 915/976nm through a 105/200μm, 0.22NA fiber with SMA905/HP-SMA905 connector options. It supports constant-current drive, continuous, pulse and single-pulse operation, touchscreen/RS232/I-O control, a 635nm aiming beam, air cooling, and customized wavelength, fiber and connector options for industrial laser processing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power (W) | 50 |
| Center Wavelength (nm) | 915/976 |
| Wavelength Range (nm) | ±10 / Customized |
| Spectral width (FWHM) (nm) | ≤6 |
| Power Stability (25℃) (%) | ±3 (5 hours) |
| Power Adjustment Range (%) | 10~100 |
| Fiber Core Diameter (μm) | 105/200 |
| Numerical aperture | 0.22 |
| Fiber Length (m) | 2 / Customized |
| Connector | SMA905 / HP-SMA905 / Customized |
| Input Voltage (V) | 200~240 (50-60Hz) / Customized |
| Power Consumption (W) | <250 |
| Drive Mode | 恒流 |
| Operation Mode | 连续/脉冲/单脉冲 |
| Control Mode | 触屏,RS232,I/O |
| Pulse Width | 20μs-950ms (脉冲) / 20μs-999ms (单脉冲) |
| Pulse Frequency (Hz) | 1~20K (占空比大于0.01%) |
| Current Rise/Fall Edge (μs) | ≤10 |
| Aiming Beam Wavelength (nm) | 635±10 |
| Aiming Beam Output Power (mW) | ≤2 |

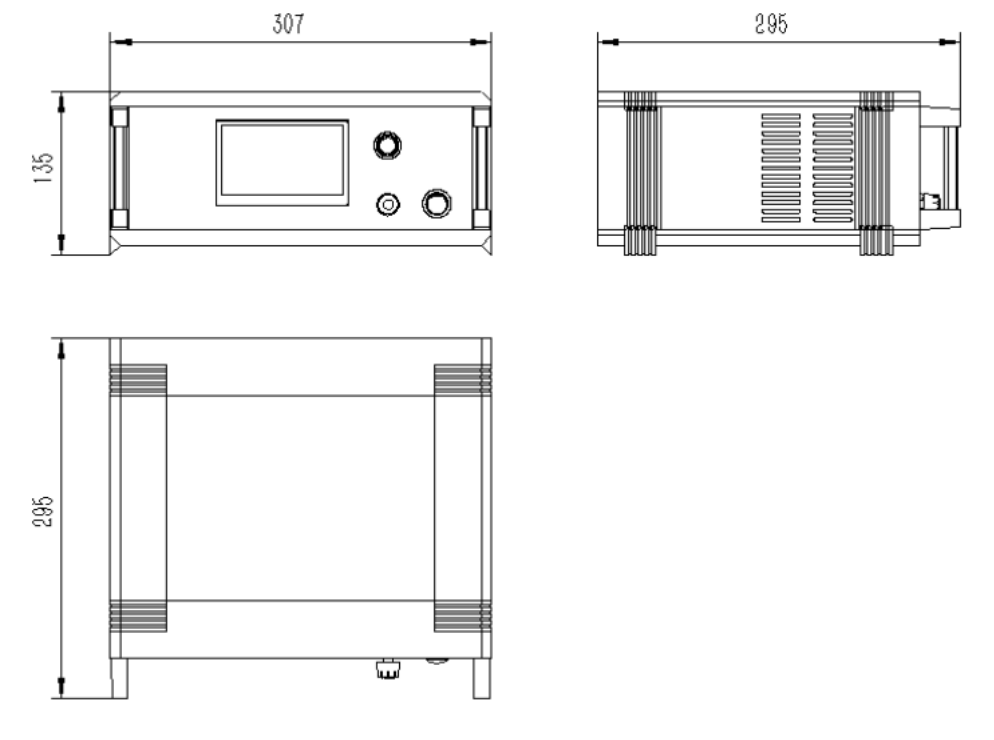

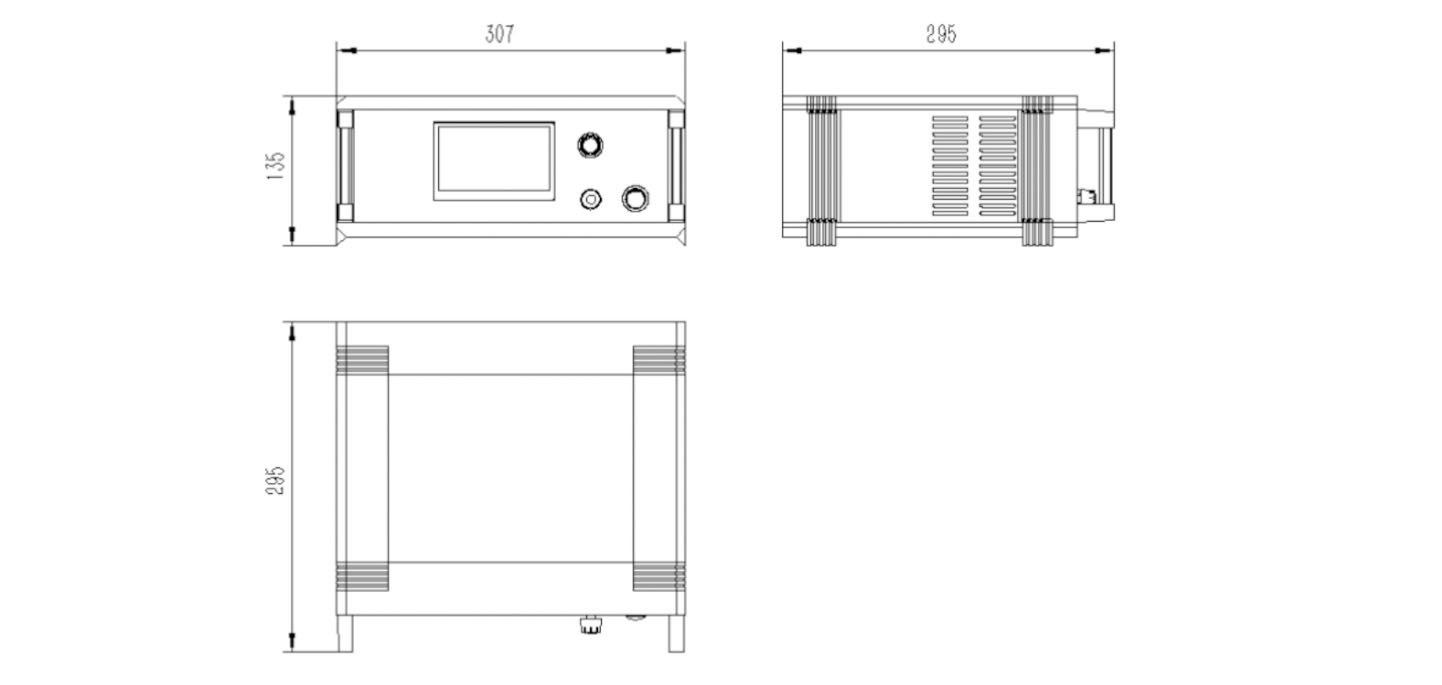

| Dimensions (L×W×H) (mm) | S size 307*295*135 |
| Weight (kg) | <4.8 |
| Cooling Requirement | 风冷 |
| Operating Ambient Temperature (℃) | 15~30 |
| Storage Temperature (℃) | 5~50 |
| Cooling Requirement (Installation Clearance) | 风冷；风扇外侧留出10cm空间 |
| Relative Humidity (%) | 5~80 |
| Laser Safety Class | 4 (EN 60825-01) |
