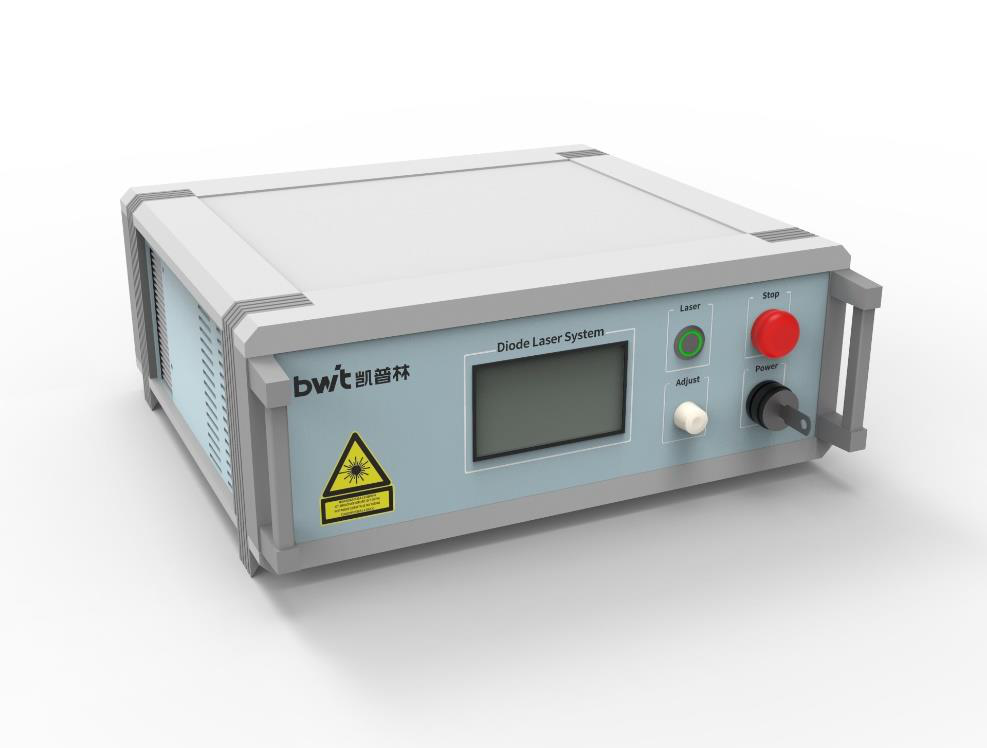

DS3-51514-LD DS3 Semiconductor Laser System
The DS3-51514-LD is a 300W fiber-coupled diode laser system from BWT's DS3 semiconductor laser system family. It delivers 915/976nm laser output through a 200μm core diameter, 0.22NA fiber with an SMA905 connector, and supports CW, pulse and single-pulse operation modes with control via touch screen, RS232 and I/O interfaces. Featuring water cooling, power adjustment from 10% to 100%, ±3% power stability (5 hours) and a 635nm red aiming beam, the compact M-size chassis (387×373×153mm, <10.2kg) is an ideal laser source for plastic welding, laser soldering and metal welding. Wavelength, fiber parameters, connectors and chassis sizes can be customized upon request.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power (W) | 300 |
| Center Wavelength (nm) | 915/976 |
| Wavelength Range (nm) | ±10 / Customized |
| Spectral width (FWHM) (nm) | ≤6 |
| Power Stability (25℃) (%) | ±3 (5hours) |
| Power Adjustment Range (%) | 10-100 |
| Fiber core diameter (μm) | 200 |
| Numerical aperture | 0.22 |
| Fiber Length (m) | 2 / Customized |
| Connector | SMA905 / Customized |
| Input Voltage (V) | 200-240 (50-60Hz) / Customized |
| Power Consumption (W) | <1000 |
| Drive Mode | 恒流 |
| Operation Mode | 连续/脉冲/单脉冲 |
| Control Mode | 触屏 RS232,I/O |
| Pulse Width | 20μs-950ms(脉冲) / 20μs-999ms(单脉冲) |
| Pulse Frequency (Hz) | 1-20K(占空比大于0.01%) |
| Current Rise/Fall Time (μs) | ≤10 |
| Pilot Light Wavelength (nm) | 635±10 |
| Pilot Light Output Power (mW) | ≤2 |

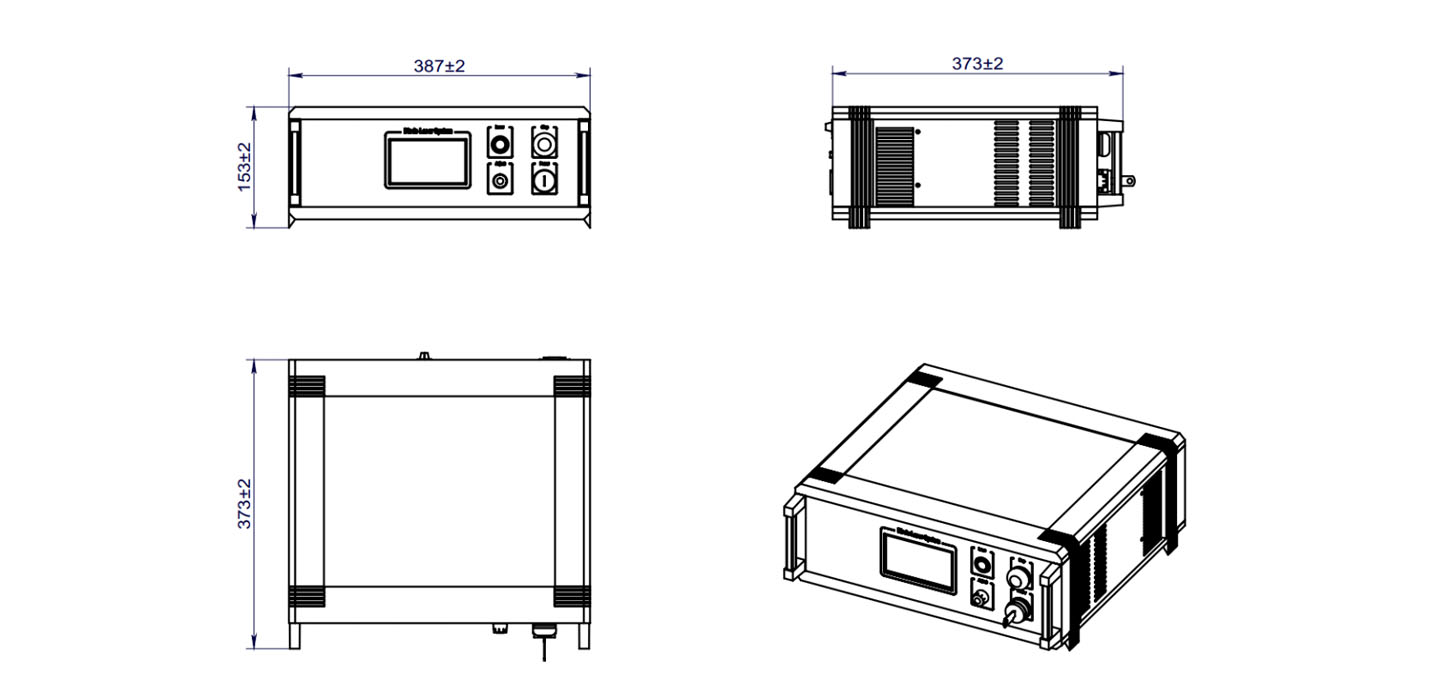

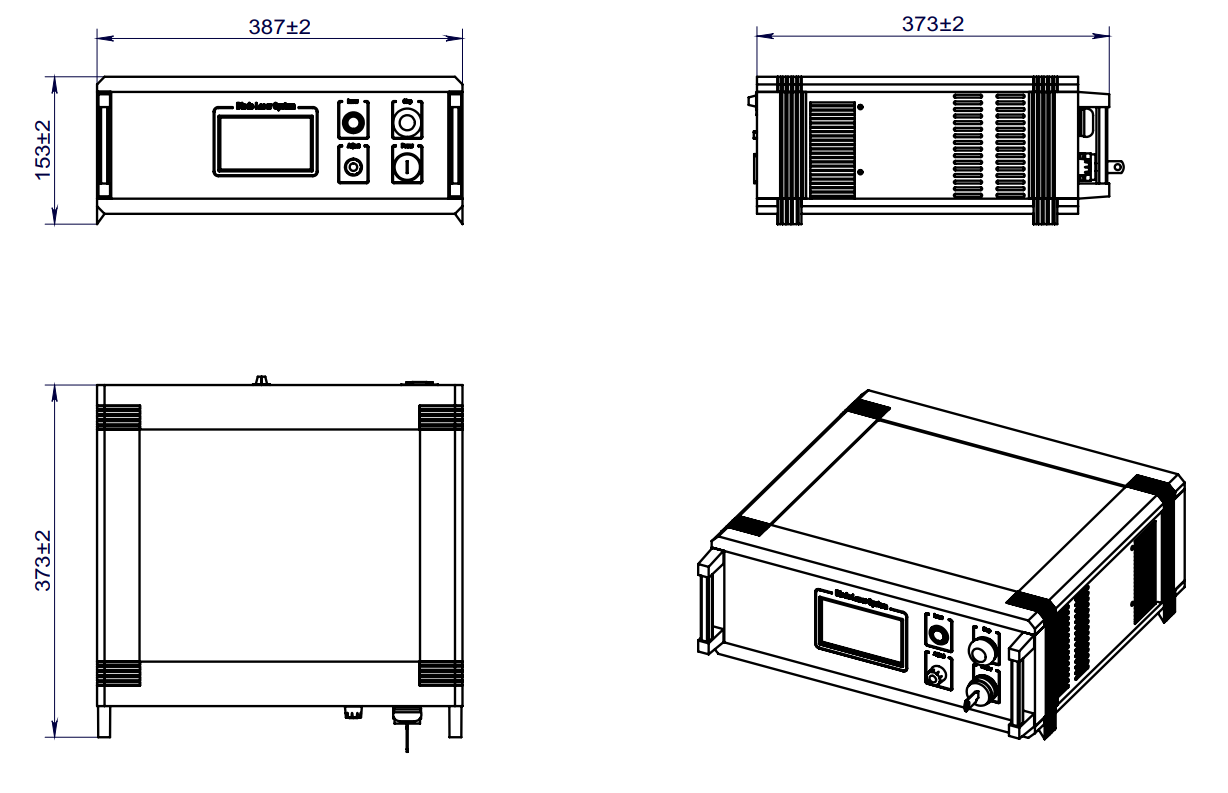

| Dimensions (L×W×H) (mm) | M size 387*373*153 |
| Weight (kg) | <10.2 |
| Cooling Method | 水冷 |
| Operating Ambient Temperature (℃) | 15-30 |
| Storage Temperature (℃) | 5-50 |
| Water Cooling Requirement | 水冷：温度20℃-25℃；快接头：2-Φ12进水 and 出水接口；循环水压力0.25MPa；循环水流量<7L/min |
| Relative Humidity (%) | 5-80 |
| Laser Safety Class | 4 (EN 60825-01) |
