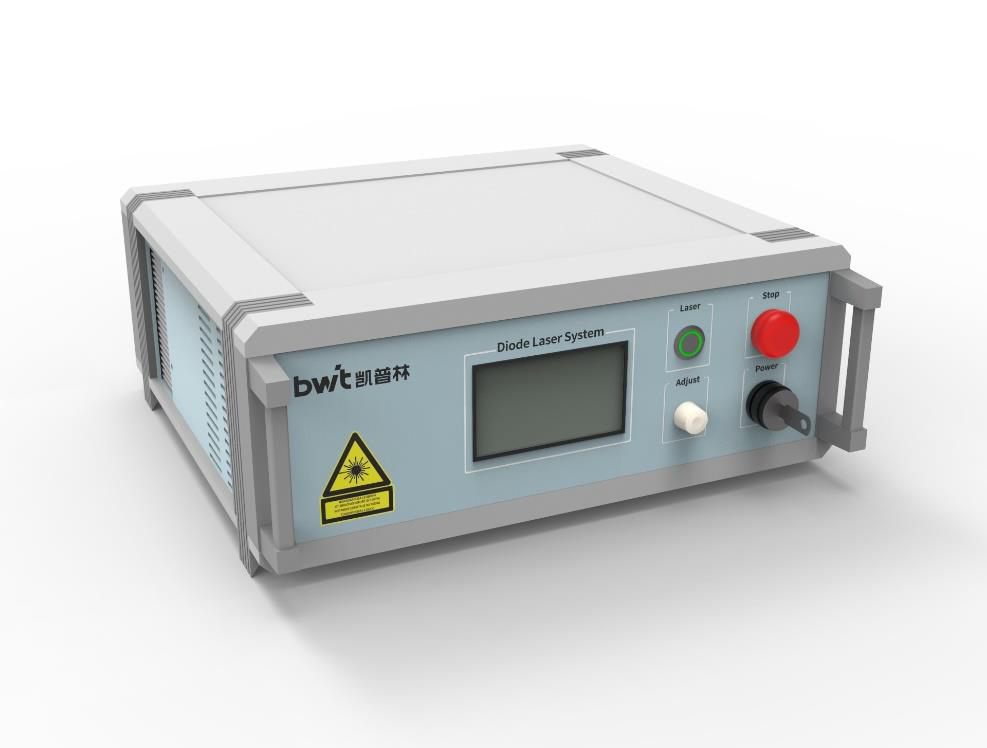

DS3 Semiconductor Laser System
The DS3 Semiconductor Laser System is a high-power, fiber-coupled diode laser system developed by BWT Beijing Ltd., a global leader in laser solutions founded in 2003. The system is available in 915nm and 976nm center wavelengths with output power options of 200W (DS3-51516-LD, air-cooled) and 300W (DS3-51514-LD, water-cooled). It delivers laser output through a 200μm core diameter fiber with 0.22 numerical aperture and SMA905 connector. Featuring constant current drive, the system supports CW, pulse and single-pulse working modes with flexible control via touch screen, RS232 and I/O interfaces. With a compact M-size chassis (387×373×153mm), excellent power stability of ±3% over 5 hours, and a built-in 635nm red pilot beam, the DS3 series provides a reliable, integrated laser source for industrial welding and processing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power (W) DS3-51514-LD | 300W |
| Center Wavelength (nm) DS3-51514-LD | 915/976 |
| Wavelength Range (nm) DS3-51514-LD | ±10/Customizednm |
| Spectral Width FWHM (nm) DS3-51514-LD | ≤6nm |
| Power Stability at 25℃ (%) DS3-51514-LD | ±3(5hours)% |
| Power Adjustment Range (%) DS3-51514-LD | 10-100% |
| Fiber Core Diameter (μm) DS3-51514-LD | 200μm |
| Numerical Aperture DS3-51514-LD | 0.22 |
| Fiber Length (m) DS3-51514-LD | 2/Customized |
| Connector DS3-51514-LD | SMA905/Customized |
| Input Voltage (V) DS3-51514-LD | 200~240(50-60Hz)/Customized |
| Power Consumption (W) DS3-51514-LD | <1000W |
| Drive Mode DS3-51514-LD | Constant current |
| Working Mode DS3-51514-LD | Continuous / pulsed / single pulse |
| Control Mode DS3-51514-LD | Touchscreen, RS232, I/O |
| Pulse Width DS3-51514-LD | 20 μs-950 ms (pulsed) / 20 μs-999 ms (single pulse) |
| Pulse Frequency (Hz) DS3-51514-LD | 1~20K (duty cycle >0.01%) |
| Current Rise/Fall Time (μs) DS3-51514-LD | ≤10 |
| Pilot Beam Wavelength (nm) DS3-51514-LD | 635±10nm |
| Pilot Beam Output Power (mW) DS3-51514-LD | ≤2mW |

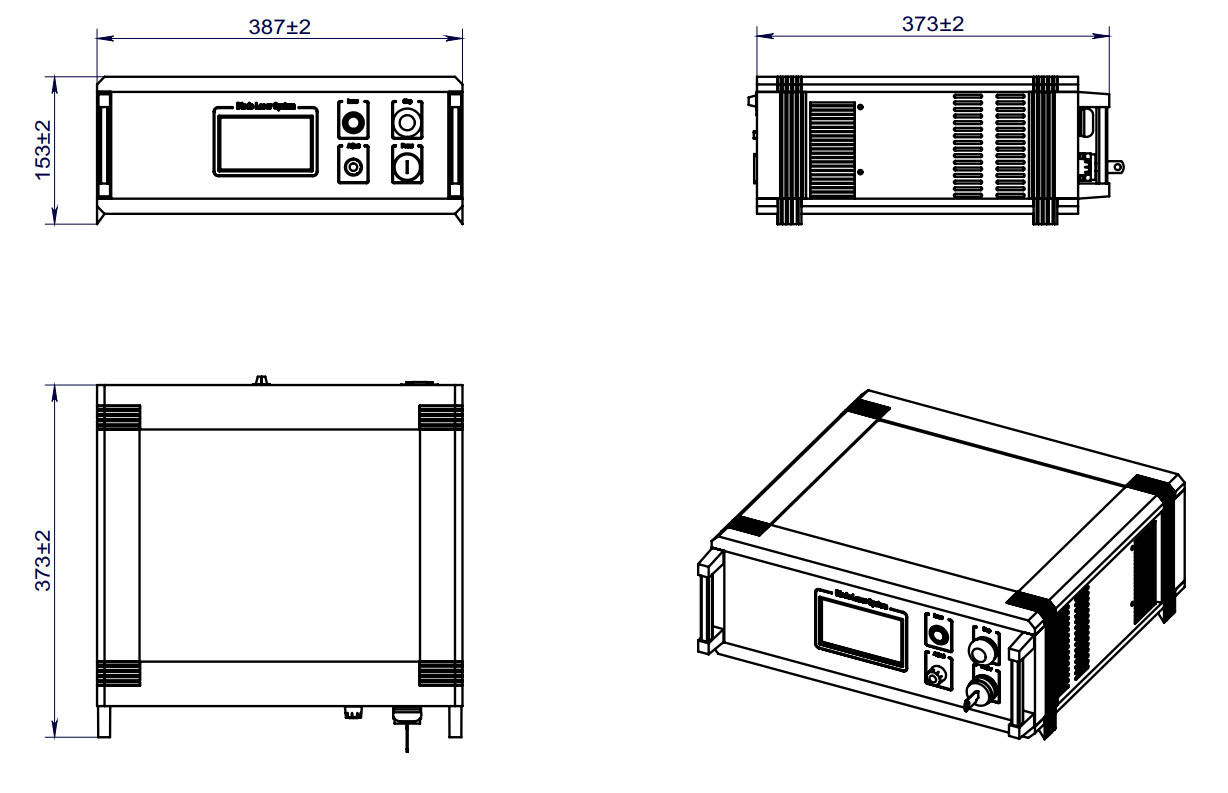

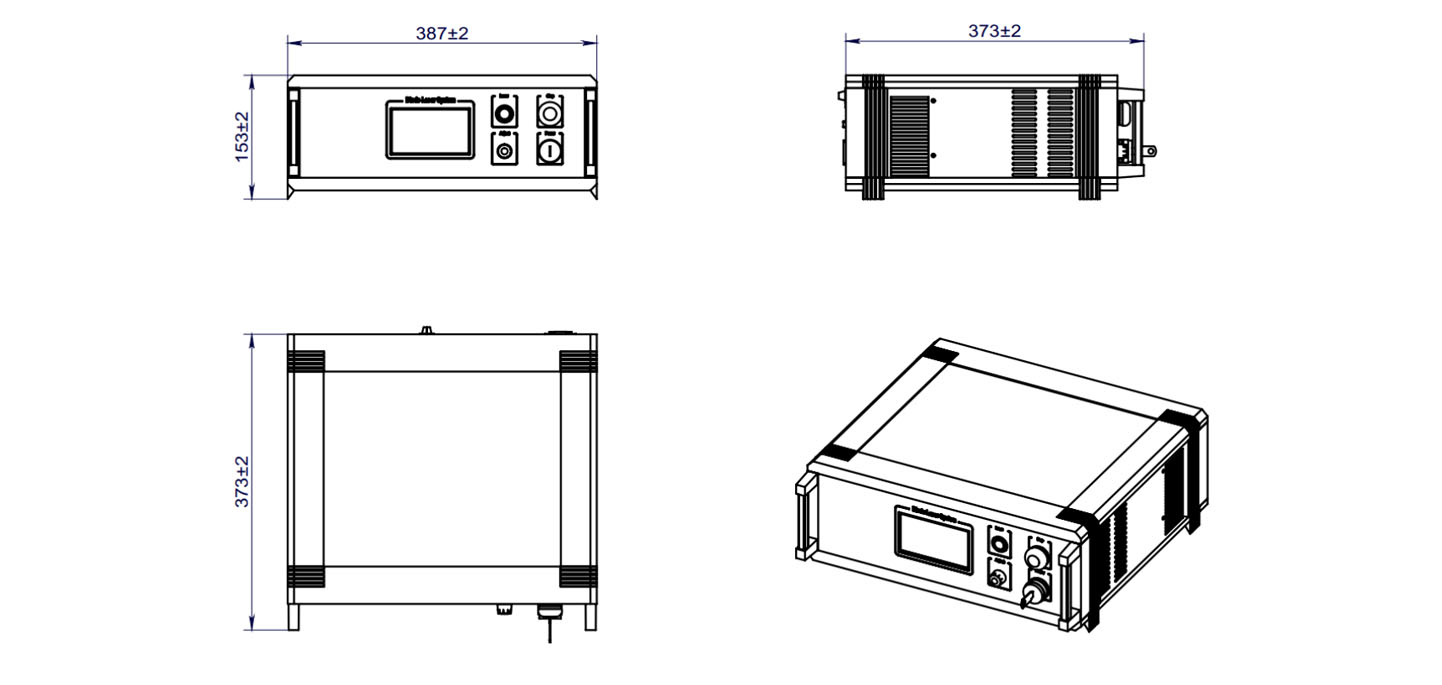

| Dimensions L×W×H (mm) DS3-51514-LD | M size 387*373*153 |
| Weight (kg) DS3-51514-LD | <10.2kg |
| Cooling Method DS3-51514-LD | Water cooling |
| Operating Temperature (°C) DS3-51514-LD | 15-30°C |
| Storage Temperature (°C) DS3-51514-LD | 5-50°C |
| Water Cooling Requirements DS3-51514-LD | Water temperature: 20 °C-25 °C; quick-connect inlet/outlet fittings: 2-φ12; circulating water pressure: 0.25 MPa; circulating water flow rate: <7 L/min |
| Relative Humidity (%) DS3-51514-LD | 5~80% |
| Laser Safety Class DS3-51514-LD | 4(EN60825-01) |
| Output Power (W) DS3-51516-LD | 200W |
| Center Wavelength (nm) DS3-51516-LD | 915/976 |
| Wavelength Range (nm) DS3-51516-LD | ±10/Customizednm |
| Spectral Width FWHM (nm) DS3-51516-LD | ≤6nm |
| Power Stability at 25℃ (%) DS3-51516-LD | ±3(5hours)% |
| Power Adjustment Range (%) DS3-51516-LD | 10~100% |
| Fiber Core Diameter (μm) DS3-51516-LD | 200μm |
| Numerical Aperture DS3-51516-LD | 0.22 |
| Fiber Length (m) DS3-51516-LD | 2/Customized |
| Connector DS3-51516-LD | SMA905/Customized |
| Input Voltage (V) DS3-51516-LD | 200~240(50-60Hz)/Customized |
| Power Consumption (W) DS3-51516-LD | <800W |
| Drive Mode DS3-51516-LD | Constant current |
| Working Mode DS3-51516-LD | Continuous / pulsed / single pulse |
| Control Mode DS3-51516-LD | Touchscreen, RS232, I/O |
| Pulse Width DS3-51516-LD | 20 μs-950 ms (pulsed) / 20 μs-999 ms (single pulse) |
| Pulse Frequency (Hz) DS3-51516-LD | 1~20K (duty cycle >0.01%) |
| Current Rise/Fall Time (μs) DS3-51516-LD | ≤10 |
| Pilot Beam Wavelength (nm) DS3-51516-LD | 635±10nm |
| Pilot Beam Output Power (mW) DS3-51516-LD | ≤2mW |
| Dimensions L×W×H (mm) DS3-51516-LD | M size 387*373*153 |
| Weight (kg) DS3-51516-LD | <10.2kg |
| Cooling Method DS3-51516-LD | Air cooling |
| Operating Temperature (°C) DS3-51516-LD | 15~30°C |
| Storage Temperature (°C) DS3-51516-LD | 5~50°C |
| Relative Humidity (%) DS3-51516-LD | 5~80% |
| Laser Safety Class DS3-51516-LD | 4(EN 60825-01) |
