K980F14CC-10.00W 980nm 10W Fiber-Coupled Diode Laser Module
The K980F14CC-10.00W is a high-power fiber-coupled semiconductor laser module that delivers a minimum of 10W continuous optical output at a center wavelength of 980±10nm through a 200μm core, 0.22NA multimode fiber terminated with a standard SMA905 connector. All typical specifications are measured at 25°C. Housed in a compact 14-pin gold-plated package (44.5×38.6×18.0mm), the module integrates a thermoelectric cooler (TEC), a 10KΩ thermistor, a monitor photodiode (PD) for real-time power feedback, fiber-detection LED/PD components, and a 635nm red aiming beam for easy alignment. With a high electro-optical efficiency of 48%, a low threshold current of 1.0A and a slope efficiency of 0.9W/A, it is a reliable and easy-to-integrate pump and direct-diode laser source.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model Number | K980F14CC-10.00W |
| Test Conditions | 10W@25°C |
| Output Power (W) | ≥10 |
| Center Wavelength (nm) | 980±10 |
| Wavelength Temperature Coefficient (nm/°C) | 0.3 |
| Electro-Optical Efficiency (%) | 48 |
| Threshold Current (A) | 1.0 |
| Operating Current (A) | ≤12.5 |
| Operating Voltage (V) | ≤2.0 |
| Slope Efficiency (W/A) | 0.9 |
| Fiber core diameter (μm) | 200 |
| Numerical Aperture (NA) | 0.22 |
| Fiber Connector | SMA905 |
| Connector End Face Protrusion | >1.2mm |
| Thermistor Resistance (KΩ@25°C) | 10±3% |
| Monitor PD Current (μA) | 100~2000 |
| TEC Max Current (A) | ≤6 |
| TEC Max Voltage (V) | ≤9.8 |
| ESD (V) | ≤500 |
| Storage Temperature (°C) | -20~70 |
| Soldering Temperature (°C) | ≤260 |
| Soldering Time (sec) | ≤10 |
| Operating Temperature (°C) | 15~35 |
| Relative Humidity (%) | 15~75 |
| Aiming Light Output Power (mW) | ≥2 |
| Aiming Light Center Wavelength (nm) | 635±10 |
| Aiming Light Voltage (V) | 5V（恒功）-2.6 |
| Package Dimensions (L×W×H) | 44.5×38.6×18.0mm |
| Number of Pins | 14 |
| Pin Pitch | 2.54mm |
| Pin Diameter | φ0.8mm/φ1.0mm |
| Mounting Hole Diameter | φ4.0mm |

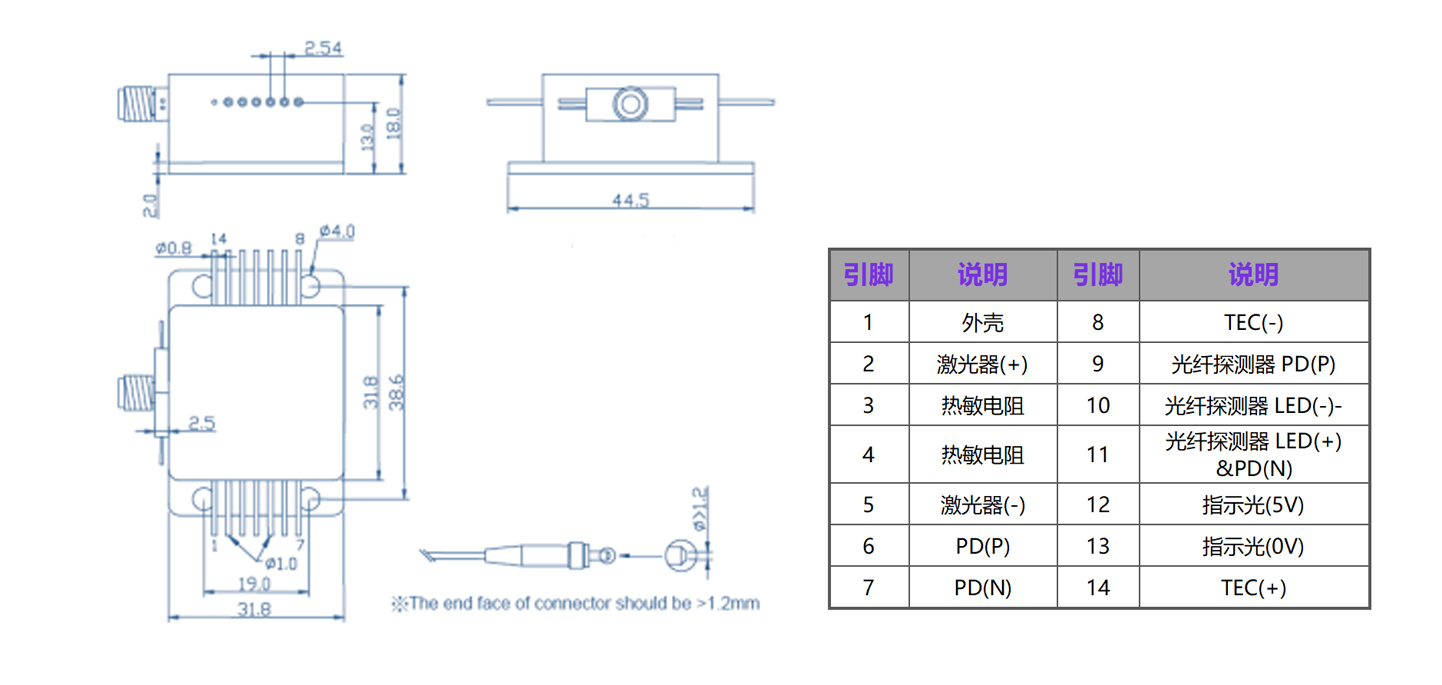

| Pin Assignment | Pin1:Case; Pin2:Laser(+); Pin3:Thermistor; Pin4:Thermistor; Pin5:Laser(-); Pin6:PD(P); Pin7:PD(N); Pin8:TEC(-); Pin9:Fiber Detector PD(P); Pin10:Fiber Detector LED(-); Pin11:Fiber Detector LED(+)&PD(N); Pin12:Aiming Light(5V); Pin13:Aiming Light(0V); Pin14:TEC(+) |
| Storage & Operating Condition Note | Non-condensing |
| Operating Temperature Note | Baseplate temperature, 15°C~35°C |
