K980F11CA-10.00W 980nm 10W Fiber Coupled Diode Laser

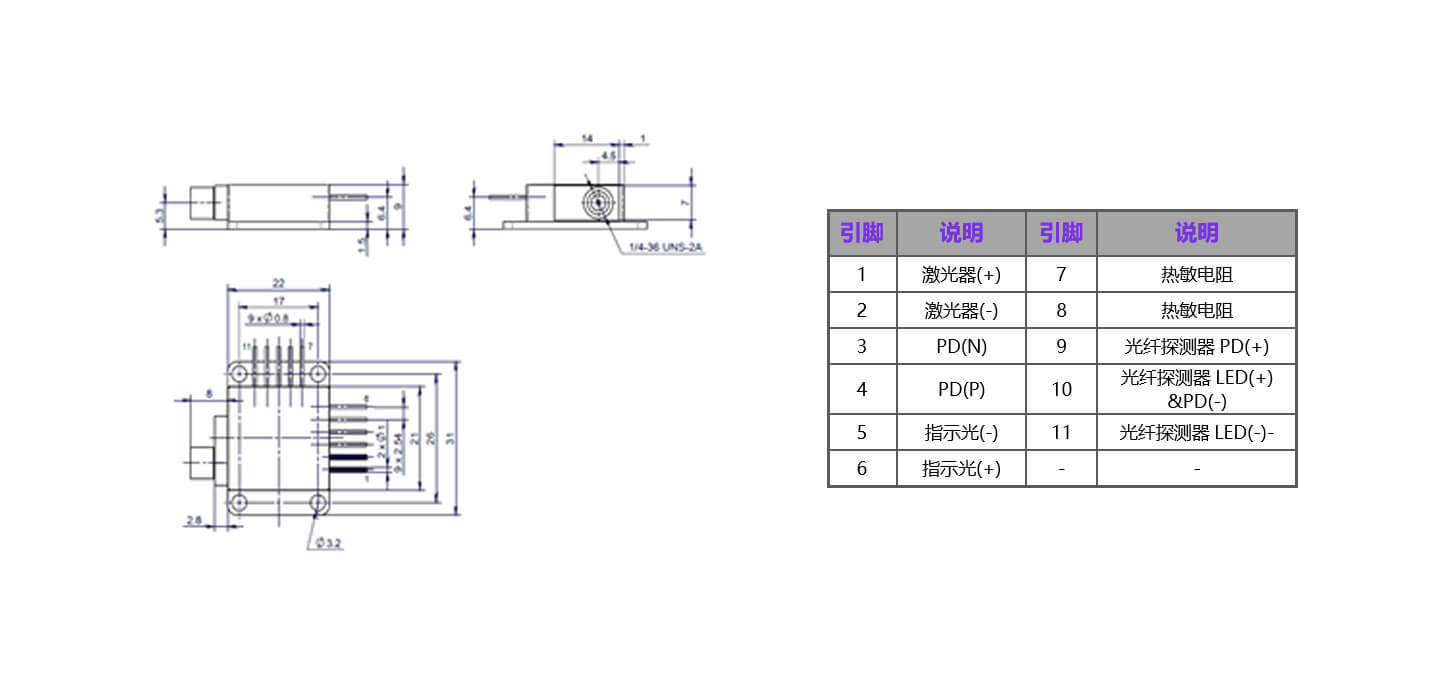

The K980F11CA-10.00W is a high-power 980nm fiber-coupled diode laser module that delivers a minimum of 10W continuous output power through a 200μm/0.22NA multimode optical fiber terminated with a standard SMA905 connector. The module integrates a 10KΩ thermistor for temperature monitoring, a monitor photodiode for output power feedback, and a built-in 635nm red aiming beam for easy alignment, all housed in a compact gold-plated package with an 11-pin electrical interface and mounting flanges for efficient heat dissipation. With a typical electro-optical conversion efficiency of 48%, a low threshold current of 0.7A and a slope efficiency of 0.9W/A, this laser provides stable, energy-efficient performance. All parameters are tested at 10W output power and 25℃, and the operating temperature refers to the base plate temperature (15℃~35℃). It is an ideal pump and direct-diode laser source for industrial, medical and scientific applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Temperature Coefficient | 0.3nm/℃ |
| Electro-optical Conversion Efficiency | 48% |
| Threshold Current | 0.7A |
| Fiber Core Diameter | 200μm |
| Fiber Connector | SMA905 |
| Thermistor Resistance | 10KΩ±3%@25℃ |
| Monitor PD Current | 100~2000μA |
| Electrostatic Discharge (ESD) | ≤500V |
| Storage Temperature | -20~70℃ |
| Soldering Temperature | ≤260℃ |
| Soldering Time | ≤10s |
| Pilot Beam Output Power | ≥2mW |
| Pilot Beam Center Wavelength | 635±10nm |
| Pilot Beam Voltage | ≤2.6V |
| Pilot Beam Current | 45~65mA |
| Pin Count | 11 |
