K976A02RN-3.000W 976nm 3W Fiber-Coupled Laser Diode Module

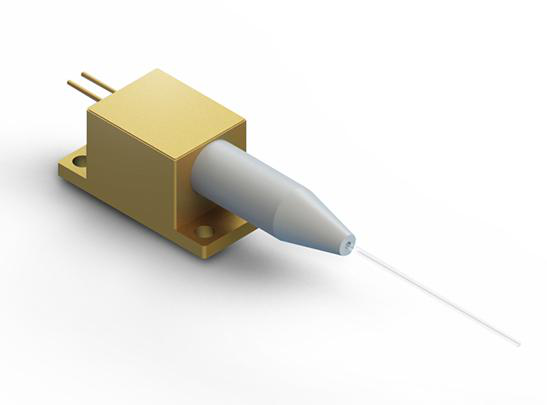

The K976A02RN-3.000W is a wavelength-stabilized 976nm fiber-coupled laser diode module delivering 3W continuous-wave output power. The laser light is coupled into a multimode fiber (105μm core, 125μm cladding, 0.22NA, 2m length, 0.9mm jacket) terminated with an FC bare ferrule. It features a narrow spectral width of 0.5nm FWHM (typ.) with 90% of the energy confined within 974.5nm~977.5nm, a high electro-optical conversion efficiency of 50% (typ.), and built-in back-reflection protection with 30dB isolation over the 1020nm~1200nm band. Housed in a compact gold-plated 2-pin package with mounting flanges, it is an ideal pump source for Yb-doped fiber lasers and amplifiers.
Save to Favorites
Overview
Specifications

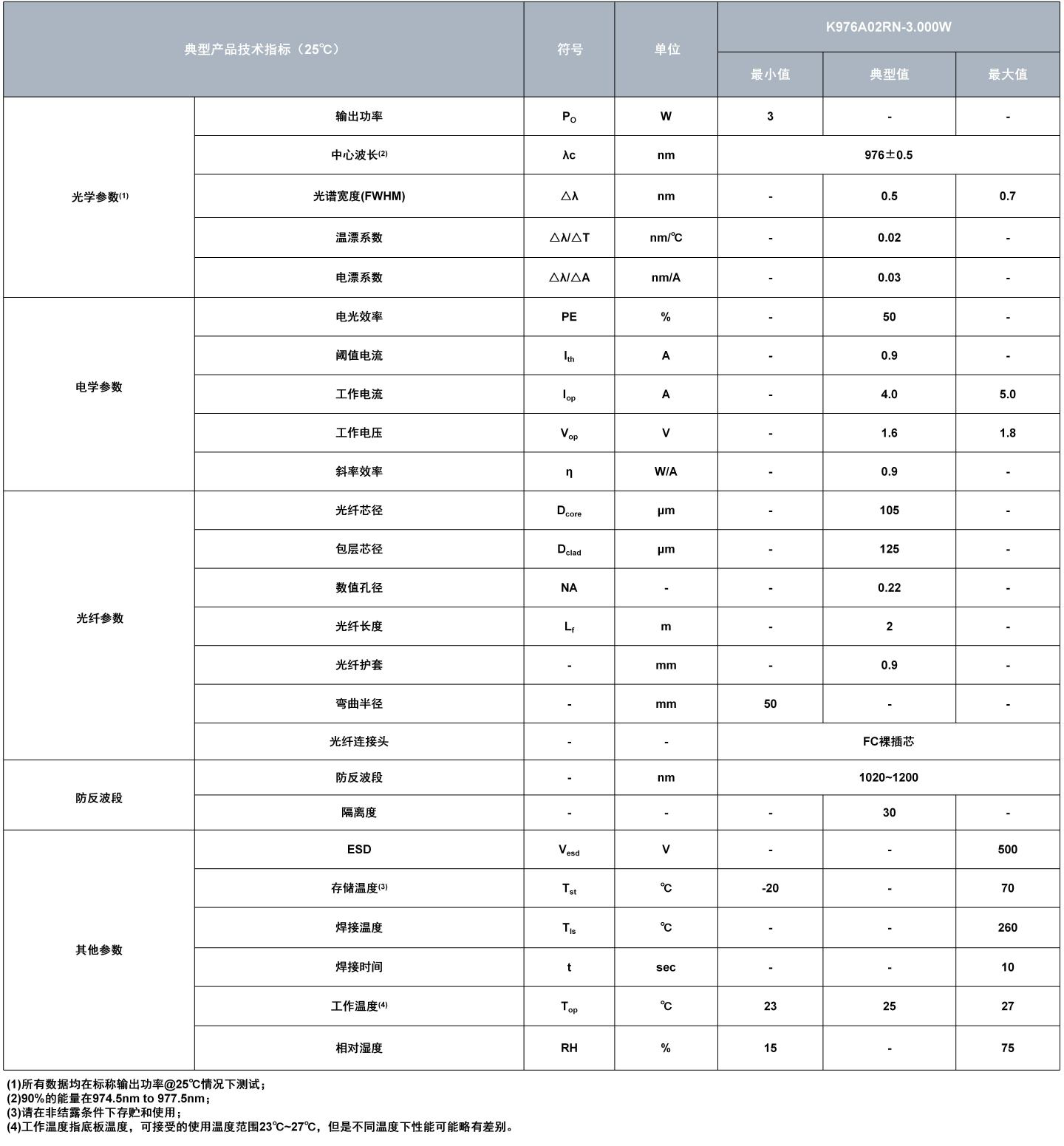

| Parameter | Value |
|---|---|
| Model | K976A02RN-3.000W |
| Test Temperature | 25°C |
| Output Power (Po) | ≥3W |
| Center Wavelength (λc) | 976±0.5nm |
| Spectral Width FWHM (Δλ) | 0.5nm(typ), 0.7nm(max) |
| 90% Energy Wavelength Range | 974.5nm~977.5nm |
| Temperature Drift Coefficient (Δλ/ΔT) | 0.02nm/°C(typ) |
| Current Drift Coefficient (Δλ/ΔA) | 0.03nm/A(typ) |
| Electro-Optical Conversion Efficiency (PE) | 50%(typ) |
| Threshold Current (Ith) | 0.9A(typ) |
| Operating Current (Iop) | 4.0A(typ), 5.0A(max) |
| Operating Voltage (Vop) | 1.6V(typ), 1.8V(max) |
| Slope Efficiency (η) | 0.9W/A(typ) |
| Fiber Core Diameter (Dcore) | 105μm |
| Cladding Diameter (Dclad) | 125μm |
| Numerical Aperture (NA) | 0.22 |
| Fiber Length (Lf) | 2m |
| Fiber Jacket | 0.9mm |
| Bend Radius | ≥50mm |
| Fiber Connector | FC裸插芯 |
| Anti-Reflection Band | 1020nm~1200nm |
| Isolation | 30(typ) |
| ESD (Vesd) | 500V(max) |
| Storage Temperature (Tst) | -20°C~70°C |
| Soldering Temperature (Tis) | 260°C(max) |
| Soldering Time (t) | 10s(max) |
| Operating Temperature (Top) | 23°C~27°C |
| Relative Humidity (RH) | 15%~75% |
| Pin 1 | 激光器(+) |
| Pin 2 | 激光器(-) |
| Pin Specification | 2×Φ1mm |
| Mounting Holes | 2×Φ2.6mm |
| Output Ferrule Diameter | Φ5.3mm |

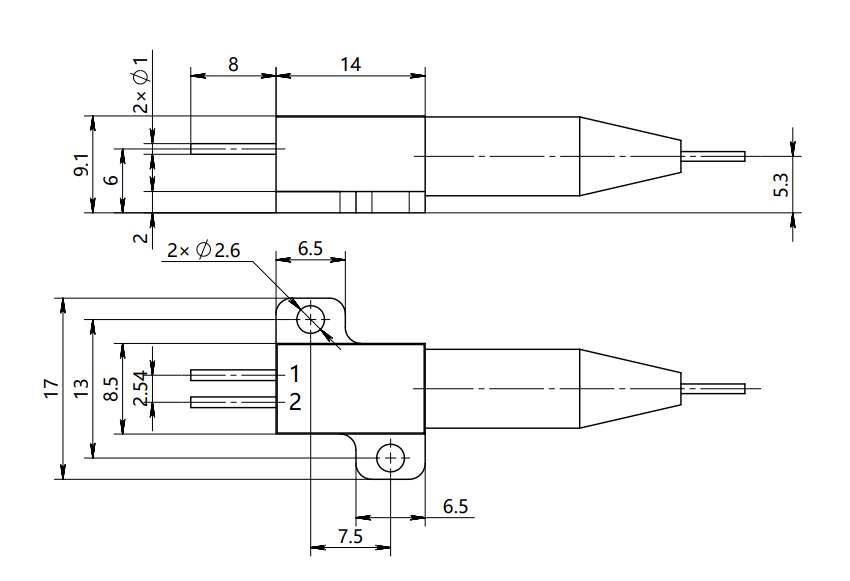

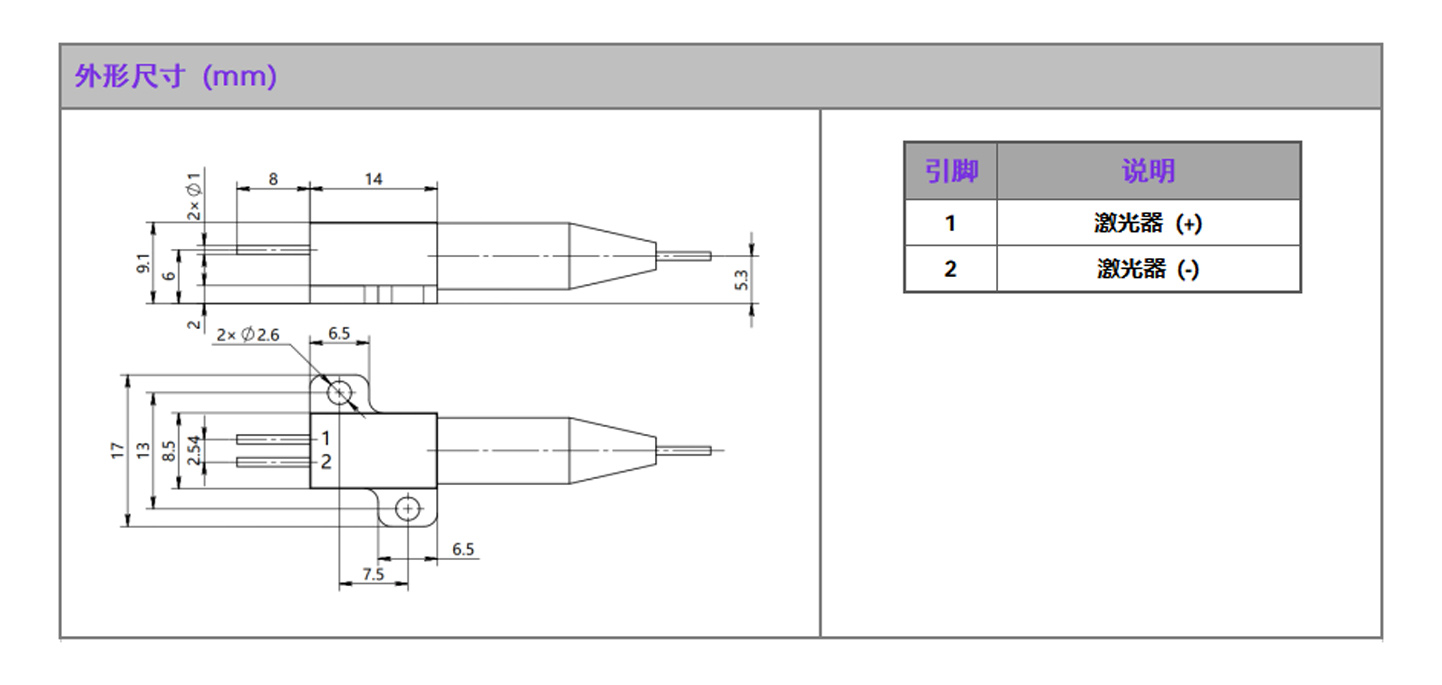

| Outline Dimensions | 17mm(W)×9.1mm(H) |
