888nm 170W 高功率稳波长半导体激光器 K888BL9RN-170.0W

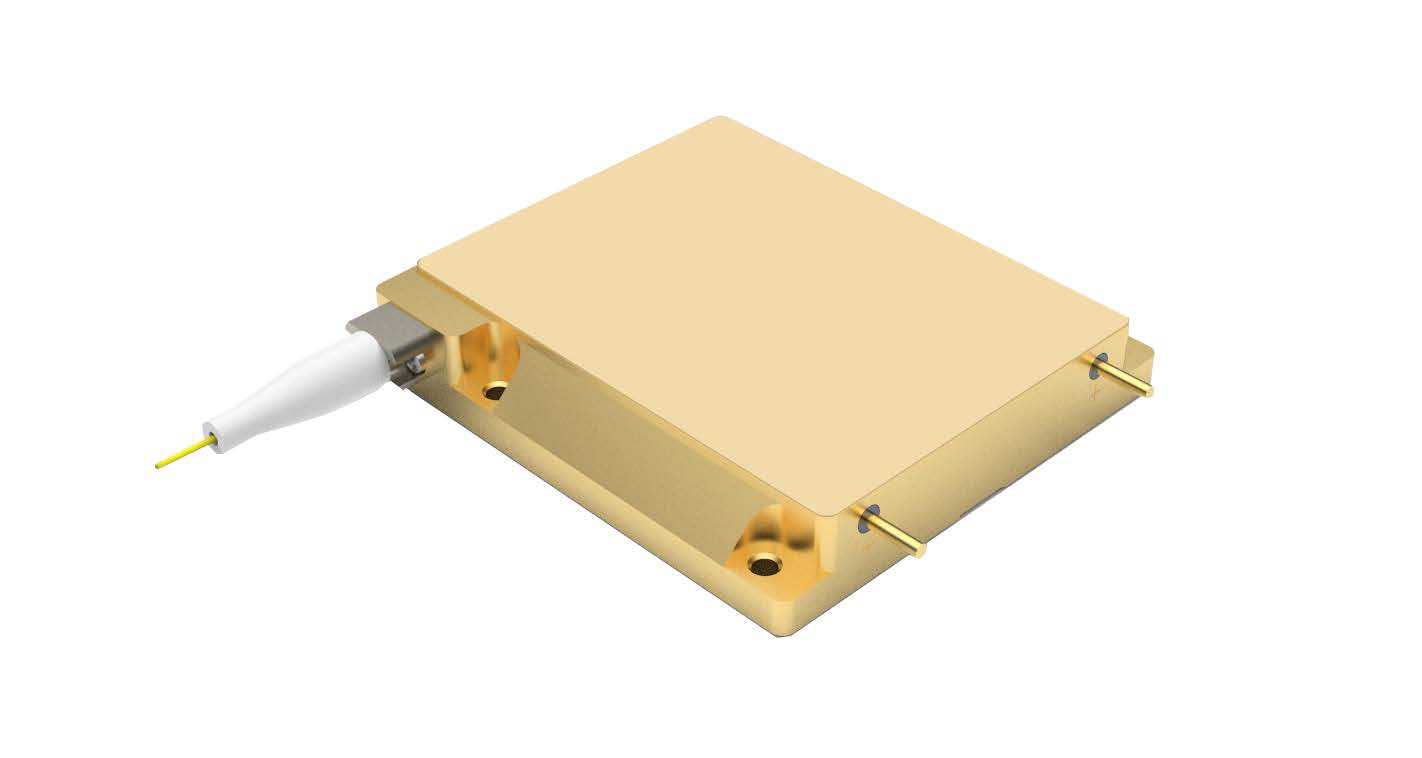

The K888BL9RN-170.0W is an 888nm 170W high power wavelength-stabilized semiconductor laser developed by BWT. It delivers 170W of fiber-coupled output power through a 200μm core / 220μm cladding fiber with 0.22NA and an HP-SMA905 connector. Featuring a narrow spectral width of 0.5nm (FWHM), a low temperature drift coefficient of 0.03nm/°C, a high electro-optical efficiency of 47%, and 1020~1200nm anti-reflection protection with 30dB isolation, the module is housed in a compact 80×76×15mm gold-plated package with a simple two-pin interface. It is an ideal pump source for solid-state lasers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power Po (W) | 170(Min.) |
| Center Wavelength λc (nm) | 888±1 |
| Spectral Width (FWHM) Δλ (nm) | 0.5 |
| Temperature Drift Coefficient Δλ/ΔT (nm/°C) | 0.03 |
| Brightness (95% Energy NA) | 0.17 |
| Electro-Optical Efficiency PE (%) | 47 |
| Threshold Current Ith (A) | 1.7 |
| Operating Current Iop (A) | 12.0(Typ.)/14.0(Max.) |
| Operating Voltage Vop (V) | 29.5(Typ.)/31.0(Max.) |
| Slope Efficiency η (W/A) | 15.5 |
| Fiber Core Diameter Dcore (μm) | 200 |
| Fiber Cladding Diameter Dclad (μm) | 220 |
| Numerical Aperture NA | 0.22 |
| Fiber Length Lf (m) | 2.0 |
| Fiber Jacket Diameter (mm) | 3.0 |
| Fiber Bending Radius (mm) | 88(Min.) |
| Fiber Connector | HP-SMA905 |
| Anti-Reflection Wavelength Band λ (nm) | 1020-1200 |
| Anti-Reflection Isolation (dB) | 30 |
| ESD Vesd (V) | 500(Max.) |
| Storage Temperature Tst (°C) | -20~70 |
| Soldering Temperature Tls (°C) | 260(Max.) |
| Soldering Time t (sec) | 10(Max.) |
| Operating Temperature (Base Plate) Top (°C) | 20~30 |
| Relative Humidity RH (%) | 15~75 |
| Test Conditions | 170W@25°C |

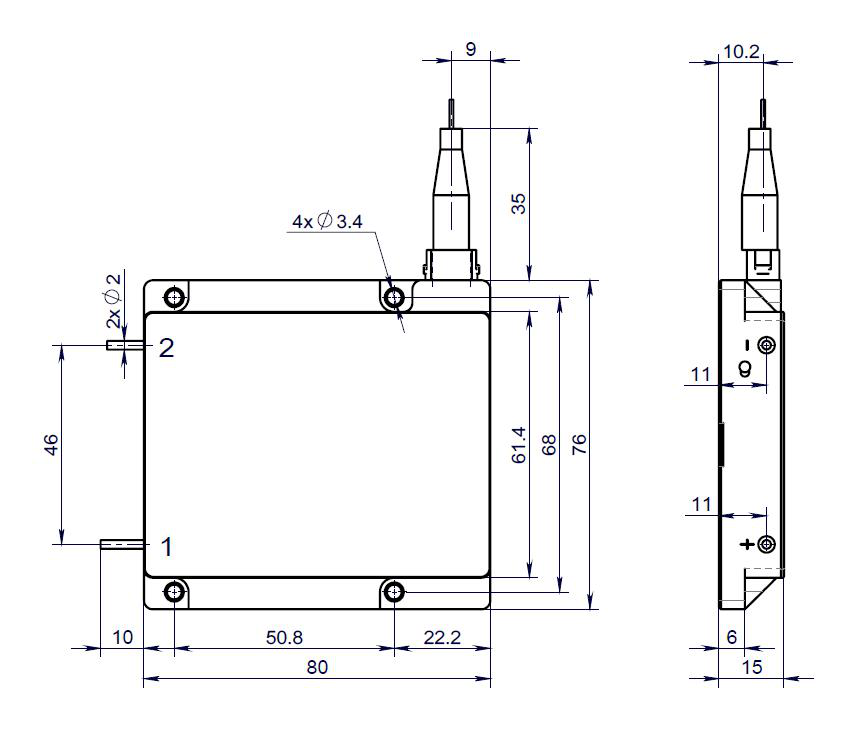

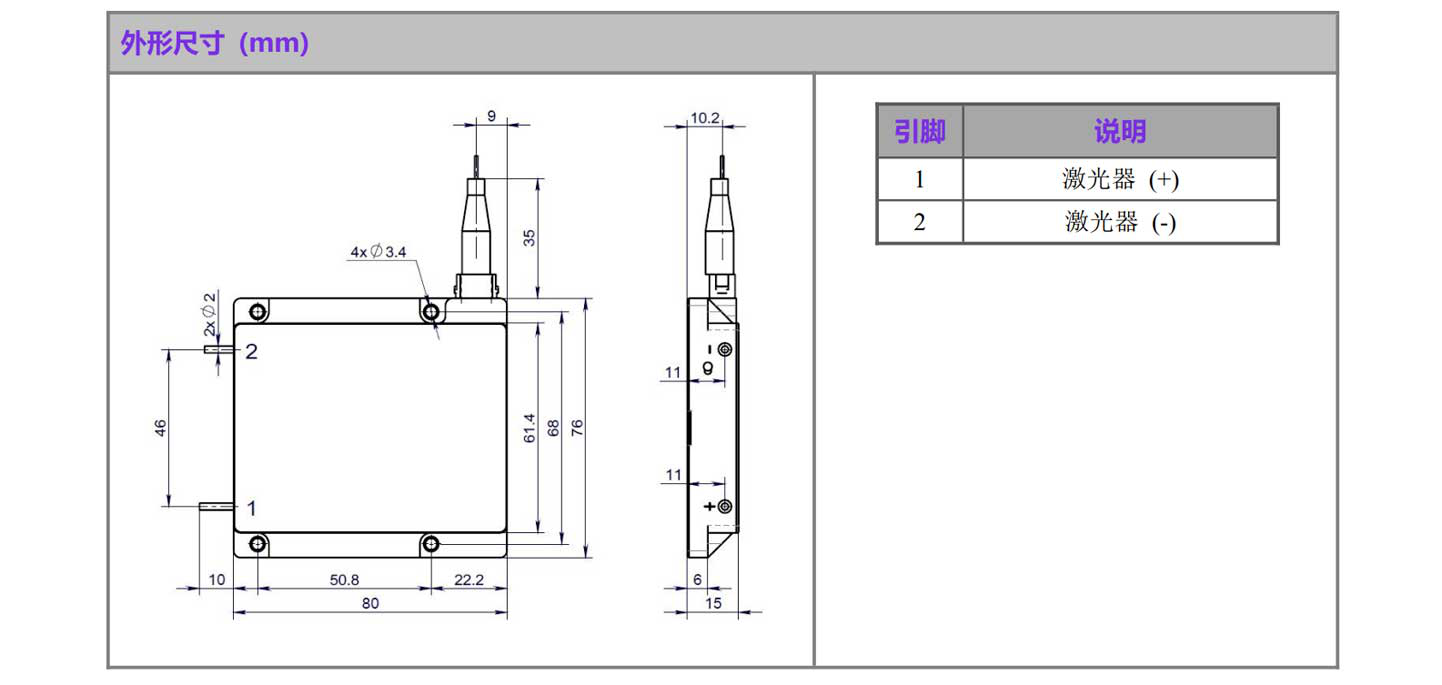

| Outline Dimensions (mm) | 80×76×15 |
| Mounting Holes (mm) | 4×Φ3.4 |
| Pins (mm) | 2×Φ2 |
| Pin 1 Definition | 激光器(+) Laser(+) |
| Pin 2 Definition | 激光器(-) Laser(-) |
