888nm 120W High Power Wavelength-Stabilized Semiconductor Laser K888BL9RN-120.0W

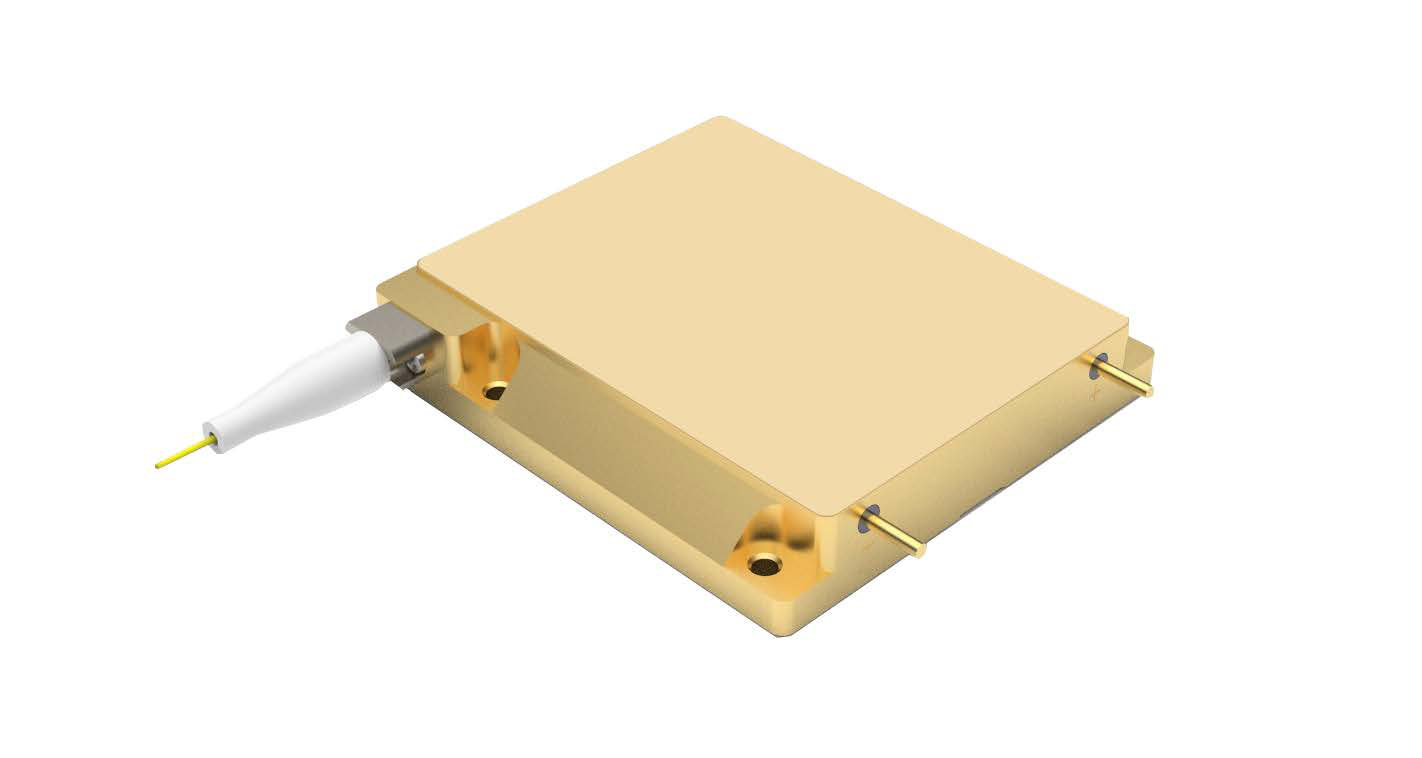

The K888BL9RN-120.0W from BWT is an 888nm, 120W high-power wavelength-stabilized fiber-coupled semiconductor laser. It delivers a minimum fiber output power of 120W with a tightly locked center wavelength of 888±1nm and a narrow spectral width (FWHM) of only 0.5nm, achieved through advanced wavelength stabilization technology. The laser couples its output into a 200μm core / 220μm cladding fiber with 0.22 numerical aperture, terminated with an HP-SMA905 connector, achieving a high brightness of 0.17 NA (95% energy). With a typical electro-optical efficiency of 50%, slope efficiency of 10.5W/A, and built-in anti-reflection protection over 1020nm~1200nm with 30dB isolation, the module offers excellent reliability against back-reflected light from solid-state gain media. Housed in a compact, conduction-cooled package (80mm×76mm×15mm) with 2-pin electrical connection, it is an ideal pump source for solid-state lasers.
Save to Favorites
Overview

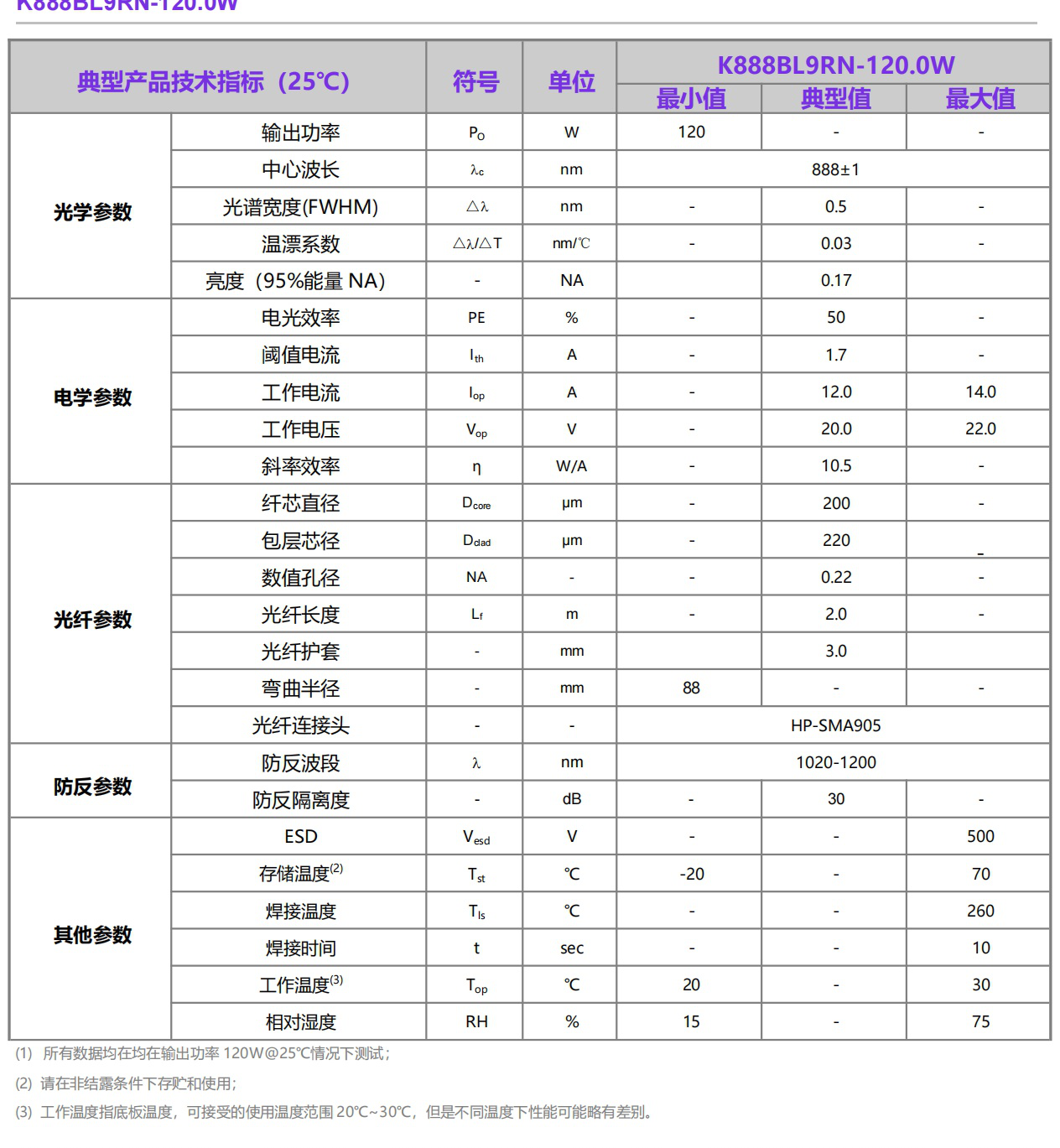

Specifications
| Parameter | Value |
|---|---|
| Spectral Width (FWHM) | 0.5nm |
| Wavelength Temperature Coefficient | 0.03nm/℃ |
| Brightness (95% Energy NA) | 0.17 |
| Threshold Current | 1.7A |
| Operating Current | 12.0A~14.0A |
| Operating Voltage | 20.0V~22.0V |
| Fiber Core Diameter | 200μm |
| Fiber Length | 2.0m |
| Fiber Jacket | 3.0mm |
| Bending Radius | 88mm |
| Fiber Connector | HP-SMA905 |
| Anti-Reflection Band | 1020nm~1200nm |
| Anti-reflection Isolation | 30dB |
| ESD | 500V |
| Soldering Temperature | 260℃ |
| Soldering Time | 10sec |

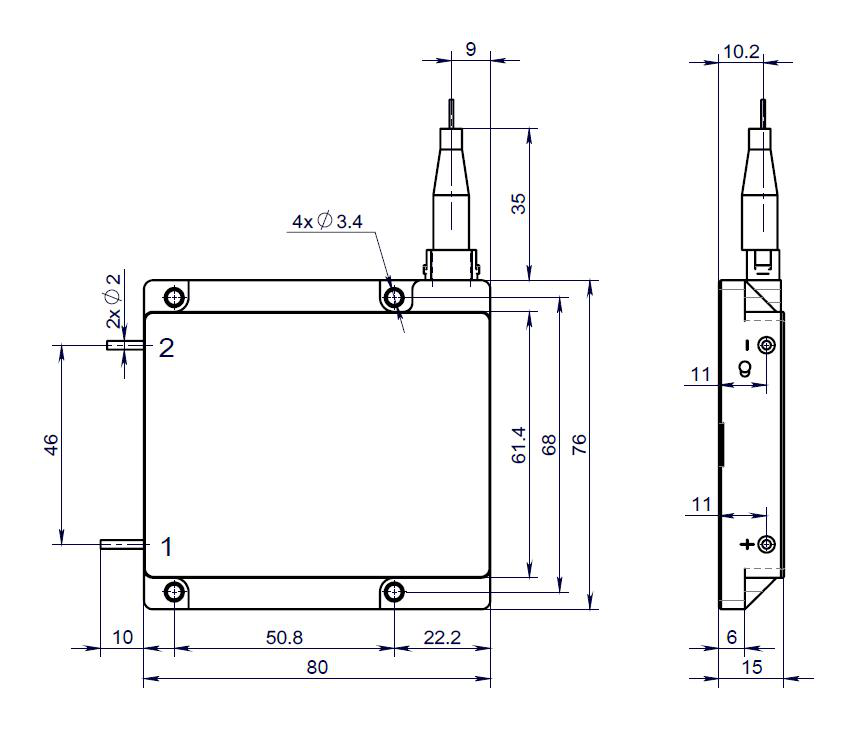

| Outline Dimensions | 80mm×76mm×15mm |
| Mounting Holes | 4×∅3.4mm |
| Fiber Output Height | 36mm |
| Pin 1 | Laser (+) |
| Pin 2 | Laser (-) |
