K878BL9RN-170.0W
The K878BL9RN-170.0W is an 878.6nm, 170W high-power wavelength-stabilized fiber-coupled diode laser module. It delivers a minimum of 170W continuous output power from a 200μm core, 0.22NA multimode fiber terminated with an HP-SMA905 connector. Wavelength locking ensures a narrow spectral width of 0.5nm (FWHM) and a low wavelength temperature drift of 0.03nm/℃, making it ideal for wavelength-sensitive pumping. The module offers up to 47% electro-optical conversion efficiency, integrated anti-reflection protection (1020-1200nm, 30dB isolation) against back-reflected light, and a compact 80×76×15mm package with a simple two-pin interface. All specifications are measured at 170W output power and 25℃ baseplate temperature under non-condensing conditions.
Save to Favorites
Overview

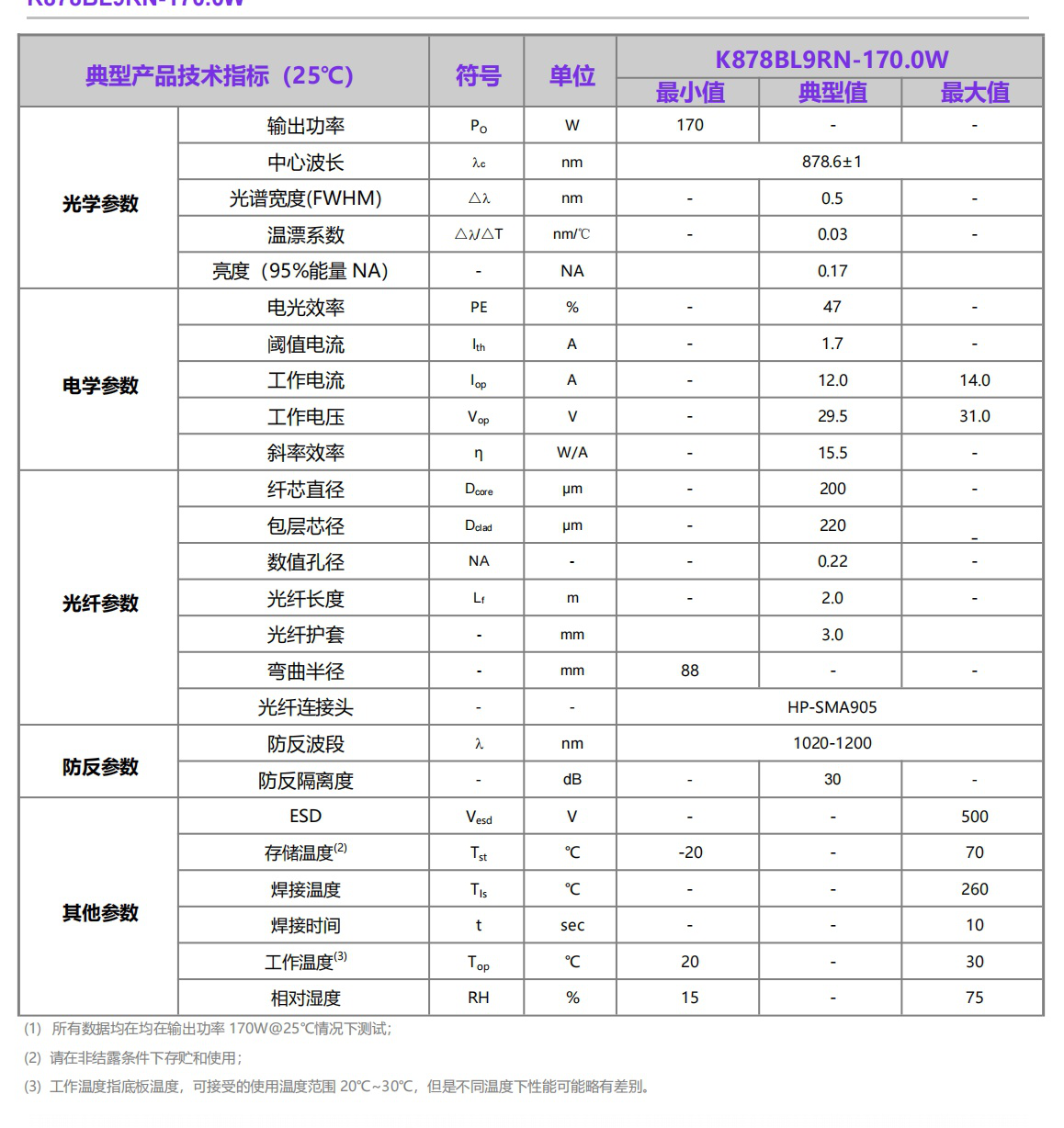

Specifications
| Parameter | Value |
|---|---|
| Wavelength Temperature Drift Coefficient | Typ:0.03nm/℃ |
| Brightness (95% Energy NA) | 0.17 |
| Fiber Core Diameter | 200μm |
| Fiber Cladding Diameter | 220μm |
| Fiber Length | 2.0m |
| Fiber Jacket Diameter | 3.0mm |
| Fiber Bend Radius | Min:88mm |
| Fiber Connector | HP-SMA905 |
| Anti-reflection Band | 1020-1200nm |
| Lead Soldering Temperature | Max:260℃ |
| Lead Soldering Time | Max:10sec |
| Operating Temperature (Baseplate) | 20℃~30℃ |
| Pin 1 | Laser (+) |
| Pin 2 | Laser (-) |
| Package Dimensions | 80mm×76mm×15mm |
