K878BL9RN-120.0W 878.6nm 120W High-Power Wavelength-Stabilized Semiconductor Laser

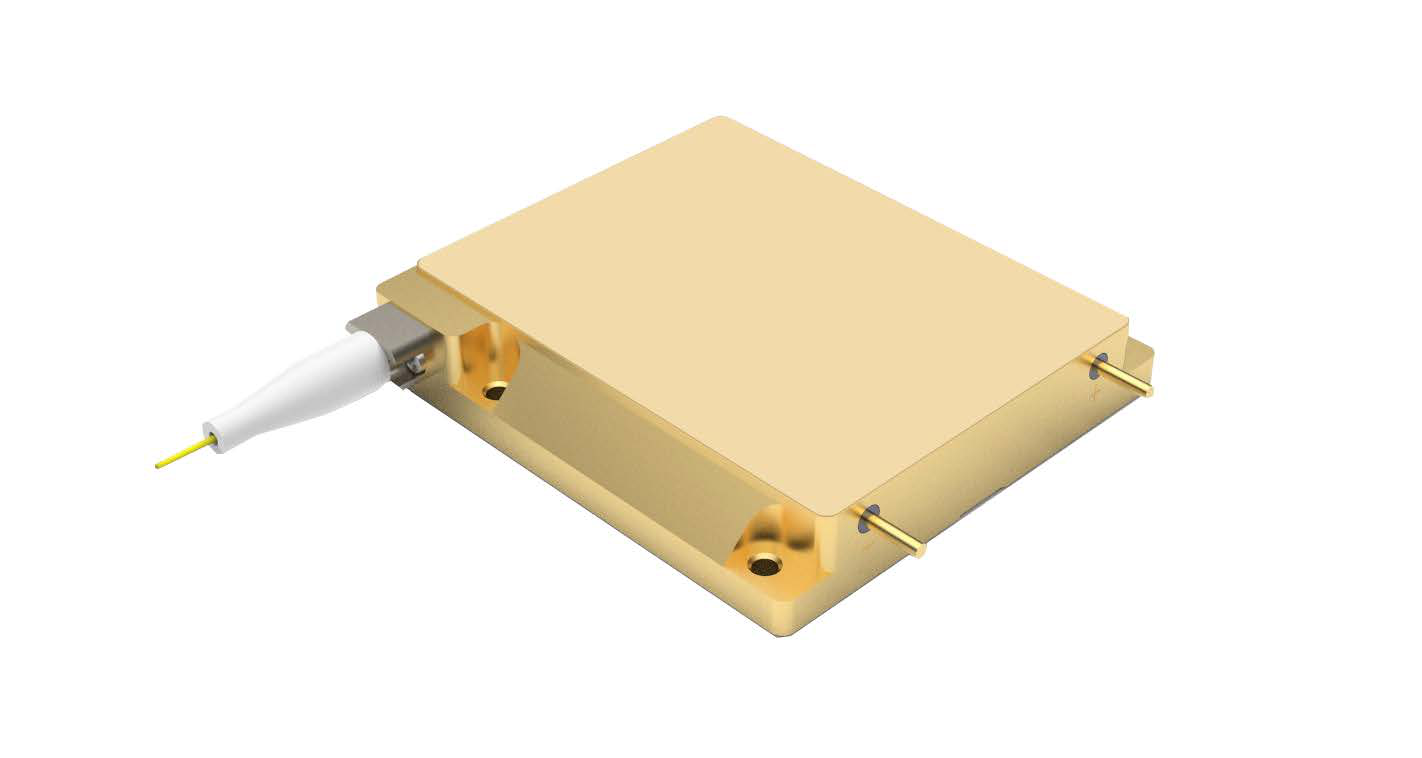

The K878BL9RN-120.0W is an 878.6nm, 120W high-power wavelength-stabilized fiber-coupled semiconductor laser diode module from BWT. It features a precisely locked center wavelength of 878.6±1nm, a narrow spectral width of 0.5nm (FWHM), an ultra-low wavelength temperature drift of 0.03nm/°C, and up to 50% electro-optical conversion efficiency. Laser output is delivered through a 200μm core / 0.22NA fiber with an HP-SMA905 connector, and built-in 1020-1200nm anti-reflection protection with 30dB isolation safeguards the diode against back-reflected light. With its compact 80×76×15mm package, the module is an ideal, reliable pump source for solid-state laser systems.
Save to Favorites
Overview

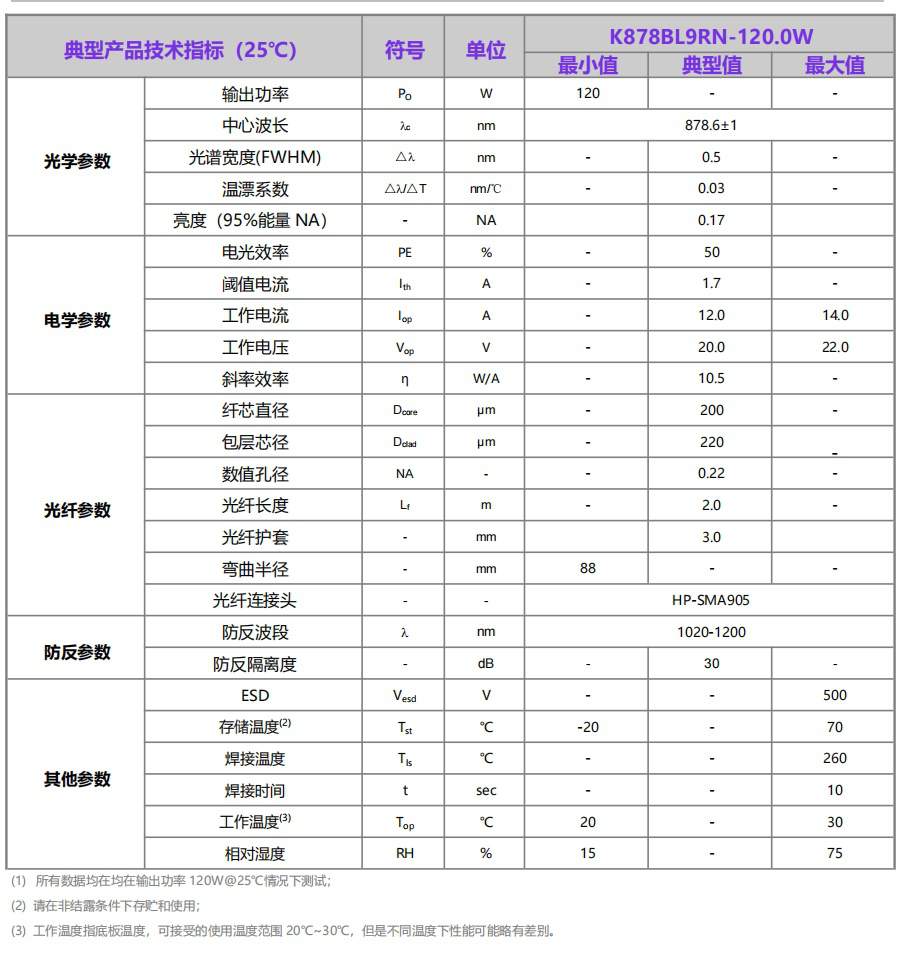

Specifications
| Parameter | Value |
|---|---|
| Output Power (W) | ≥120 |
| Center Wavelength (nm) | 878.6±1 |
| Spectral width (FWHM) (nm) | 0.5 |
| Wavelength Temperature Coefficient (nm/℃) | 0.03 |
| Brightness (95% Energy NA) | 0.17 |
| Electro-Optical Conversion Efficiency (%) | 50 |
| Threshold Current (A) | 1.7 |
| Operating Current (A) | Typ.12.0/Max.14.0 |
| Operating Voltage (V) | Typ.20.0/Max.22.0 |
| Slope Efficiency (W/A) | 10.5 |
| Fiber core diameter (μm) | 200 |
| Cladding Diameter (μm) | 220 |
| Numerical Aperture (NA) | 0.22 |
| Fiber Length (m) | 2.0 |
| Fiber Jacket (mm) | 3.0 |
| Bending Radius (mm) | ≥88 |
| Fiber Connector | HP-SMA905 |
| Anti-Reflection Wavelength Range (nm) | 1020-1200 |
| Anti-Reflection Isolation (dB) | 30 |
| ESD (V) | ≤500 |
| Storage Temperature (℃) | -20~+70 |
| Soldering Temperature (℃) | ≤260 |
| Soldering Time (s) | ≤10 |
| Operating Temperature (℃) | 20~30 |
| Relative Humidity (%) | 15~75 |

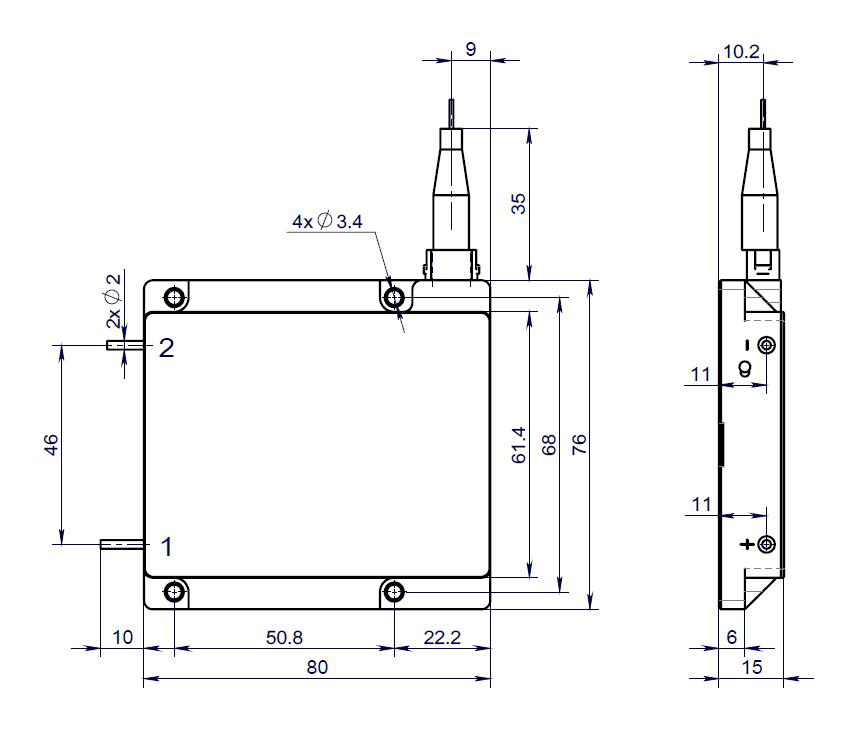

| Outline Dimensions (mm) | 80(L)×76(W)×15(H) |
| Mounting Holes (mm) | 4×∅3.4 |
| Pin 1 | 激光器(+)/Laser(+) |
| Pin 2 | 激光器(-)/Laser(-) |
| Test Condition | 120W@25℃ |
