830nm 2W Fiber-Coupled Semiconductor Laser (K830F02FN-2.000W)
The K830F02FN-2.000W is an 830nm 2W fiber-coupled semiconductor laser diode developed by BWT. It delivers a minimum of 2W output power coupled into a 50μm core multimode fiber with 0.14 numerical aperture and an ST connector. Featuring a typical electro-optical efficiency of 45%, a low threshold current of 0.2A and a slope efficiency of 1.0W/A, the device combines high efficiency with low power consumption. Its compact 2-pin gold-plated package with four φ2.6mm mounting holes ensures easy and reliable system integration. With a center wavelength of 830±10nm, 6nm spectral width and only 0.3nm/°C wavelength temperature drift, this laser diode provides stable near-infrared performance for demanding printing and scientific research applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Spectral Width (FWHM) | 6nm |
| Wavelength Temperature Coefficient | 0.3nm/°C |
| Threshold Current | 0.2A |
| Fiber Core Diameter | 50μm |
| Fiber Length | 0.5m |
| Fiber Jacket | 0.9mm PVC |
| Bending Radius | ≥50mm |
| Fiber Connector | ST |
| ESD | ≤500V |
| Storage Temperature | -20°C~70°C |
| Soldering Time | ≤10sec |
| Operating Temperature | 15°C~35°C |

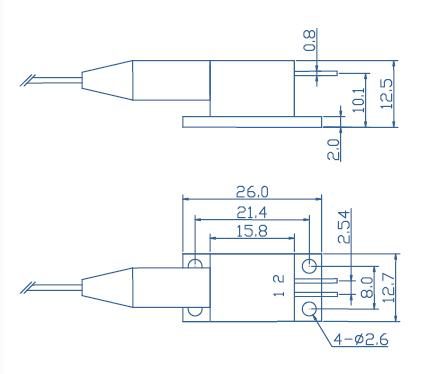

| Package Length | 26.0mm |
| Package Width | 12.7mm |
| Package Height | 12.5mm |
| Mounting Holes | 4-φ2.6mm |
| Pin Pitch | 2.54mm |
| Pin Diameter | 0.8mm |
| Pin 1 | Laser (+) |
| Pin 2 | Laser (-) |
