830nm 1W 光纤耦合半导体激光器 K830F02FN-1.000W
The K830F02FN-1.000W is an 830nm 1W fiber-coupled semiconductor laser developed by BWT (Beijing Kiplin Optoelectronics Technology Co., Ltd.). It couples the output of a high-efficiency semiconductor laser chip into a 50μm/125μm multimode optical fiber with a numerical aperture of 0.14, delivering 1W of fiber output power. The device adopts a compact 2-pin metal package with a mounting flange (4-φ2.6 holes), and is equipped with a 0.5m fiber protected by a 0.9mm PVC jacket and terminated with a standard ST connector. With a typical electro-optical efficiency of 40%, a low threshold current of 0.2A and a slope efficiency of 0.9W/A, it provides stable near-infrared output over a base plate operating temperature of 15°C to 35°C, making it an ideal laser source for printing and scientific research applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power (W) | ≥1 |
| Center Wavelength (nm) | 830±10 |
| Spectral Width FWHM (nm) | 6 |
| Wavelength Temperature Drift Coefficient (nm/°C) | 0.3 |
| Electro-Optical Efficiency (%) | 40 |
| Threshold Current (A) | 0.2 |
| Operating Current (A) | ≤1.5 |
| Operating Voltage (V) | ≤2.0 |
| Slope Efficiency (W/A) | 0.9 |
| Fiber core diameter (μm) | 50 |
| Fiber Cladding Diameter (μm) | 125 |
| Numerical Aperture (NA) | 0.14 |
| Fiber Length (m) | 0.5 |
| Fiber Jacket | 0.9mm PVC |
| Bending Radius (mm) | ≥50 |
| Fiber Connector | ST |
| ESD (V) | ≤500 |
| Storage Temperature (°C) | -20~70 |
| Soldering Temperature (°C) | ≤260 |
| Soldering Time (s) | ≤10 |
| Operating Temperature (°C) | 15~35 |
| Relative Humidity (%) | 15~75 |
| Pin 1 | 激光器(+) / Laser(+) |
| Pin 2 | 激光器(-) / Laser(-) |
| Pin Diameter (mm) | 0.8 |
| Pin Pitch (mm) | 2.54 |

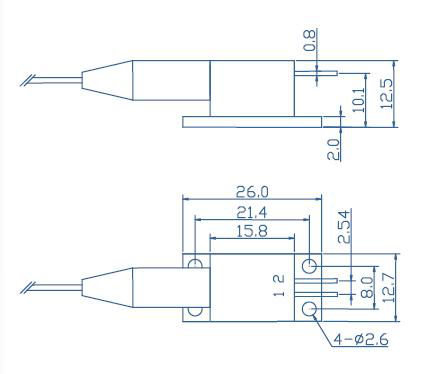

| Outline Dimensions (mm) | 26.0(L)×12.7(W)×12.5(H) |
| Mounting Holes (mm) | 4-φ2.6 |
| Test Conditions | 1W@25°C |
