K808F14CC-8.000W 808nm 8W Multi-function Detachable Fiber Output Semiconductor Laser

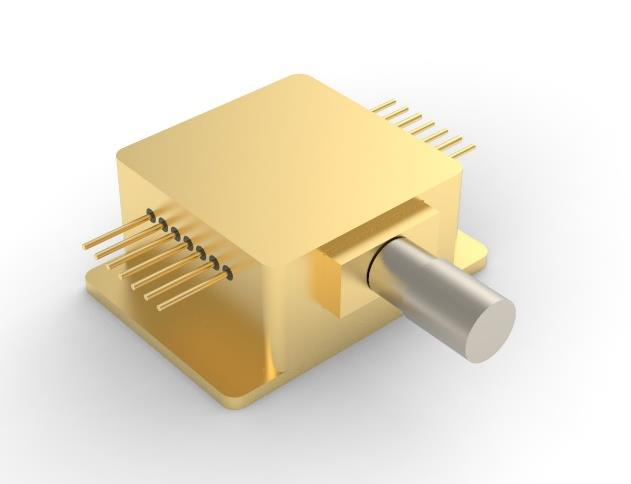

The K808F14CC-8.000W is a standard 808nm 8W multi-function semiconductor laser module with detachable fiber output, developed by BWT. It delivers 8W continuous output through a 400μm core, 0.22NA multimode fiber terminated with an SMA905 connector. In addition to the main laser, the module integrates a 635nm pilot light, fiber and output power monitoring (PD), a thermistor for temperature sensing, and a built-in TEC for precise temperature control. Housed in a compact 14-pin gold-plated package, it is designed for medical and OEM photonics systems requiring a stable, easy-to-integrate near-infrared laser source.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power (Po) | ≥8W |
| Center Wavelength (λc) | 808±10nm |
| Wavelength Temperature Coefficient (△λ/△T) | 0.3nm/°C |
| Electro-Optical Efficiency (PE) | 40% |
| Threshold Current (Ith) | 1.8A |
| Operating Current (Iop) | ≤11A |
| Operating Voltage (Vop) | ≤2.0V |
| Slope Efficiency (η) | 1.0W/A |
| Fiber Core Diameter (Dcore) | 400μm |
| Numerical Aperture (NA) | 0.22 |
| Fiber Connector | SMA905 |
| Thermistor Resistance (Rt @25°C) | 10±3%KΩ |
| Monitor PD Current (Imo) | 100~1000μA |
| TEC Max Current (Itec) | ≤6A |
| TEC Max Voltage (Vtec) | ≤9.8V |
| ESD Withstand Voltage (Vesd) | ≤500V |
| Storage Temperature (Tst) | -20~70°C |
| Soldering Temperature (Tls) | ≤260°C |
| Soldering Time (t) | ≤10sec |
| Operating Temperature (Top) | 15~35°C |
| Relative Humidity (RH) | 15~75% |
| Pilot Light Output Power (Pa) | ≥2mW |
| Pilot Light Center Wavelength (λa) | 635±10nm |
| Pilot Light Voltage (Va) | 5V(Constant Power) |
| Pin 1 | 外壳/Case |
| Pin 2 | 激光器(+)/Laser Diode(+) |
| Pin 3 | 热敏电阻/Thermistor |
| Pin 4 | 热敏电阻/Thermistor |
| Pin 5 | 激光器(-)/Laser Diode(-) |
| Pin 6 | PD(P)/Monitor PD(P) |
| Pin 7 | PD(N)/Monitor PD(N) |
| Pin 8 | TEC(-) |
| Pin 9 | 光纤探测器 PD(P)/Fiber Detector PD(P) |
| Pin 10 | 光纤探测器 LED(-)/Fiber Detector LED(-) |
| Pin 11 | 光纤探测器 LED(+)&PD(N)/Fiber Detector LED(+)&PD(N) |
| Pin 12 | 指示光(5V)/Pilot Light(5V) |
| Pin 13 | 指示光(0V)/Pilot Light(0V) |
| Pin 14 | TEC(+) |

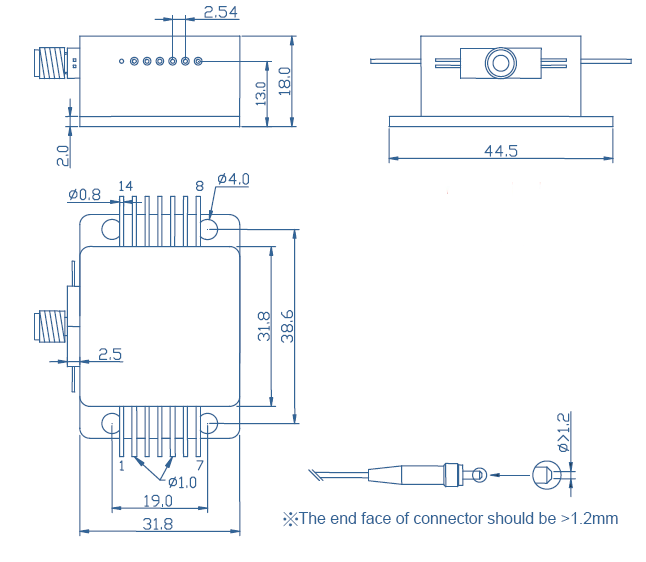

| Outline Dimensions | 44.5×38.6×18.0mm |
| Connector End Face | >1.2mm |
